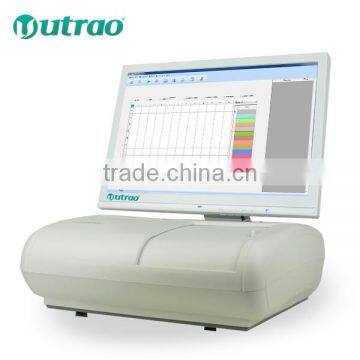

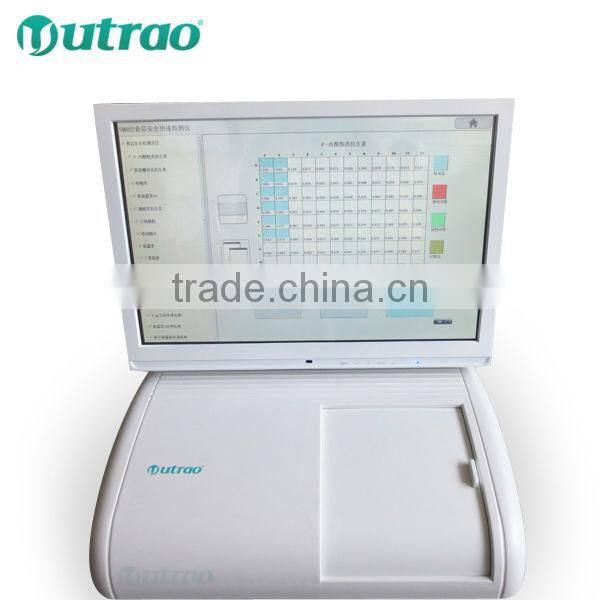

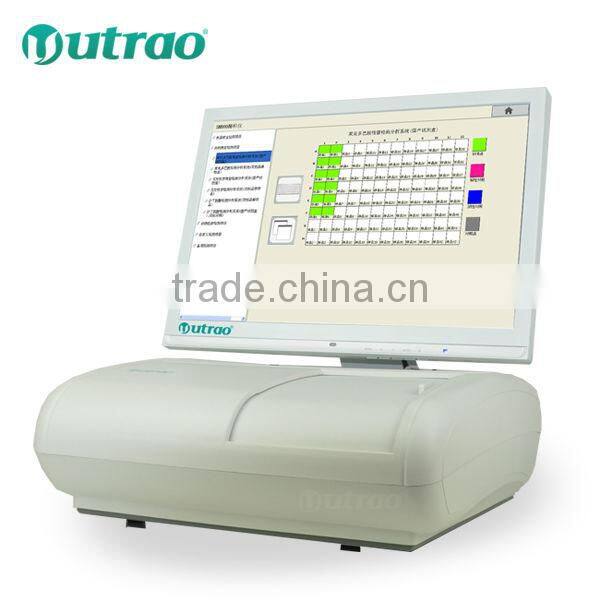

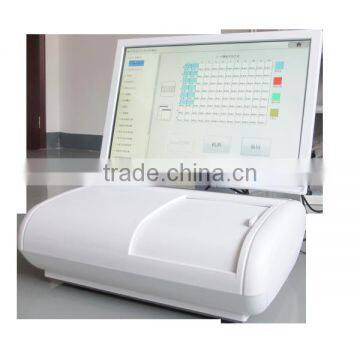

SM800 Elisa Plate Reader Machine

Name: SM800 Elisa Plate Reader Machine
Brand: Utrao
SKU: 141140772
Availability: InStock

Shanghai Utrao Medical Instrument Co., Ltd.

US$ 1 - 5,000 MOQ: 1 Set

Key Specifications

Brand Name:

Utrao

Model Number:

SM800

Place of Origin:

Shanghai, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Utrao

Model Number SM800

Place of Origin Shanghai, China

SM800 elisa plate Reader machine

Main Features

Multiple measurement modes and analysis methods
Flexible and high performance measurement
Ease of data management and storage through PC

MicroPlate Reader SM800 Technical Parameters

Display	18.5' LCD Touch screen
Computer Connector	RS232 9 needle
Network interference	Windows 7
Network port	RJ45
USB port	2
Memory	Support CF card,hard disc 320G,max support 1T for selection
Built-in interface card	Industrial control board
Software	more data processing methods
	Test results unlimited storage
	automatic judge whether sample is qualified
Printer	external USB printer is appliable
Suitable Micro plate Type	96 wells, Flat bottom, U bottom, V bottom
Shake	3 kind of intensity, can fit the exact time
Light Source	Tungsten Halogen lamp, lamp saver function, 12V,20W
Wavelength range	400-750nm
Optical sensor	8 photodiode
Standard filters	405,450,492,630nm standard filter
Optional filters	4 free positions for optional filters
Reading speed	single wavelength<5sec/single, Duble wavelength<10sec
Absorbance range	0.000 - 3.500 Abs
Resolution	0.001 Abs
stability	±0.003 Abs
accuracy	ΔA≤±0.01(0≤A<1.0);
	≤2.5%(A≥1.0);
Sensitivity	≥0.01 Abs
Repeatability	≤0.2% (0≤A≤1.5Abs);
	≤1.0% (A>1.5Abs);
8 Channel differences	≤0.02
Linearity	≥0.999
Volt	AC 100-240V, 50Hz/60Hz
Working temperature	10°C—30°C
Working humidity	≤ 85%
Storage temperature	0°C—55°C
Storage humidity	≤ 95%
Operation language:	English
