Home > Products > ELISA Instruments > Microplate reader for detection SM600

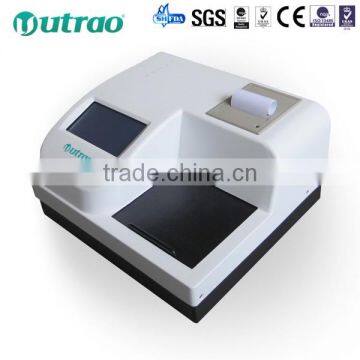

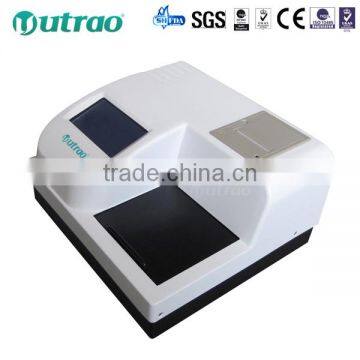

Microplate reader for detection SM600
- 500 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
Product Details
Brand Name: | Utrao | Model Number: | SM600 |
Place of Origin: | Shanghai, China |
Product Description
Portable elisa microplate reader SM600
Features:
1. Biochromatic optic system with 4 wavelengths
2. Touch screen. Easy to use
3. Compatible with various micro plate such as flat plate, U plate and V plate etc.
4. Automatic calibration, plus efficient alarm function
5. Quick testing, user friendly, reliable
6. Various testing method which support qualitative test, quantitative test, grade test and kinetic quantitative test.
7. Multi standard calibration, able to choose different
8. Formula such as linearity, quadratic curve, power
9. Function curve, exponential function curve, logarithmic
10. Function, cubic spline curve.
11. Several blank modes can be selected
12. Plate shake function can be adjusted
13. Compact design, with internal thermal printer
SM600 Technical Parameters | |
Display | 240×128 LCD (Touch screen) |
Computer Interface | RS232 9 needle |
Applicable Plates | 96 wells, “Flat” ,“ U ”,“ V ”bottom |
Shake | 3 kinds of intensity( Low, Medium, High) |
Memory | 200 programs, 1000 plates result |
Light Source | Tungsten Halogen lamp, lamp saver function, 12V,20W |
Wavelength Range | 400nm to 750nm |
Optical Sensor | 8 photodiode |
Optional Filters | Interference filter 405,450,492,630nm |
Reading Speed | Single wavelength 6 sec, Double wavelength 10 set |
Absorbance range | 0.000 to 3.500 ABS |
Resolution | 0.001 ABS |
Absorbance stability | ±0.003 Abs |
Accuracy | ΔA≤±0.01 Abs(0≤A<1.0 Abs); ≤2.5%(1.0 Abs≤A≤2.5 Abs); |
Sensitivity | ≥0.01 |
Repeatability difference | ≤0.2%(0≤A≤1.5 Abs); ≤1.0%(1.5 Abs <A≤2.5 Abs); |
Channel difference | ≤0.02 Abs |
Linearity | ≥0.999 |
Internal printer | 58mm thermal printer |
Voltage | AC 220V, 50Hz |
Power | 90 VA |
Size | 318*286*168mm |
Weight | 6.5Kg |
Working temperature | 10°C—30°C |
Working humidity | ≤ 85% |
Storage temperature | 0°C—55°C |
Storage humidity | ≤ 95% |
Option language | English |
PCSoftware | optional accessories |
