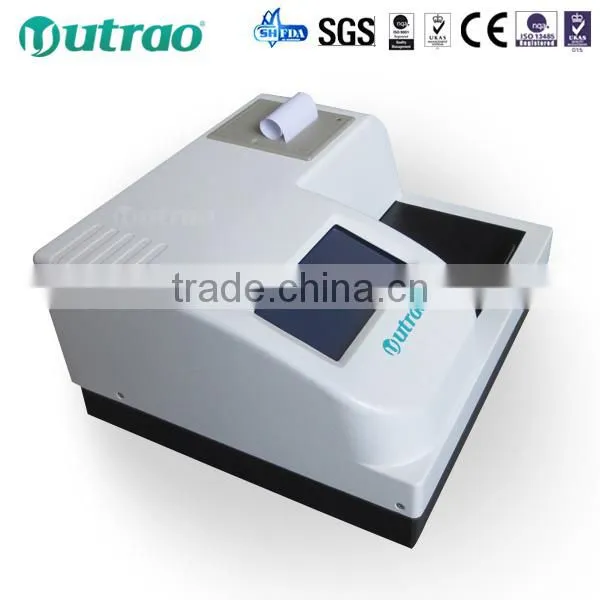

Utrao SM600 Desktop Microtiter Plate

Name: Utrao SM600 Desktop Microtiter Plate
Brand: Utrao
SKU: 141140694
Availability: InStock

Shanghai Utrao Medical Instrument Co., Ltd.

US$ 3,000 - 3,000 MOQ: 1 Set

Key Specifications

Type:

Bacteria Analysis System, Biochemical Analysis system, medical/laboratory etc.

Brand Name:

Utrao

Model Number:

SM600

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Utrao

Model Number SM600

Place of Origin Shanghai, China

Utrao SM600 desktop microtiter plate

Product Description

Features:

1. Biochromatic optic system with 4 wavelengths

2. Touch screen. Easy to use

3. Compatible with various micro plate such as flat plate, U plate and V plate etc.

4. Automatic calibration, plus efficient alarm function

5. Quick testing, user friendly, reliable

6. Various testing method which support qualitative test, quantitative test, grade test and kinetic quantitative test.

7. Multi standard calibration, able to choose different

8. Formula such as linearity, quadratic curve, power

9. Function curve, exponential function curve, logarithmic

10. Function, cubic spline curve.

11. Several blank modes can be selected

12. Plate shake function can be adjusted

13. Compact design, with internal thermal printer

SM600 Technical Parameters
Display	240×128 LCD (Touch screen)
Computer Interface	RS232 9 needle
Applicable Plates	96 wells, “Flat” ,“ U ”,“ V ”bottom
Shake	3 kinds of intensity( Low, Medium, High)
Memory	200 programs, 1000 plates result
Light Source	Tungsten Halogen lamp, lamp saver function, 12V,20W
Wavelength Range	400nm to 750nm
Optical Sensor	8 photodiode
Optional Filters	Interference filter 405,450,492,630nm
Reading Speed	Single wavelength 6 sec, Double wavelength 10 set
Absorbance range	0.000 to 3.500 ABS
Resolution	0.001 ABS
Absorbance stability	±0.003 Abs
Accuracy	ΔA≤±0.01 Abs(0≤A<1.0 Abs); ≤2.5%(1.0 Abs≤A≤2.5 Abs);
Sensitivity	≥0.01
Repeatability difference	≤0.2%(0≤A≤1.5 Abs); ≤1.0%(1.5 Abs <A≤2.5 Abs);
Channel difference	≤0.02 Abs
Linearity	≥0.999
Internal printer	58mm thermal printer
Voltage	AC 220V, 50Hz
Power	90 VA
Size	318286168mm
Weight	6.5Kg
Working temperature	10°C—30°C
Working humidity	≤ 85%
Storage temperature	0°C—55°C
Storage humidity	≤ 95%
Option language	English
PCSoftware	optional accessories
