Specifications
Elisa micro plate reader1.Simply to use
gramm via the reader "soft-keys"
3. Flat bottom, U bottom, V bottom

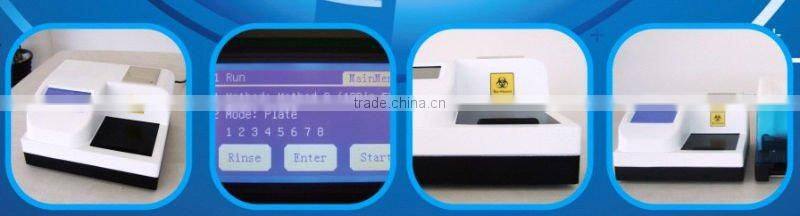

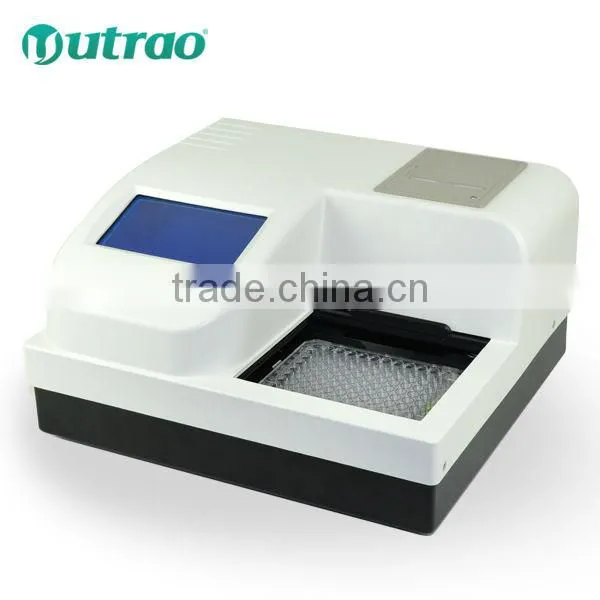

ELISA Micro plate Reader SM600
ELISA Microplate Reader
Model: SM600
Technical Parameters
Display 240*128 LCD Touch screen (blue Backlight)
Computer Connector RS232 9 needle
Suitable Micro plate Type 96 wells, Flat bottom, U bottom, V bottom
Shake 3 kind of intensity, can fit the exact time
Memory 200 programs, 1000 plates result
Light Source Tungsten Halogen lamp, lamp saver function, 12V, 20W
Wavelength range 400-750nm
Optical sensor 8 photodiode
Standard filters 405,450,492,630nm standard filter 4
Optional filters 4free positions for optional filters
Reading speed single wavelength<5sec/single, Duble wavelength<10sec
Absorbance range 0.000-3.500 Abs
Resolution 0.001 Abs
stability ±0.003 Abs
accuracy A≤ ±0.01(0≤A<1.0);
≤2.5%(A≥1.0);
Sensitivity ≥0.01 Abs
Repeatability≤0.2% (0≤A≤1.5Abs);
≤1.0% (A>1.5Abs);
8 Channel differences ≤0.02
Linearity ≥0.999
Internal printer 57mm thermal printer
Voltage AC 100-240V, 50Hz/60Hz
Power 90VA
Volume(Instrument) 318*286*168mm
Net weight 6.5Kg
Gross weight 8.7Kg
Outer box 45*41*29cm
Working temperature 10°C-30°C
Working humidity ≤ 85%
Storage temperature 0°C-55°C
Storage humidity ≤ 95%
Operation language: English and Chinese

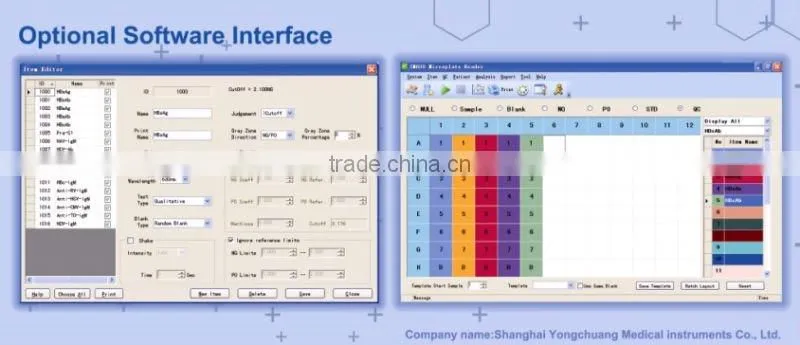

PC software optional accessories
|
|---|
|
|
|
|
