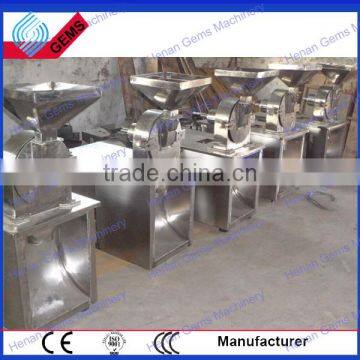

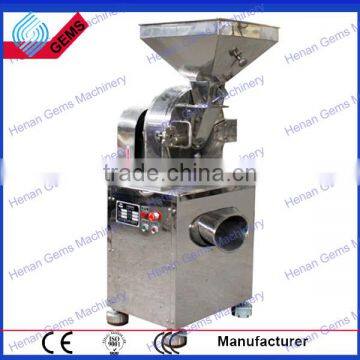

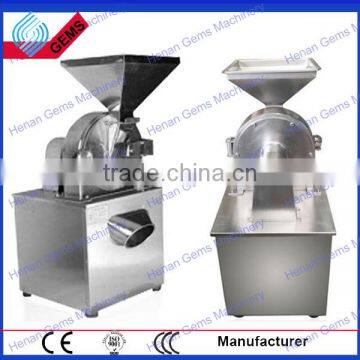

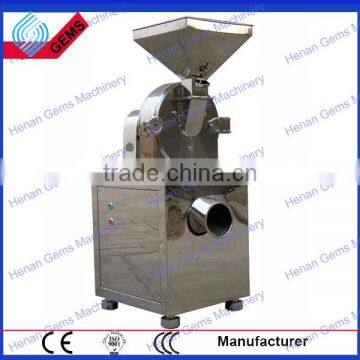

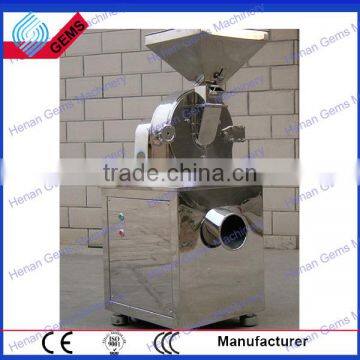

stainless steel soybean grinding machine
Machine Introduction:
1. This machine is made of fully stainless steel; it is widely used for grinding peanut, almond, sugar, spices, herbs, food, chemical industry etc.
2. The operation is very simple. You can adjust the different sizes of screens.
3. It takes advantage of the high rotation of different gearwheels, and then the products are crushed. The grinding effect is very good.
Work Principle:
This machine uses the relative movement of the movable and fixed teeth, so that the materials were crushed in the grinding chamber, through the relative movement between static and dynamic teeth, collision, percussion, friction, and materials between collision, percussion and friction and then crushed, the materials fall into the collection bucket beneath the grinding chamber or the bag.
Technical Parameters:
Model | GMS-MF180 | GMS-MF250 | GMS-MF320 | GMS-MF350 |
Material | stainless steel | stainless steel | stainless steel | stainless steel |
Voltage | 220/380v | 380v | 380v | 380v |
Power | 2.2kw | 5.5kw | 7.5kw | 11kw |
Fineness | 10-120mesh | 10-120mesh | 10-120mesh | 10-120mesh |
Rotation | 4200rpm | 4200rpm | 4200rpm | 4200rpm |
Capacity | 30-120kg/h | 50-200kg/h | 100-300kg/h | 200-500kg/h |
Size | 48*52*104cm | 75*60*126cm | 78*70*135cm | 80*90*155cm |
Weight | 75kg | 180kg | 260kg | 320kg |
Inner Structure:
Spare Parts:
Raw materials avaliable:
1. After your deposit, we will arrange the delivery within 10 workdays.
2. Usually, we will use the wooden case, if you have any special demands, please feel free to contact us.
Pre-sale Service:
1) Confirm the voltage in your region, we will customized it as your demands for free.
2) Confirm the nearest port to your location and provide delivery cost for your reference.
3) Take real pictures or video of the goods, send them to you to confirm.
4) Any techincal questions about our machines, our engineer team will solve it within one day.
After-sale Service:
1) Make one English instructions in time for your reference.
2) We provide 1 year warranty. During this period, we will provide the spare parts at factory price or for free. If there is something wrong with the quality, we promise change one for you for free.
3) For large production line, we can send enginners to help you install.
4) Any questions, you can email or call us anytime, we will solve it immediately.
All in all, we promise we are responsible for every client, we sincerely hope our long term cooperation in the further!
