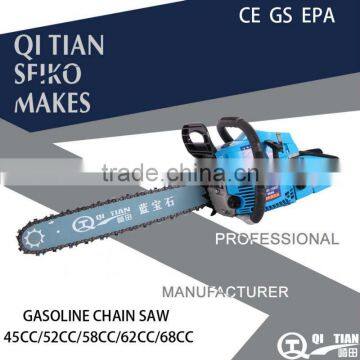

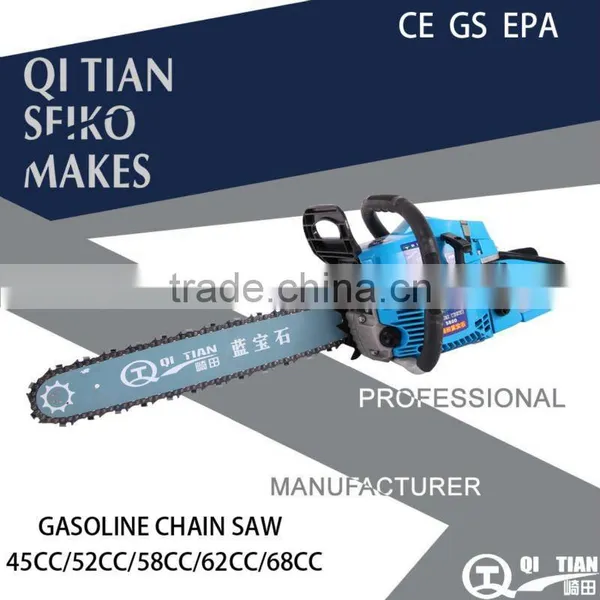

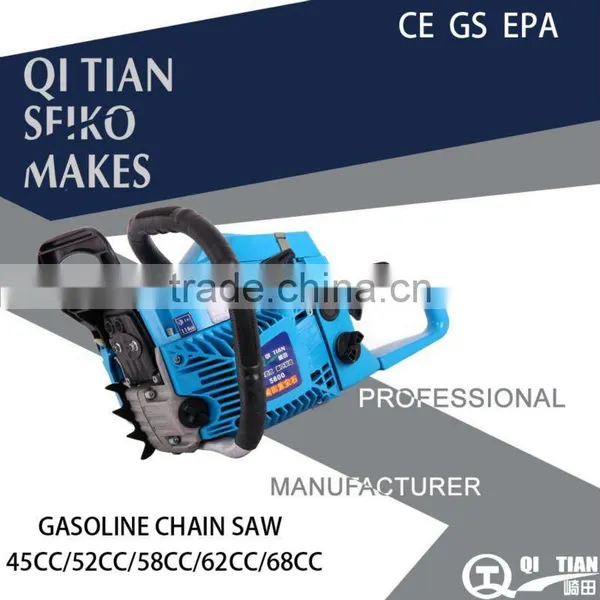

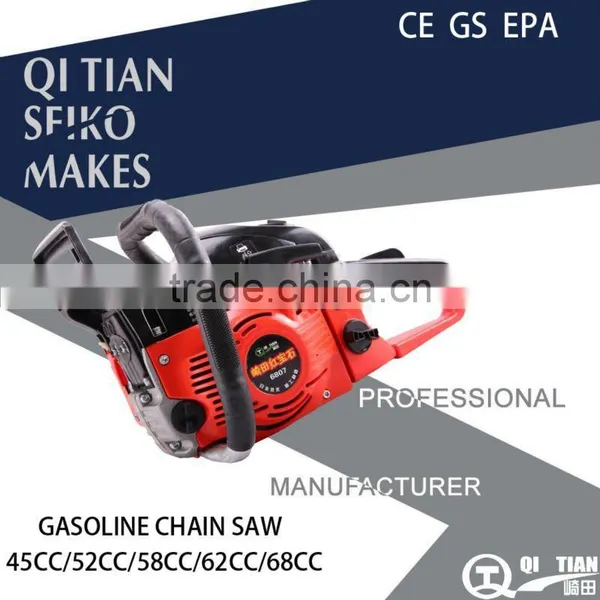

Diamond Chain Saw

Specifications

Our DIAMOND CHAIN SAW is good in quality and competitive in price ,we manufacture DIAMOND CHAIN SAW and supply OEM,OEM service according to you Requirement.

• Engine: single cylinder, two-stroke, air-cool
•  Ignition system: C.D.I
•  Dimensions(without guide bar and chain): 410 x 235 x 265 (mm)
•  Fuel: Mixture ( Gasoline 25: Two cycle oil 1 )
•  Fuel tank capacity: 550 (ml)
•  Oil tank capacity: 260 (ml )
•  Engine displacement: 58 ( cc)
•  Maximum engine power:  2.6KW(3.5HP)/8500RPM
•  Maximum engine speed with cutting attachment: 10000rpm
•  Maximum engine speed at idling: 3000±200
•  Maximum cutting length: 52 (cm)
•  Sprocket: 7T x 0.325
•  Saw chain type: Carlton/Tiger/Oregon
•  Saw chain pitch: 0.325(inch)
•  Saw chain gauge: 0.058(inch)
•  Guide bar type: Sprocket nose
•  Guide bar size: 18-22(inch)
•  Oil feeding system: Automatic pump with adjuster
•  Net Weight(without guide bar and chain): 7kg
•  Gross weight(with 20"cutting attachment):8Kg
•  Packing size: 52*25.5*31 cm/2pcs

We offer an innovative range of DIAMOND CHAIN SAW  to our clients that combine advanced technology with high power, optimum ergonomic design and low weight. These properties minimize the burden for man and the environment. Our range is available in a variety of equipment versions and for all purposes. These are also supplied with power ratings from1.7KW/2.3HP to 3.6KW/4.9HP. Furthermore, our range is widely used in orchards, parks or gardens or on building sites.

ABOUT US

We are professional manufacturer of all kinds of garden tools, main products included: gasoline chain saw, Brush Cutter, Hedge trimmer, Lawn Mower, Rotary Cultivator , Ground Drill, long reach chain Saw , spare parts and so on.
