MDF-86H118 -86 degree Chest Ultra-Low Temperature Medical Freezer

FOB Price

USD $1,500 - $4,700 / Piece

1 Piece(Min.Order)

Supply Ability 500 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Power Source:	Electric	Type:	Chest / Deep Freezer	Defrost Type:	Manual Defrost
Temperature Type:	Double-Temperature	Door Type:	Folding Door	Door No.:	Single Door
Certification:	CE, EMC, Other, CE, EMC, RoHS	Dimensions (L x W x H (Inches):	1270780965	Power (W):	520, 520
Voltage (V):	220	Place of Origin:	Shanghai, China	Model Number:	MDF-86H118
Brand Name:	DRAWELL

Product Description

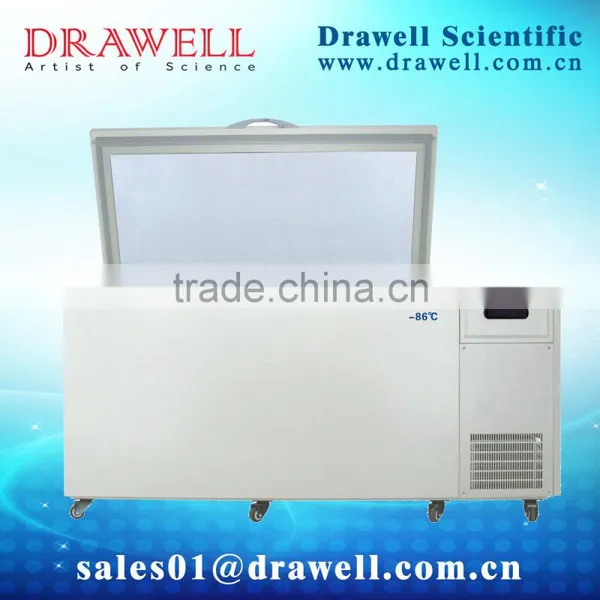

-86℃ Chest Ultra-Low Temperature Medical Freezer

MDF-86H58

To store virus, germs, blood plasma, vaccine, blood, skin, bone marrow, sperm, biological products, pelagic products and others.

Suitable for research institute, chemical, military, electronics, piscatorial industries, university labs, pelagic fishery industries and other areas

Temperature Control:

Microprocessor-based temperature controller, -40℃~-86℃ can be set freely, digital temperature display.

High and low temperature alarms, set as needed

Platinum resistance temperature sensor, temperature sensing accuracy

Safety

Alarms: high and low temperature alarms, sensor failure alarm.

Two alarm styles: buzzing, flashing

Keyboard lock, password protection function to avoid set parameter randomly

Operation parameters display, real-time monitoring, ensure the equipment safety stability

Refrigerating System

Imported branded compressor,low noise CFC-free, efficient environmental protection refrigerants

Thick and high density foam layer for thermal insulation

Using single cascade refrigeration system with optimized design, cooling speed, low power consumption, big refrigerating capacity

Humanized Design

Safety lock design prevents any abnormal door status

Wide voltage range, from 187V to 242V

Silent design, suitable for quite environment

Big screen display, easy to read

Double door seal design, lock the air conditioning, strengthen heat preservation effect

Mobile, fixed castor, convenience for the user

Parameter

Model	MDF-86H58
Temperature Range	–40℃~–86℃
Cooling	–86℃(Ambient temp.35℃)
External Size(W×D×H)	670×775×1016(mm)
Internal size(W×D×H)	410×410×353(mm)
Effect Capacity	58L
Net Weight	80kg
Rated Power	420W(220V,50Hz)
Insulation Layers	PU whole foamed
External Material	Color sprayed steel
Internal Material	SUS
Outer door	1
Lock	1
Test Hole	1,diameter 18mm
Compressor	1,all enclosed
Refrigerant	HFC
Alarm System	Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm
Accessory	Keys

MDF-86H118

Parameter

Model	MDF-86H118
Temperature Range	–40℃~–86℃
Cooling	–86℃(Ambient temp.35℃)
External Size(W×D×H)	1270×780×965(mm)
Internal size(W×D×H)	500×400×560(mm)
Effect Capacity	118L
Net Weight	120kg
Rated Power	520W(220V,50Hz)
Insulation Layers	PU whole foamed
External Material	Color sprayed steel
Internal Material	SUS
Outer door	1
Lock	1
Test Hole	1,diameter 18mm
Compressor	1,all enclosed
Refrigerant	HFC
Alarm System	Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm
Accessory	Keys

MDF-86H258

Parameter

Model	MDF-86H258
Temperature Range	–40℃~–86℃
Cooling	–86℃(Ambient temp.35℃)
External Size(W×D×H)	1510×885×1095(mm)
Internal size(W×D×H)	780×500×660(mm)
Effect Capacity	258L
Net Weight	220kg
Rated Power	700W(220V,50Hz)
Insulation Layers	PU whole foamed
External Material	Color sprayed steel
Internal Material	SUS
Outer door	1
Lock	1
Test Hole	1,diameter 18mm
Compressor	1,all enclosed
Refrigerant	HFC
Alarm System	Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm
Accessory	Keys

MDF-86H458

Parameter

Model	MDF-86H458
Temperature Range	–40℃~–86℃
Cooling	–86℃(Ambient temp.35℃)
External Size(W×D×H)	2110×885×1095(mm)
Internal size(W×D×H)	1380×500×660(mm)
Effect Capacity	458L
Net Weight	240kg
Rated Power	780W(220V,50Hz)
Insulation Layers	PU whole foamed
External Material	Color sprayed steel
Internal Material	SUS
Outer door	1
Lock	1
Test Hole	1,diameter 18mm
Compressor	1,all enclosed
Refrigerant	HFC
Alarm System	Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm
Accessory	Keys
