MDF-86H58 Laboratory Low Temperature Refrigerating Chamber/refrigerator With Digital Temperature Display

MDF-86H58 Laboratory Low Temperature Refrigerating Chamber/refrigerator With Digital Temperature Display photo-1
US$ 1,000 - 12,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
DRAWELL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name DRAWELL
Model Number MDF-86H Series
Certification ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Power(W) 700

-86℃ Chest Ultra-Low Temperature Medical Freezer

Product Description



 To store virus, germs, blood plasma, vaccine, blood, skin, bone marrow, sperm, biological products, pelagic products and others.

      Suitable for research institute, chemical, military, electronics, piscatorial industries, university labs, pelagic fishery industries and other areas.

Temperature Control:

Microprocessor-based temperature controller, -40℃~-86℃ can be set freely, digital temperature display.

High and low temperature alarms, set as needed

Platinum resistance temperature sensor, temperature sensing accuracy



Safety

Alarms: high and low temperature alarms, sensor failure alarm.

Two alarm styles: buzzing, flashing

Keyboard lock, password protection function to avoid set parameter randomly

Operation parameters display, real-time monitoring, ensure the equipment safety stability



Refrigerating System

Imported branded compressor,low noise CFC-free, efficient environmental protection refrigerants

Thick and high density foam layer for thermal insulation

Using single cascade refrigeration system with optimized design, cooling speed, low power consumption, big refrigerating capacity



Humanized Design

Safety lock design prevents any abnormal door status

Wide voltage range, from 187V to 242V

Silent design, suitable for quite environment

Big screen display, easy to read

Double door seal design, lock the air conditioning, strengthen heat preservation effect

Mobile, fixed castor, convenience for the user



Technical Parameter



Model

MDF-86H58

Temperature Range

–40℃~–86℃

Cooling

–86℃(Ambient temp.35℃)

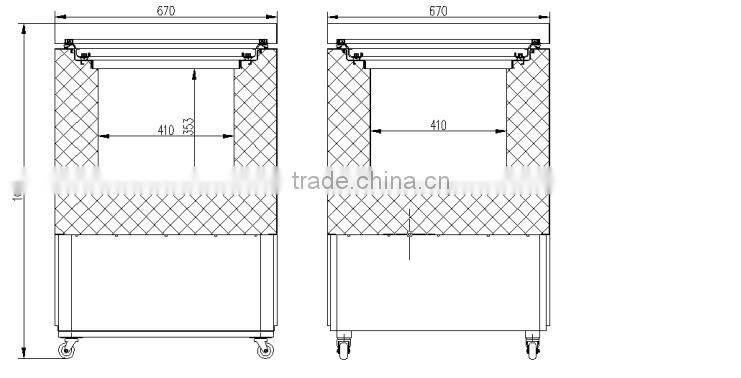

External Size(W×D×H)

670×775×1016(mm)

Internal size(W×D×H)

410×410×353(mm)

Effect Capacity

58L

Net Weight

80kg

Rated Power

420W(220V,50Hz)

Insulation Layers

PU whole foamed

External Material

Color sprayed steel

Internal Material

SUS

Outer door

1

Lock

1

Test Hole

1,diameter 18mm

      Compressor

1,all enclosed

Refrigerant

HFC

Alarm System

Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm

Accessory

Keys

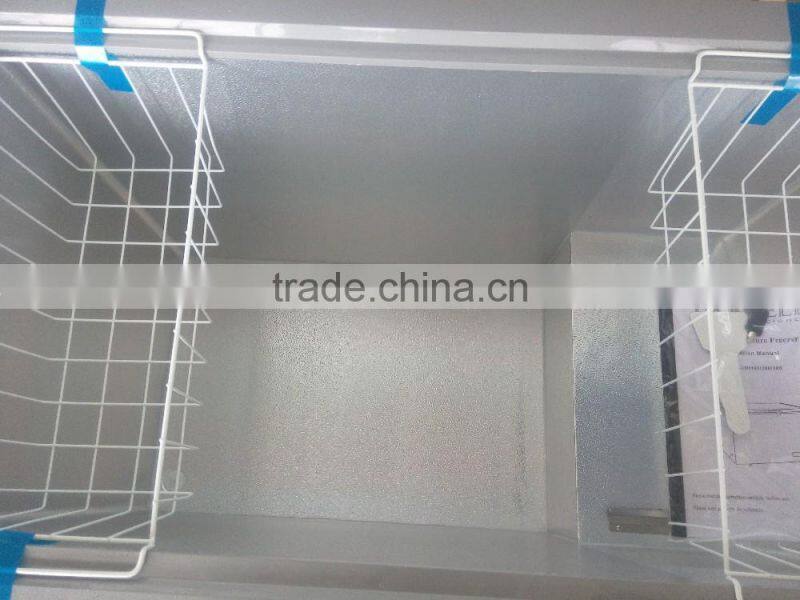

Detailed Images

 MDF-86H58 Laboratory low temperature refrigerating chamber/refrigerator with digital temperature displayMDF-86H58 Laboratory low temperature refrigerating chamber/refrigerator with digital temperature displayMDF-86H58 Laboratory low temperature refrigerating chamber/refrigerator with digital temperature display

MDF-86H58 Laboratory low temperature refrigerating chamber/refrigerator with digital temperature display



Packaging & Shipping

 MDF-86H58 Laboratory low temperature refrigerating chamber/refrigerator with digital temperature display

Related products

 MDF-86H58 Laboratory low temperature refrigerating chamber/refrigerator with digital temperature displayMDF-86H58 Laboratory low temperature refrigerating chamber/refrigerator with digital temperature displayMDF-86H58 Laboratory low temperature refrigerating chamber/refrigerator with digital temperature displayMDF-86H58 Laboratory low temperature refrigerating chamber/refrigerator with digital temperature display

certification & Plug

 MDF-86H58 Laboratory low temperature refrigerating chamber/refrigerator with digital temperature displayMDF-86H58 Laboratory low temperature refrigerating chamber/refrigerator with digital temperature display

Our Services

 Drawell After Sales Service-----Please don't worry, our products are superior in quality,  If you have any problems, please feel free to let us know, we are glad to support as below:



* Good quality firstly to avoid any defective products ;

* Operation Manuals in English ; installation & operation vedio will be provided to you as guidance ;

* We could provide Online instruction ;

* During warranty time, we can send product accessories when you need;

* Your technicians can come to our factory for training , Drawell engineers can go your place for support ( cost on your side );

* Products can be customized according to your requirements;

* Generaly the machine can use 5~10 years for average even longer if you use properly.
