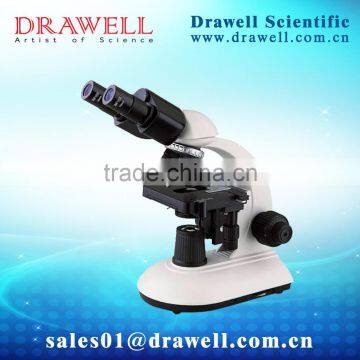

Trinocular eyepieces microscope with low cost

FOB Price

USD $100 - $800 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	DRAWELL
Model Number	B Series	Theory	Other, Biological Microscope, Biological Microscope
Drawtube	Other, Trinocular, Monocular/Binocular

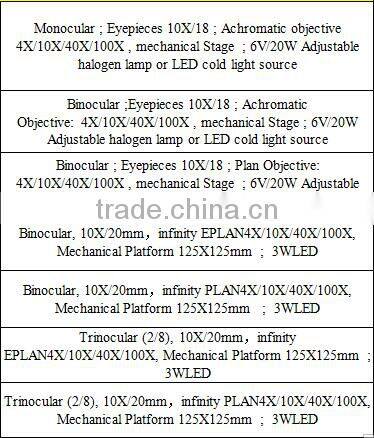

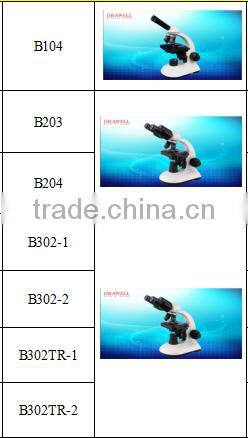

B Series Biological Microscope Outfits

Items	Specification	B104 LED	B203 LED	B204 LED	B203 LED TR	B204 LED TR
Eyepiece	WF 10×-18 mm	Y	YY	YY	YY	YY
	WF 10×-18 mm(With Pointer)	o	o	o	o	o
	WF 16×-13 mm	o	o	o	o	o
	WF 10×-18 mm(Reticule 0.1 mm)	o	o	o	o	o
Achromatic Objective	4×	Y	Y		Y
	10×	Y	Y		Y
	40×(S)	Y	Y		Y
	100×/1.25 (Oil) (S)	Y	Y		Y
	20×	o	o		o
	60× (S)	o	o		o
Plan Objective	4×			Y		Y
	10×			Y		Y
	40×/0.65 (S)			Y		Y
	100×/1.25 (Oil) (S)			Y		Y
	20×			o		o
	60×(S)			o		o
Monocular Head	Inclined 30°, Rotatable 360°	Y
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm		Y	Y
Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm, Light Distribution: 20:80				Y	Y
Nosepiece	Quadplex	Y	Y	Y	Y	Y
Focusing Knobs	Coaxial Coarse and Fine Focusing Knobs	Y	Y	Y	Y	Y
Mechanical Stage	Stage Size:120mm×115mm, Travel:50mm×70mm	Y	Y	Y	Y	Y
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	Y	Y	Y	Y	Y
Dark Field Ring	Available For 4×-40× Objective	o	o	o	o	o
Polarizing Attachment	Analyzer / Polarizer	o	o	o	o	o
Mirror	Plano-concave mirror	o	o	o	o	o
C-mount	1×/ 0.5×(Focus Adjustable)				o	o
Base	LED Illumination Systems(non-rechargeable)	Y	Y	Y	Y	Y
	LED Illumination Systems (rechargeable)	o	o	o	o	o
	6V 20W Halogen Lamp, Wide Voltage: 100V-240V	o	o	o	o	o

Note: "Y"In Table Is Standard outfits, "o" Is Optional Accessories.

Packing Size: 337mm×242mm×417mm Gross Weight: 7 kgs Net Weight: 5.5 kgs
