Product Details
| Place of Origin | Shanghai, China | Brand Name | DRAWELL | |
| Model Number | SZ650BP/SZ650B2L/SZ780BP/SZ780TP/SZ780B2L/SZ780T2L/SZ680BP/SZ680B2L | Theory | Stereo Microscope | |
| Drawtube | Other, different models equipped with different eyepieces |
Product Description

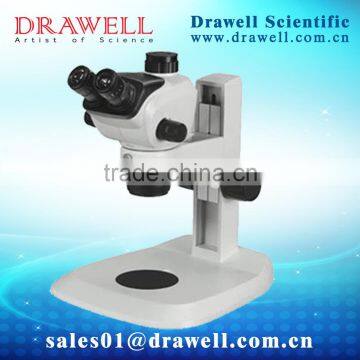

SZ650/ SZ680/SZ780 SZ Series Stereo Zoom Microscope
Outstanding Ergonomic Design
- SZ680/780 35°viewing angle, SZ650 40°viewing angle, suitable for long-term sitting observation.
- 330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen
Top Optical & Mechanical Design
- Greenough optical system, built-in rotating shaft zoom system.
- No tilting Image in left &right light path in complete pupillary distance , No dizziness feeling after long time observing.
- (patent number: 201320807246.0)
- Stereo angle for left & right light path is 12°, stereoscopic effect, large viewing field, high zoom ration.
Excellent Technology And Quality
- High resolution, large depth of field, excellent color restoration and contrast.
- Operation comfortable(manufactured by high-precision machine, excellent assembly technology ).
- High- end material(PC resin cover, aluminium alloy ,copper alloy parts, austenite stainless steel driving parts).
International Level Appearance Design
- Elegant shape , high-end and integrated appearance design, comfortable operation.
Various Accessories,Complete Function
- Different video output connectors, built-in digital image model.
- Illumination optional: LED, halogen lamp, cold light source etc. (100V-240V wide voltage input).
- Various professional stands and operating attachments.
Main Technical Specification
Model | SZ650 | SZ680 | SZ780 |
Objectives Zoom Range | 0.7X-4.5X | 0.68X-4.7X | 0.66X-5.1X |
Zoom Ratio | 1 : 6.5 | 1 : 6.8 | 1 : 7.8 |
Field Diameter (mm) | Φ22 | Φ23 | Φ24 |
Working Distance (mm) | 110 | 110 | 110 |
Stereo Angle ( °) | 12 | 12 | 12 |
Viewing Angle ( °) | 40 | 35 | 35 |
Interpupillary Adjustable Distance (mm) | 50-75 | 50-75 | 50-75 |
Video Output Distribution | NO | 0:100 standard | |
50:50 optional | |||
Guide Rail Stand Focusing Distance (mm) | 80 | ||
Pillar Stand Focusing Distance (mm) | 115 | ||
SZ650 Series Objective & Eyepiece Parameter List (0.7×-4.5×)
Additional Objective | 0.5X | 1X(built-in) | 2X | |
W.D | 189mm | 110mm | 36mm | |
10XEyepiece/Φ22mm | Magnification | 3.5~22.5 | 7~45 | 14~90 |
Field dia. (mm) | 62.9~9.8 | 31.43~4.89 | 15.71~2.44 | |
15XEyepiece/Φ16mm | Magnification | 5.25~33.75 | 10.5~67.5 | 21~135 |
Field dia. (mm) | 45.71~7.11 | 22.86~3.56 | 11.43~1.78 | |
20XEyepiece/Φ12mm | Magnification | 7~45 | 14~90 | 28~180 |
Field dia.(mm) | 34.28~5.33 | 17.14~2.67 | 8.57~1.33 | |
SZ680 Series Objective & Eyepiece Parameter List (0.68×-4.7×)
Additional Objective | 0.5X | 1X(built-in) | 2X | |
W.D | 189mm | 110mm | 36mm | |
10XEyepiece/Φ23mm | Magnification | 3.4~23.5 | 6.8~47 | 13.6~94 |
Field dia. (mm) | 67.65~9.79 | 33.82~4.89 | 16.91~2.46 | |
15XEyepiece/Φ16mm | Magnification | 5.1~35.25 | 10.2~70.5 | 20.4~141 |
Field dia. (mm) | 47.06~6.81 | 23.53~3.40 | 11.76~1.70 | |
20XEyepiece/Φ12mm | Magnification | 6.8~47 | 13.6~94 | 27.2~188 |
Field dia.(mm) | 35.294~5.11 | 17.65~2.55 | 8.82~1.28 | |
SZ780 Series Objective & Eyepiece Parameter List (0.66×-5.1×)
Additional Objective | 0.5X | 1X(built-in) | 2X | |
W.D | 189mm | 110mm | 36mm | |
10XEyepiece/Φ24mm | Magnification | 3.3~25.5 | 6.6~51 | 13.2~102 |
Field dia. (mm) | 72.73~9.41 | 36.36~4.71 | 18.18~2.35 | |
15XEyepiece/Φ16mm | Magnification | 4.95~38.25 | 9.9~76.5 | 19.8~153 |
Field dia. (mm) | 48.48~6.27 | 24.24~3.14 | 12.12~1.57 | |
20XEyepiece/Φ12mm | Magnification | 6.6~51 | 13.2~102 | 26.4~204 |
Field dia. (mm) | 39.64~4.71 | 18.18~2.35 | 9.09~1.18 | |
SZ650/680/780 Series Zoom Stereo Microscope Outfit
Items | SZ650BP | SZ650B2L | SZ680BP | SZ680B2L | SZ780BP | SZ780B2L | |
Main Body | Binocular | • | • | • | • | • | • |
Trinocular |
|
| ο | ο | ο | ο | |
10XEyepiece/Φ22mm | •• | •• |
|
|
|
| |
10XEyepiece/Φ23mm |
|
| •• | •• |
|
| |
10XEyepiece/Φ24mm |
|
|
|
| •• | •• | |
15XEyepiece/Φ16 mm | οο | οο | οο | οο | οο | οο | |
20XEyepiece/Φ12mm | οο | οο | οο | οο | οο | οο | |
0.5X/2X Objective | Ο | Ο | Ο | Ο | Ο | Ο | |
Focusing unit | • | • | • | • | • | • | |
No light | • |
| • |
| • |
| |
Reflecting 3W LED |
| • |
| • |
| • | |
Transmitting 3W LED |
| • |
| • |
| • | |
Black & white Plate | • | • | • | • | • | • | |
Glass Plate |
| • |
| • |
| • | |
Arm stand | • | • | • | • | • | • | |
Pillar stand | Ο | Ο | Ο | Ο | Ο | Ο | |
Focusing Arm stand | Ο | Ο | Ο | Ο | Ο | Ο | |
Base (330×300mm) | • | • | • | • | • | • | |
C-mount 0.5X,0.7X,1X |
|
| Ο | Ο | Ο | Ο | |
Note:"•" In Table Is Standard Outfits, "Ο" Is Optional Accessories.
