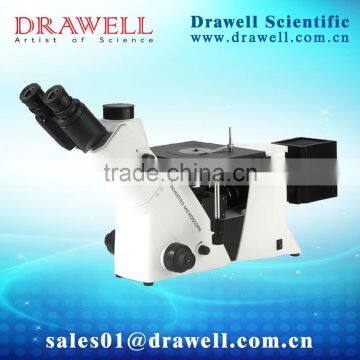

Advanced Professional Trinocular Inverted Metallurgical Microscope

FOB Price

US$ 700 - 2,600 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

MDS400 Inverted Metallurgical

New research and new development
Combination with bight field, dark field, polarizing observation etc. Widely used in metal, mineral, electronic field.
Dark field objective,Make observation in dark & bright field.
Oversize view field eyepiece, view field up to 22mm for comfortable observation.
Oversized three-layer working stage, more choice for samples.
Light distribution (both): 100 : 0 (100% for eyepiece) ; 80 : 20 (80% for trinocular head and 20% for eyepiece)

Objective specification: ( "•" Is Standard outfits, "Ο" Is Optional Accessories.)

	Objective	N.A.	Working Distance (mm)	MDS400
Metallurgical LWD Infinity Plan Objectives	LPL 5×	0.13	24.23	•
	LPL 10×	0.25	18.48	•
	LPL 20×	0.40	8.35	•
	LPL 40×	0.65	3.90	Ο
	LPL 50×	0.70	1.95	•
	LPL 80×	0.80	0.85	Ο
	LPL100×	0.90	1.00	Ο
Metallurgical LWD Infinity Plan Objectives for Bright/Dark Field	M PLAN 5× BD	0.13	24.23
	M PLAN 10× BD	0.25	18.48
	M PLAN 20× BD	0.40	8.35
	M PLAN 50× BD	0.70	1.95
	M PLAN 80× BD	0.80	0.85

MDS400 Inverted Metallurgical Microscope Outfits

Item	Specification		MDS400
Eyepiece	WF10×/22mm(adjustable)		•
Eyepiece	WF10×/22mm(adjustable,reticule 0.1mm)		•
Metallurgical LWD Infinity Plan Objectives	LPL 5×/0.13	W.D=24.23mm	•
	LPL 10×/0.25	W.D.= 18.48mm	•
	LPL 20×/0.40	W.D.= 8.35mm	•
	LPL 50×/0.70(S)	W.D.= 1.95mm	•
	LPL 40×/0.65	W.D.= 3.90mm	Ο
	LPL 80×/0.80(S)	W.D.= 0.85mm	Ο
	LPL 100×/0.90(S)	W.D.= 1.00mm	Ο
Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field	M PLAN 5×/0.13 BD	W.D=24.23mm
	M PLAN 10×/0.25 BD	W.D.= 18.48mm
	M PLAN 20×/0.40 BD	W.D.= 8.35mm
	M PLAN 50×/0.70 BD	W.D.= 1.95mm
	M PLAN 80×/0.80 BD	W.D.= 0.85mm
Seidentopf Trinocular Head	Inclined 30°, interpupilary distance: 48-76mm Light distribution (both):100: 0(100% for eyepiece) 80:20(80% for trinocular head,and 20% for eyepiece)		•
Nosepiece	Quintuple		•
Nosepiece	Quadplex (specially for bright /dark field objectives)
Mechanical Stage	Three layers,Stage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm		•
Coaxial Coarse and Fine Focusing unit	Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2 μm.		•
Polarizing Unit			•
Illumination	12V/50W Halogen(Input voltage:100V~240V)		•
Filter	Blue		•
	Green		Ο
	Amber		Ο
	Grey		Ο
C-mount	1×C-Mount		Ο
C-mount	0.5× C-Mount (Focus adjustable)		Ο
Adaptor for Digital Photograph	Use for CANON/NIKON/OLYMPUS etc.		Ο

Note: "•"In Table Is Standard outfits, "Ο" Is Optional Accessories.

Packing Size: 660mm×590mm×325mm Gross Weight: 17 kgs Net Weight: 12.5 kgs
