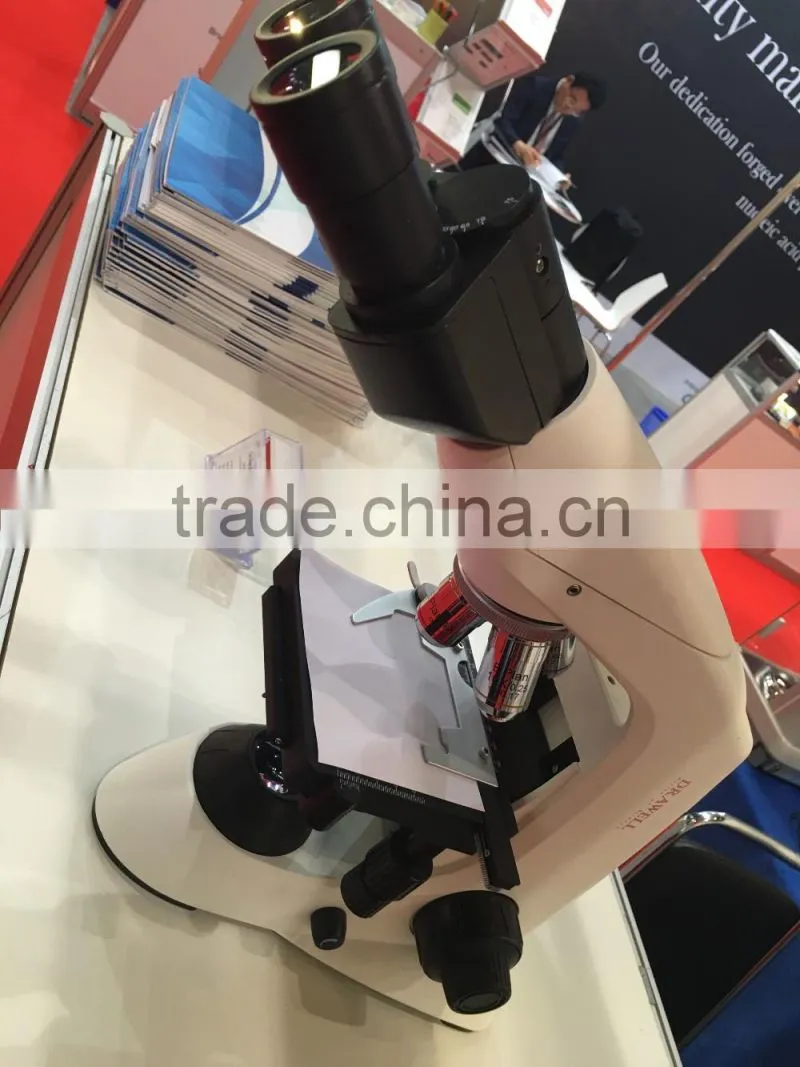

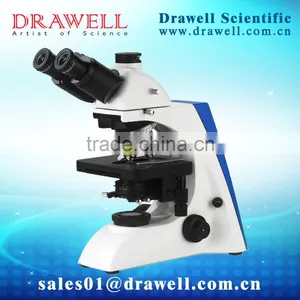

Digital Fluorescent Microscope With Camera

Items

Specification

Outfits

Eyepiece

WF10×/22mm (adjustable)

••

Infinity Plan Objectives

PLAN 4×/0.10

W.D.=12.10mm

PLAN 10×/0.25

W.D.=4.64mm

PLAN 20×/0.40(S)

W.D.=2.41mm

PLAN 40×/0.66(S)

W.D.=0.65mm

PLAN 100×/1.25(S, Oil)

W.D.=0.12mm

PLAN 2.5×/0.07

W.D.=8.47mm

Ο

PLAN 60×/0.80(S)

W.D.=0.33mm

PLAN 100×/1.15(S, W)

W.D.=0.19mm

Seidentopf Binocular Head

Inclined 30°,rotatable 360°, Interpupilary distance:48mm-76mm

Seidentopf Trinocular Head

Inclined 30°, rotatable 360°, Interpupilary distance:48mm-76mm,
Light distribution (both): 100: 0 (100% for eyepiece)

80:20(80% for trinocular head and 20% for eyepiece)

Nosepiece

Quintuple

Mechanical Stage

Integrated stage

Stage size: 182 mm×140mm,Travel range: 77mm×52mm
Two-slide holder

Swing Out Condenser

N.A. 0.9/0.13, Swing out with iris diaphragm.

Koehler Illumination

6V/30W Halogen Lamp

Wide voltage input: 100V~240V

Field diaphragm , center adjustable

Filter

Blue

Green

Amber

Grey

C-mount

1×C-mount ( better for digital photograph)

0.57× C-Mount

 (focus adjustable, better for digital camera)

Adaptor for Digital Photograph

Used for CANON/NIKON/OLYMPUS etc.

Fluorescence Attachment

Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.

Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), LED fluorescence lamp.

Phase Contrast Unit

Quintuple hole turret

10× /20× /40× /100× phase contrast objective

Independent slot

10× /20× /40× /100× phase contrast objective

Dark Field Unit

Dark field condenser (dry),apply to 4×- 40× objective

Dark field condenser (wet),apply to 100× objective

Polarizing Attachment

Analyzer / Polarizer
