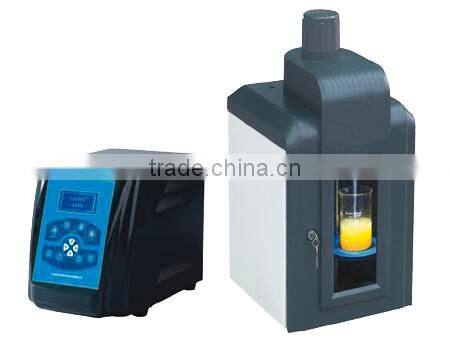

JY98-IIIN,JY98-IIIDN,JY99-IIDN Ultrasonic Homogenizer
As a new type of ultrasonic homogenizer, it has complete functions, novel appearance and reliable performance. It has a large-screen display and central control by a mini- computer. The ultrasonic duration and power can be set arbitrary. In addition, sample temperature, actual frequency, computerized tracking and automatic trouble warning can all be displayed in the large LCD screen.
MODEL | JY98-IIIN | JY98-IIIDN | JY99-IIDN |
Frequency | 19.5-20.5 KHz | 19.5-20.5 KHz | 19.5-20.5 KHz |
Power | 1200 W | 1200 W | 1800 W |
Included Tip | 20 | 20 | 25 |
Optional Tips | 15, 25 | 15, 25 | 20, 28 |
Crushing Capacity | 50-1000 ml | 50-1000 ml | 50-1200 ml |
Duty Ratio (%) | 1-99 % | 0.1-99.9 % | 0.1-99.9 % |
Power Supply | 220/110 VAC 50Hz/60Hz | 220/110 VAC 50Hz/60Hz | 220/110 VAC 50Hz/60Hz |
Power Supply chassis Size and Weight | 40×28×22 cm; 12.1Kg | 40×28×22 cm; 12.1Kg | 40×28×22 cm; 13Kg |
Mainframe Weight | 14.5 Kg | 14.6 Kg | 15 Kg |
Packing Size | 534×295×435 mm | 534×295×435 mm | 534×295×435 mm |
Drawell After Sales Service-----Please don't worry, our products are superior in quality, If you have any problems, please feel free to let us know, we are glad to support as below:
* Good quality firstly to avoid any defective products ;
* Operation Manuals in English ; installation & operation vedio will be provided to you as guidance ;
* We could provide Online instruction ;
* During warranty time, we can send product accessories when you need;
* Your technicians can come to our factory for training , Drawell engineers can go your place for support ( cost on your side );
* Products can be customized according to your requirements;
* Generaly the machine can use 5~10 years for average even longer if you use properly.
