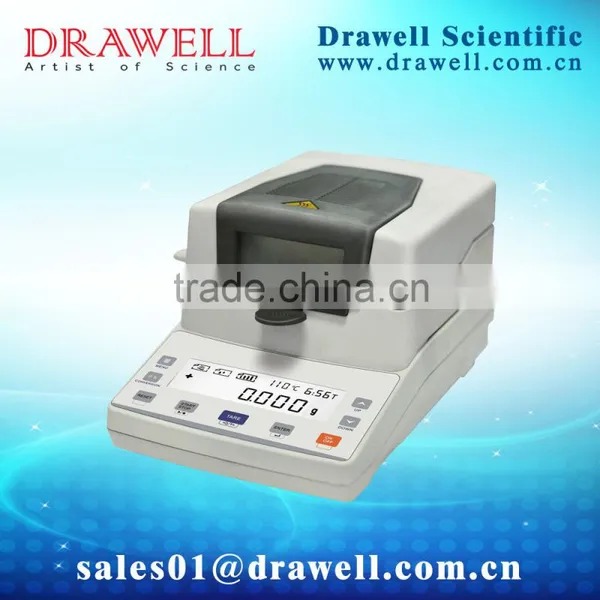

DW-MW Series High Quality Halogen Moisture Meter 0.05g

Name: DW-MW Series High Quality Halogen Moisture Meter 0.05g
Brand: DRAWELL
SKU: 141124192
Availability: InStock

Shanghai Drawell Scientific Instrument Co., Ltd.

US$ 300 - 1,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

DRAWELL

Model Number:

DW-MW Series

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name DRAWELL

Model Number DW-MW Series

DW-MW Series Halogen Moisture Tester

Feature

Halogen light heating

Stainless steel chamber

Temperature and time can be set

The percentage of moisture content

The percentage of dry residual

LCD with backlight

Store historical setting

Technicl parameters

Model	DW-110MW	DW-105MW		DW-102MW		DW-100MW		DW-200MW
Range(g)	110	110		110		110		200g
Readability(g)	0.01	0.005		0.002		0.001		0.001g
Operating Temp.Range	5°C---35°C
Display	LCD
Calibration	External
Pan size(mm)	Φ90
Dimensions(WLH)	200180380
Weight(Kg)	5.8
Heat soure	Halogen lamp
Temp.sensor	PT-100
Temp.range	40°C---199°C
Temp.step	1°C
Moisture range	0.0%-100%		0.00%---100%
Moisture readability	0.2%		0.1%		0.04%		0.01%
Dry residual range	100.00%---0.00%
Dry residual readability	0.2%		0.1%		0.04%		0.01%
ATRO	100%---999%
ATRO	0%---999%
Temperature setting	40°C---199°Cby1°Cstep
Time setting	1---99min by 1s step
Autostop	0.1%---9.9%within 1 min
Nuber of storage	15
Heater	220V+15%50Hz 115V+15% 400W
Interface	R232
Balance	External power supply Output: 9V Lnput: 220V+15%50Hz
