High-speed Refrigerated Centrifuge DW-GL-21MC 21000RPM
- SHANGHAI
- T/T D/P D/A Credit Card
You May Like
Product Details
| Brand Name | DRAWELL | Model Number | DW-GL-22MC | |
| Place of Origin | Shanghai, China |
Product Description

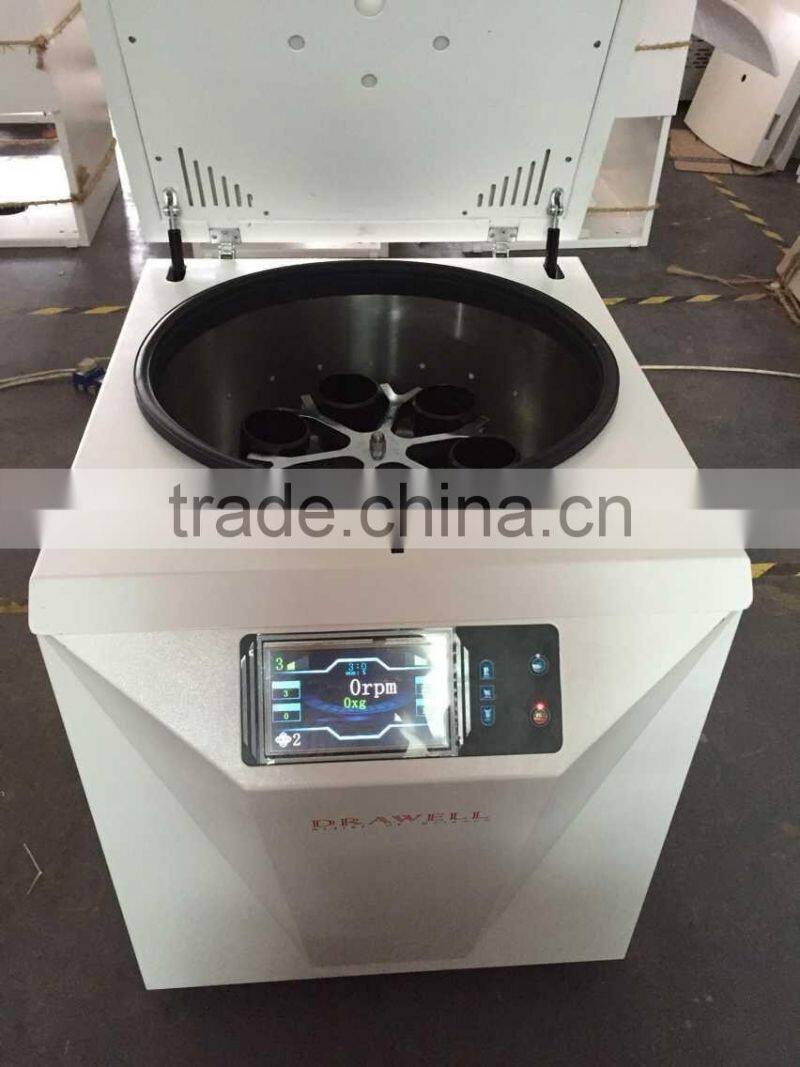

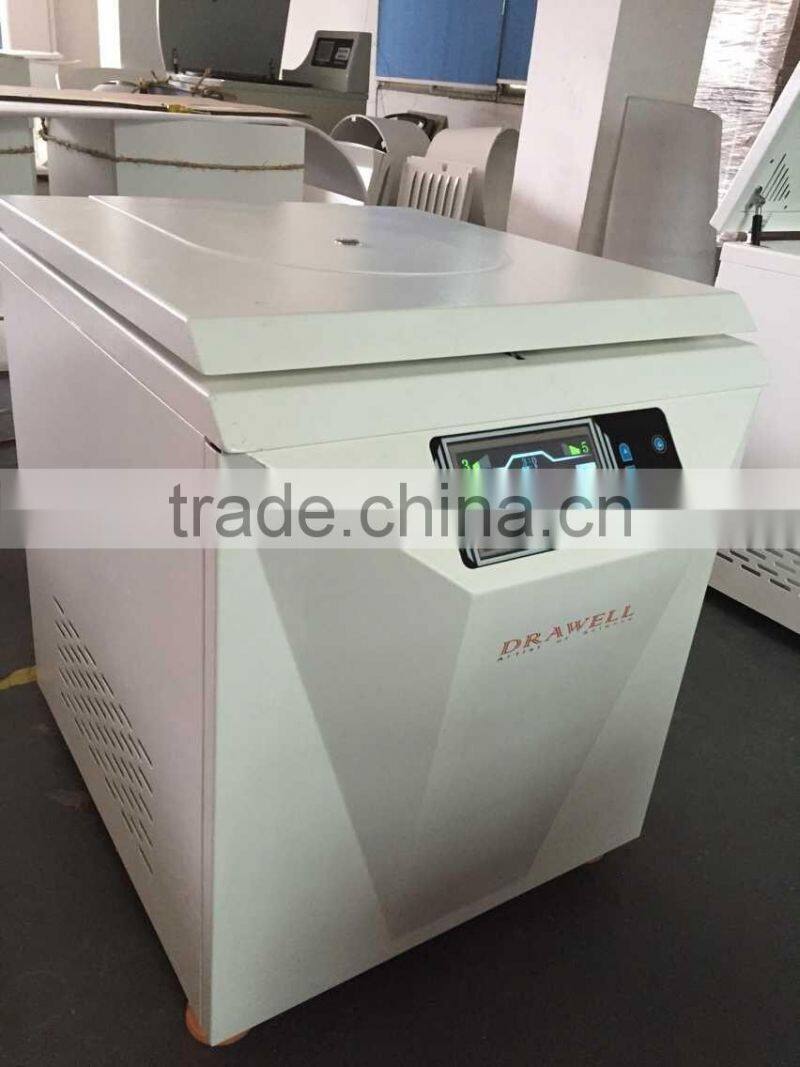

High-speed Refrigerated Centrifuge DW-GL-21MC
Feature:
1. Adopt advanced CPU control system realizing microprocessor control,it can control rotate speed,temperature and relative centrifuge force.
2. Maintenance-free frequency conversion motor with an accurate temperature control system. Has the rotor identification function, prevent over-speed operation.
Speed Range: 0~21000rpm, Speed Accuracy:±20rpm.
3. Imported CFC-free compressor, two-cycle refrigeration, no pollution,high accuracy of temperature. Temperature control range is in -20℃~+40℃. Rotors can be still precooling under a ban state.
4. The speed and the centrifugal force step adjustment is 10 RPM/10xg. Time control: 0-23 hours 59 minutes 59 seconds, accuracy is ±1 SEC/continuous centrifugal/instantaneous centrifugal;
5. Stainless steel recessed, solid structure, and is suitable for sustainable use, air spring, easy open cover, automation lock cover ensure safety.
6. Germany import 5 "big screen LCD liquid crystal display, touching panel, programmable operation.
7. Equipped with door cover protection, with the self-diagnostic system and protection for imbalance, over-speed and over-temperature. People can monitor the centrifuge process to ensure the safe operation.
8. Rotors adopted super-hard aluminum alloy by the special craft manufacture, have the sealing performance and infinite time high temperature resistant alexipharmic function.
9. Complying with CE security certification, and certified by ISO9001 and 13485 quality system.
Panel Features:
- 1. Imported German 5" large screen LCD liquid crystal display, both shows parameters set data and the actual data; Standard English Language Display.
2. End, error and running an imbalance, the voice signal, and stop working, liquid crystal display text
3. It storages 10 operation program,and lets you control the speed rates from 0~9 grade.
4. Program can be designed by customers according to actual demands.
Technical Parameters:
Model | DW-GL-22MC | DW-GL-21MC |
Max Speed | 22000r/min | 21000r/min |
Max RCF | 53000×g | 50400×g |
Max Capacity | 3000ml | |
Speed Accuracy | ±30r/min | |
Temp Accuracy | ±1℃ | |
Temp Range | -20℃~+40℃ | |
Acc/Dec rates | 0~9 | |
The shortest Acc time | 1min30s(0~22000r/min) | 1min30s(0~21000 r/min) |
The shortest Dec time | 1min40s(22000 r/min~0) | 1min40s(21000 r/min~0) |
Refrigeration system | Non-CFC refrigeration system | |
Timer Range | 0~23h 59min | 0~23h 59min |
Motor | Brushless DC Motor | |
Noise | ≤65dB(A) | ≤65dB(A) |
Power Supply | AC220v 50Hz 30A | |
Dimension | 710×820×1200mm(L×W×H) | |
Angle Rotor: Swing Rotor:
Number | Max Speed | Max RCF | Capacity |
1 | 22000r/min | 53000×g | 12×1.5ml |
2 | 21000r/min | 50400×g | 16/12×10ml |
3 | 20000r/min | 43000×g | 6×50ml |
4 | 15000r/min | 25700×g | 6×70ml |
5 | 12000r/min | 22470×g | 4×300ml |
6 | 14000r/min | 30200×g | 6×250ml |
7 | 14000r/min | 26952×g | 8×100ml |
8 | 12000r/min | 22470×g | 6×300ml |
9 | 10000r/min | 17800×g | 6×500ml |
10 | 18000r/min | 37600×g | 8×50ml |
