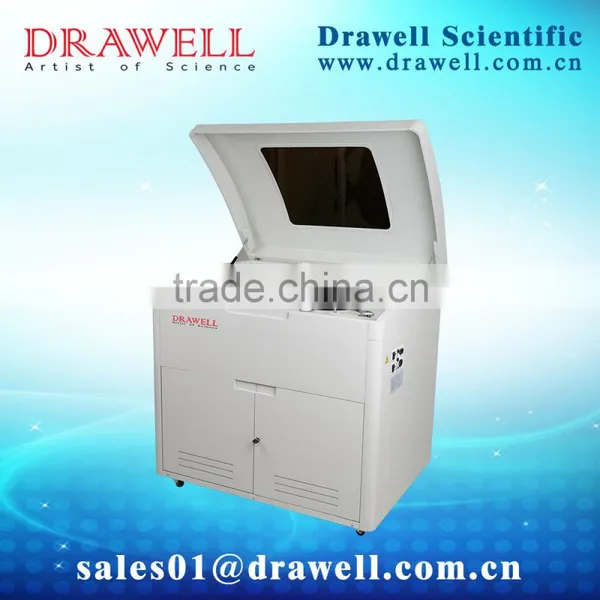

Drawell-Diamond Fully Automatic Lab Biochemistry Analyzer,2016 NEW

Overall

Performance

Model

Drawell-DIAMOND

Type

discrete, fully automatic

Throughput

400 T/H

Analysis Method

End-point, Fixed-time, Rate

Programming Items

programmable for any test items

Certification

CE, FDA, ISO9001, ISO14001, ISO13485

Sample unit

Sample Settings

60/90 sample positions, including calibration, quality control and emergency.

Sample Volume

2ul ~50ul (0.1ul stepping)

Sample Probe

Having liquid level induction function.

Probe cleaning

Automatic washing both interior and exterior

Analysis Items

analyzing maximally 45 items at the same time

Reagent unit

Reagent Position

R1:45 R2:45 total 90 refrigerated reagent position

Reagent Volume

R1:25~300ul, R2:10~150ul (1ul stepping), supporting reagent from different brand

Temperature Control

continuous 2C~8Ccooling within 24 hours

Reagent Probe

Having liquid level induction function

Probe cleaning

Automatic washing both interior and exterior

Reaction unit

Reaction Time

10 minutes

Temperature

37C±0.1C

Cuvettes

120 reaction cuvettes (optical path length 6mm)

Mixer

after injecting reagent and sample, blending immediately

Cleaning

automatic water cleaning and drying system

System Adjustment

System record the blank value and get more accurate result by deducting blank base value of each cuvette

Optical System

Light Source

12V/30W halogen-tungsten lamp, 2000 hours

Receiver

8 precision photo receivers

Wavelength Range

340,405,450,510,546,578,630,700mm

Calibration and QC

Calibration

one-point,multi-point

Linear Range

0.000~2.500Abs

Quality Control

Inserting quality control at random.

Software

Emergency Function

emergency sample can be arranged at any time

Software

Windows XP or 7, sample and easy to operate

Data Processing

Having reaction curve detection and data display function in whole process.

Others

Power Supply

AC220V+22V/50Hz+1Hz

Dimension

1070mm×910mm×1230mm (W*D*H)

Weight

180kg

Name

Unit

Quantity

Sample cup

One

1

Cuvettes

Pack(120 units)

1 pack

Reagent Probe

One

1

Sample Probe

One

1

Mixer probe

One

1

Fuse

One

1

Halogen lamp

One

1
