Home > Products > Autoclave / Sterilizer > Automatic Medical sterilizer with high quality

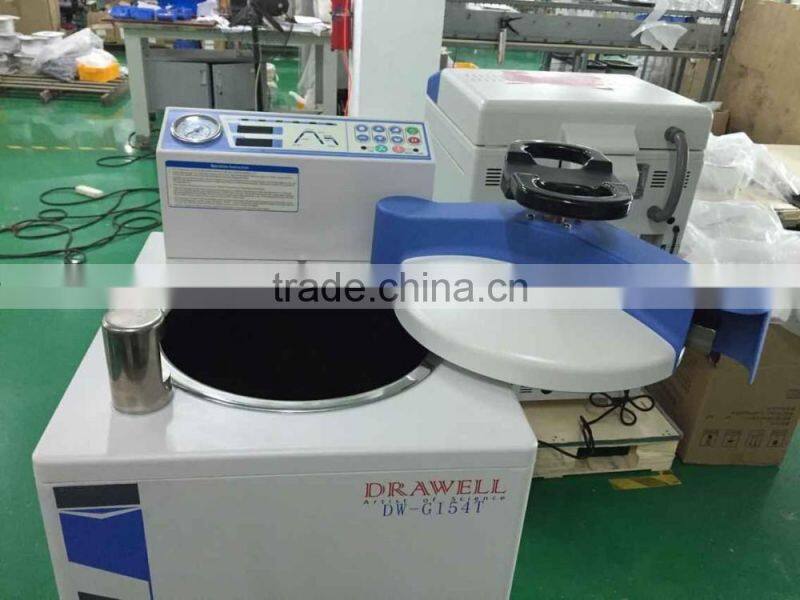

Automatic Medical sterilizer with high quality
- 200 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
You May Like
-
Flip type portable dental Sterilizer with low cost
-
Lab cheap large Capacity Autoclave with drying function
-
Flip type Automatic water feeding and fast cooling Autoclave
-
Full automatic Uniclave Series Autoclave with high quality
-
Automatically water feeding and cooling Sterilizer with high quality
-
Laboratory Automatic water feeding and fast cooling Autoclave with low cost
Product Details
| Type | Dry Heat Sterilization Equipments | Brand Name | DRAWELL | |
| Model Number | GI80TR | Place of Origin | Shanghai, China |
Product Description
GI T SERIES Autoclave
Type T: Semi-automatic, whole process shown by indicator
Type TW: Fully-automatic, whole process shown by flow chart
Type TR: Fully-automatic, drying function based on Type TW
GI36TR/GI54TR | GI36TW/GI54TW | GI36T/GI54T | ||
| GI80TR/GI100TR | GI80TW/GI100TW | GI80T/GI100T | |
Sterilization mode | Solid mode: Heating-Sterilizating-Exhausting | Yes | Yes | Exhauting controlled by a knob |
| Solidwithdrying mode:Heating-Sterilization-Exhausting-Water drainage-Drying | Yes | No | No |
| Liquid mode:Heating-Sterilizing-Precooling-Exhausing | Yes | Yes | Exhauting controlled by a knob |
| Liquid with warmingmode:Heating-Sterilizing-Precooling-Exhausting-Warming | Yes | Yes | No |
| Agar mode:Heating-Melting-Warming | Yes | Yes | Yes |
Preset range of exhausting temperature | 73-104℃ | 73-104℃ | Exhauting controlled by a knob | |
Preset range of drying time | 1-300min | No | No | |
Status flow chart that displays work processes | Yes | Yes | Status indicator | |
Timed startup | 0min-6days delayed | 0min-6days delayed | No | |
Procedures created | 60 | 60 | 20 | |
Specification Table
GI36T | GI54T | GI80T | GI100T | |
GI36TW | GI54TW | GI80TW | GI100TW | |
GI36TR | GI54TR | GI80TR | GI100TR | |
Capacity(L) | 36 | 54 | 80 | 100 |
Dimensions | 460x542x1070 | 460x542x1070 | 620x680x1040 | 620x680x1140 |
Chamber (Dia*H, mm) | 320×530 | 320×730 | 400×700 | 400×800 |
Rated power supply | 220V 50Hz/60Hz | |||
Rate power(W) | 2300 | 2900 | 4600 | 4600 |
working environment | 5℃-138℃,relative humidity 10%-85% | |||
Chamber material | SUS304 | |||
Sterilization temperature | 105—135℃ | |||
Range of melting time | 1—300min | |||
Melting temperature | 60—100℃ | |||
Range of melting time | 1—300min | |||
Preset range of warming temperature | 45—60℃ | |||
Preset range of warming time | 1—9999min | |||
Exhausting mode | Fully automatic internal discharging embedded with a steam trappingbottle | |||
Range of pressure gauge | 0-0.6MPa | |||
Controller | “SMART III” microcomputer control system | |||
Memory system | Memorable,no disappear even power off | |||
Safety device | Self-induction pressure interlocking device, over temperature protectionsystem, dry scorch protection system, overpressure protection, safety valve,over current and short circuit protection, cover inspection system, leakageprotection device, anti-scald safety protection and automatic troubleshootingsystem | |||
Stainless steel basket | 2pieces | 3pieces | 3pieces | 3pieces |
Optional parts | Printer and printing set | |||
Drawell After Sales Service-----Please don't worry, our products are superior in quality, If you have any problems, please feel free to let us know, we are glad to support as below:
* Good quality firstly to avoid any defective products ;
* Operation Manuals in English ; installation & operation vedio will be provided to you as guidance ;
* We could provide Online instruction ;
* During warranty time, we can send product accessories when you need;
* Your technicians can come to our factory for training , Drawell engineers can go your place for support ( cost on your side );
* Products can be customized according to your requirements;
* Generaly the machine can use 5~10 years for average even longer if you use properly.
