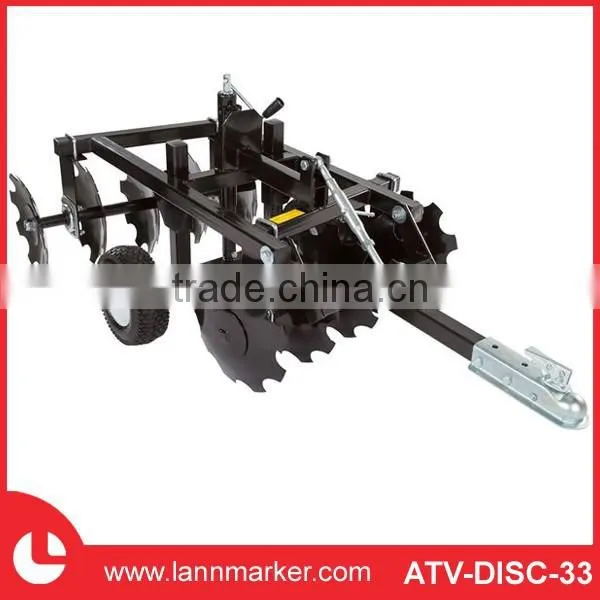

Tow-Behind ATV Disc Harrow
35" Wide Tow-Behind Disc Harrow for ATV UTV and Garden Tractors
♦ OVERVIEW:

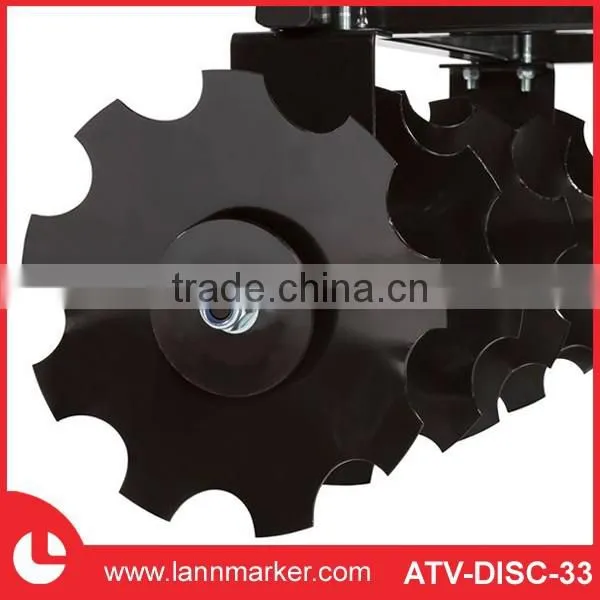

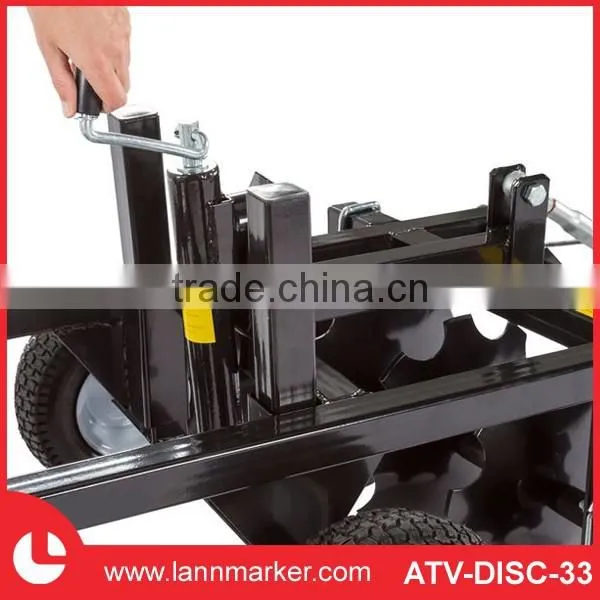

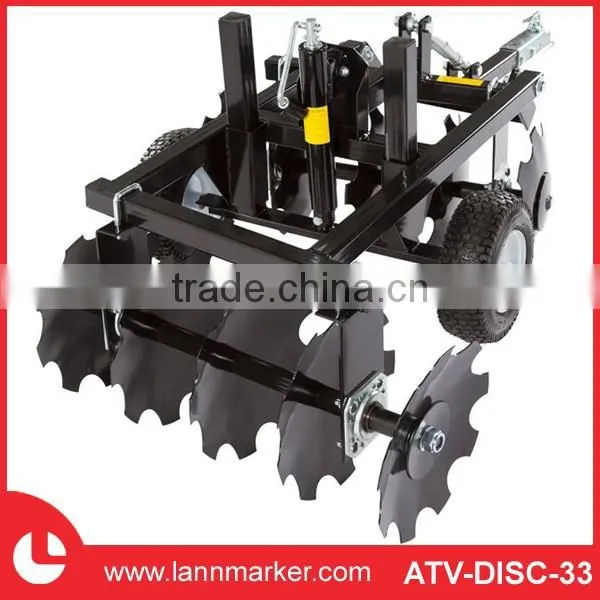

The Lannmarker tow-behind ATV harrow is a durable, compact, and effective tool for soil cultivation and yard prep work. Ten 14" steel disc blades can be adjusted for a depth of up to 4", and span a working width of 35". Simply attach to your ATV, UTV, or tractor 2" ball hitch, tow it to your worksite, lower the steel disc blades with a few easy turns of the integrated crank, and drive! The compact design allows you to easily store the pull-behind disc harrow when not in use.
Assembly takes approximately one hour. Certain jobs may require additional weight to be added on top of the ATV disc harrow.
♦ SPECIFICATION:

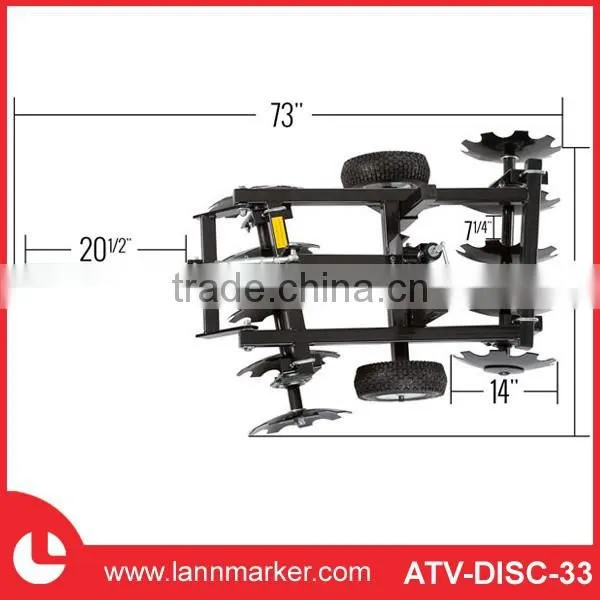

| Length: | 73" |
| Width: | 35" |
| Height: | 27-1/2" |
| Weight: | 270 lbs |
| Material: | Steel |
| Disc Diameter: | 14" |
| Disc Thickness: | 1/8" |
| Disc Spacing: | 7-1/4" |
| Center Tube Diameter: | 2-3/8" |
| Coupler Ball Size: | 2" |
| Clearance: | 20-1/2" |
| Square Tube Frame: | 2" x 2" |
| Wheel Diameter: | 12" |
| N.W.: | 103 kgs |
| G.W.: | 123 kgs |
| Packing Size: | 111x74x43 cm |
| Container Loading: | 70 pcs/20'GP |

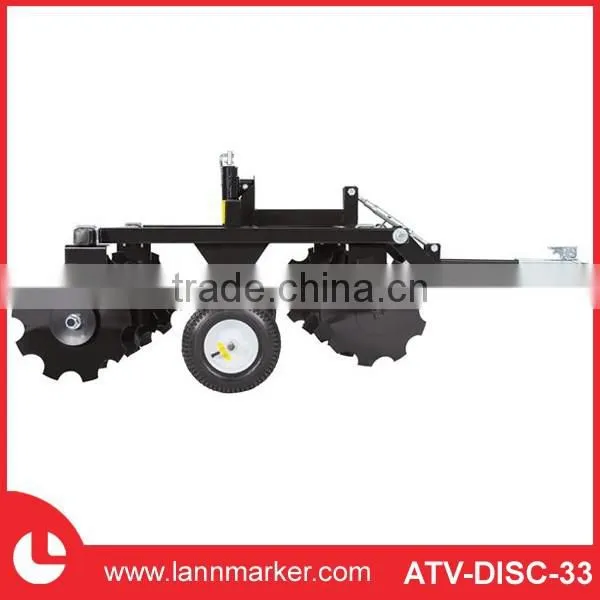

♦ DETAILED IMAGES:
