2017 New Model Smart Electric Mountain Bike

2017 New Model Smart Electric Mountain Bike photo-1
2017 New Model Smart Electric Mountain Bike photo-2

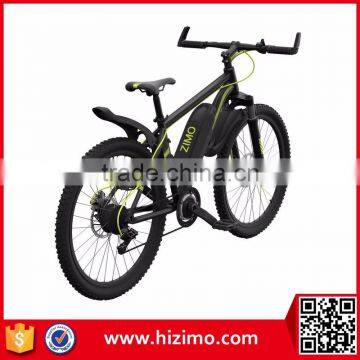

2017 New Model Smart Electric Mountain Bike photo-3

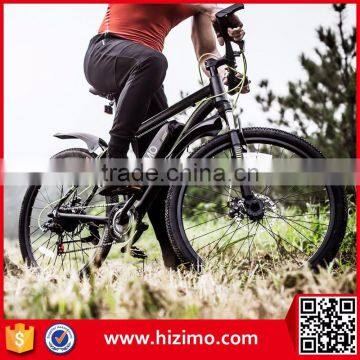

2017 New Model Smart Electric Mountain Bike photo-4

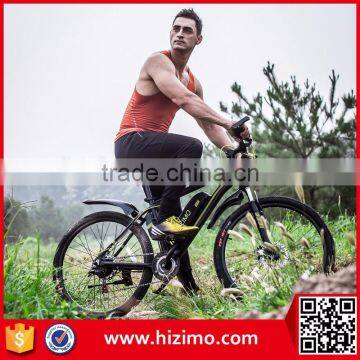

2017 New Model Smart Electric Mountain Bike photo-5

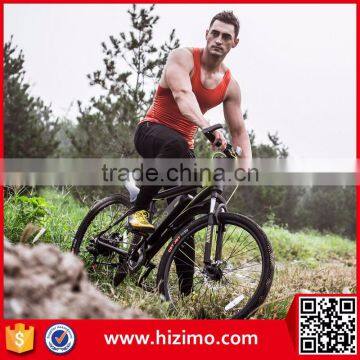

2017 New Model Smart Electric Mountain Bike photo-6
US$ 1 - 500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Wattage:
200 - 250w
Voltage:
36V
Power Supply:
Lithium Battery
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Wattage 200 - 250w
Voltage 36V
Power Supply Lithium Battery
Wheel Size Other, 26“
Motor Brushless
Certification CE
Frame Material Aluminum Alloy
Foldable No
Max Speed 30-50km/h
Range per Power 31 - 60 km
Place of Origin Shanghai, China
Brand Name ZIMO
Model Number Electric Mountain Bike
Electric Bike X3
SPECIFICATION
ZIMO X3
ZIMO X3 Pro
Frame
Aluminium Alloy Frame
Aluminium Alloy Frame
Fork
Suspension Front Fork
Suntour Hydraulic Lockable Suspension Fork
Headset
Threadless
Threadless
Brake
Front / Rear Disc Brake
Shimano M315 Hydraulic Disc Brake
Rim
26‐inch
26‐inch
Transmission
Shimano TOURNEY Derailleur Set
Shimano ALTUS Derailleur Set
Stem
φ 31.8

φ 31.8

Seat tube (post)
φ27.2*300*1.4T
φ27.2*300*1.4T
Grips
Rubber
Rubber
Dimensions
1700x620x970 mm
1700x620x970 mm
WheelBase
1050mm
1050mm
Weight
20KG
20KG
Battery Type
Panasonic Lithium Battery 5.2Ah
Panasonic Lithium Battery 8.8Ah
Battery Range
40‐50Km
80‐120Km
Load Capacity
150 KG
150 KG
Nominal Voltage
36V
36V
Motor Type
Permanent Magnetic Synchronous Motor
Permanent Magnetic Synchronous Motor
Rated Output Power
250 W
250 W
Net Weight
20 KGS
22 KGS
Gross Weight
25 KGS
27 KGS
Carton Dimension
143x27x73 cm
143x27x73 cm
Container Loading
96 pcs/20GP 192 pcs/40GP
96 pcs/20GP 192 pcs/40GP

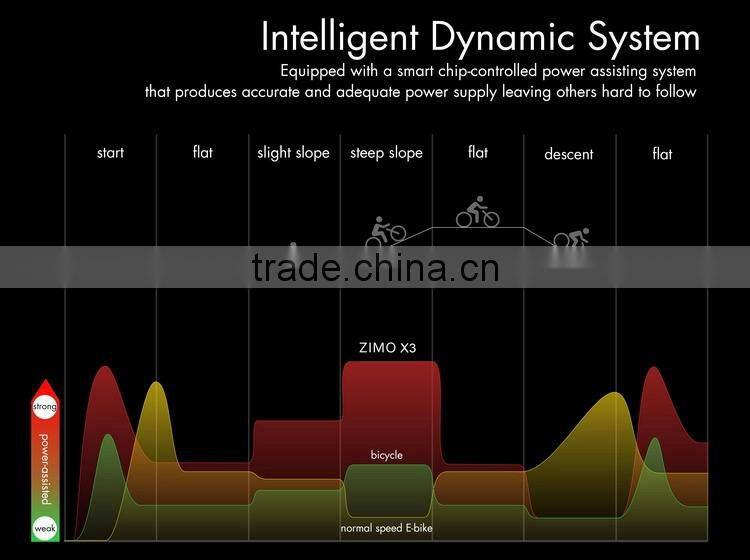

The smart drive system, a core technology of our ebike, enables the pedelec to automatically sense road conditions, read user's riding intentions and output power assist in a real time manner. It has reached the highest level in terms of precision measurement, response speed and service life cycle.

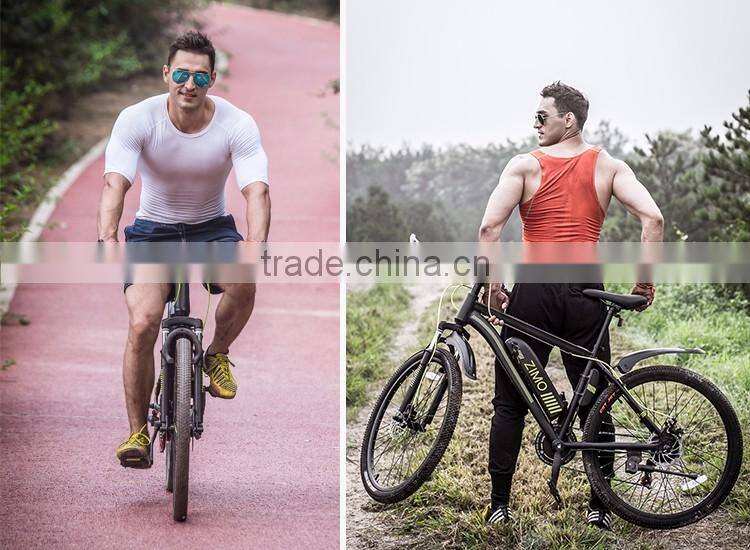

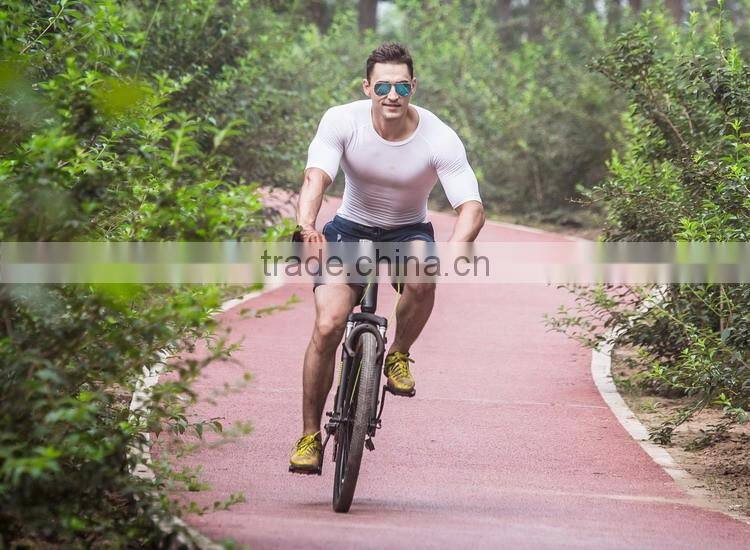

More Photos
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Certifications
FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
