800cc ATV 4X4

800cc ATV 4X4 thumbnail-1
800cc ATV 4X4 photo-1
US$ 5,000 - 6,000 MOQ: 8 Pieces
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
>300cc
Engine Type:
4 Stroke
Contact Supplier Request Quote Chat Now
Shanghai Lannmarker Vehicle & Accessories Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Gas / Diesel
Engine Type 4 Stroke
Transmission Type Automatic
Transmission System Shaft Drive
Certification Other, EEC & EPA
Brand Name Lannmarker
Place of Origin Shanghai, China

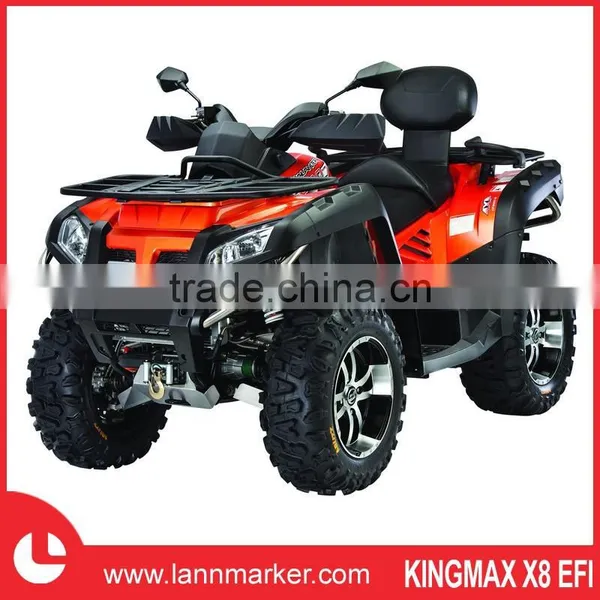

Model Number KINGMAX X8 EFI

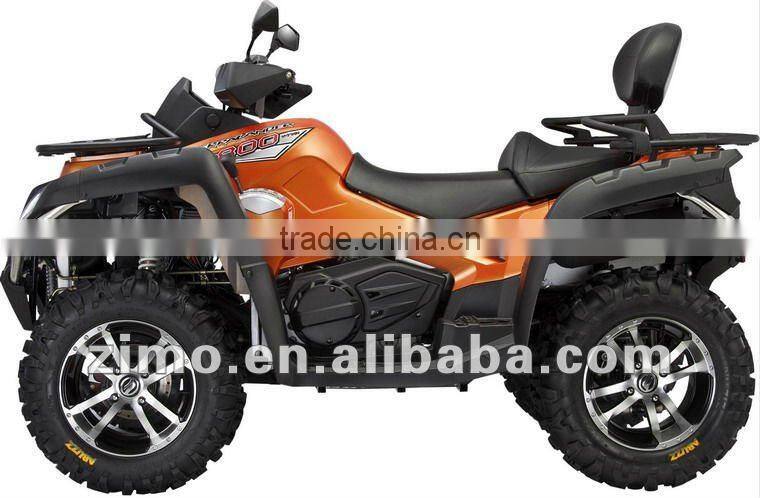

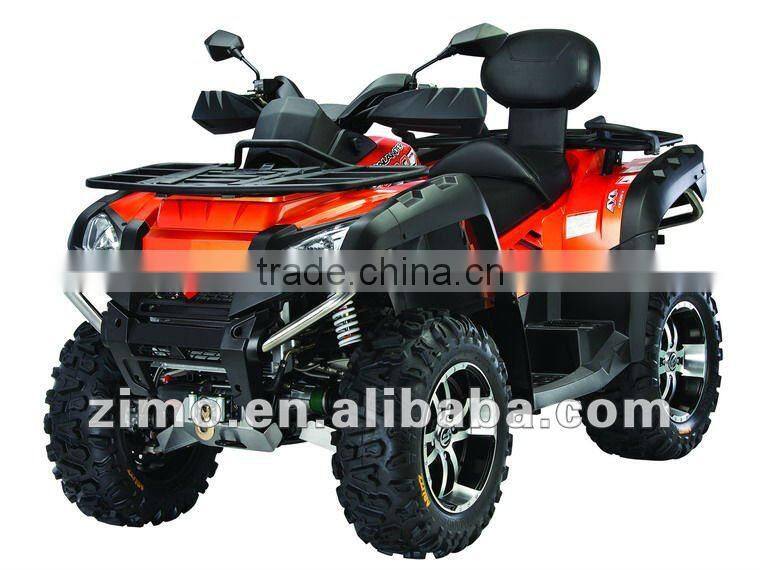

800cc ATV 4X4



Powerful engine
The 800cc V-Twin EFI engine with SOHC, Liquid cooled, 4 stroke, 4 valves per cylinder.
Output: 46kw/6700rpm (61.69HP/6700 rpm)

Maximum power and functionality
With powerful engine, it carries a total of 562lbs/255kgs of load; The built-in rack is conveniently to keep and use the tools.

Powerful and faster speed
X8 features a 800cc V-Twin, EFI utility ATV, the best utility ATV in its class. With strong, powerful engine the X8 lets you ride the fastest, safest in the real all terrain.

4WD/2WD and Differential lock
When you need more traction, the 4X4 system applied by hand switch easily and quickly.

Independent Rear Suspension
X8 features a special IRS keeping a smoother ride and less squat during acceleration.

High Performance and Features
Rear hand grip ensures passenger safety.

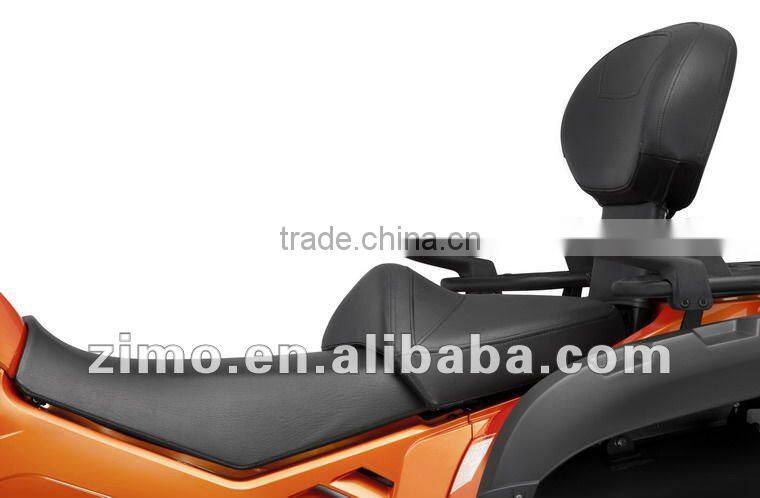

The ergonomic seatback improves passenger comfort.
Design for work and fun: riding, hunting.

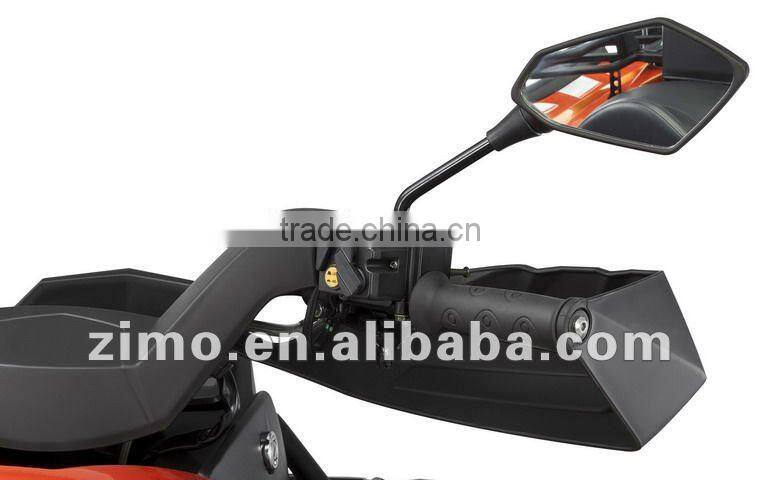

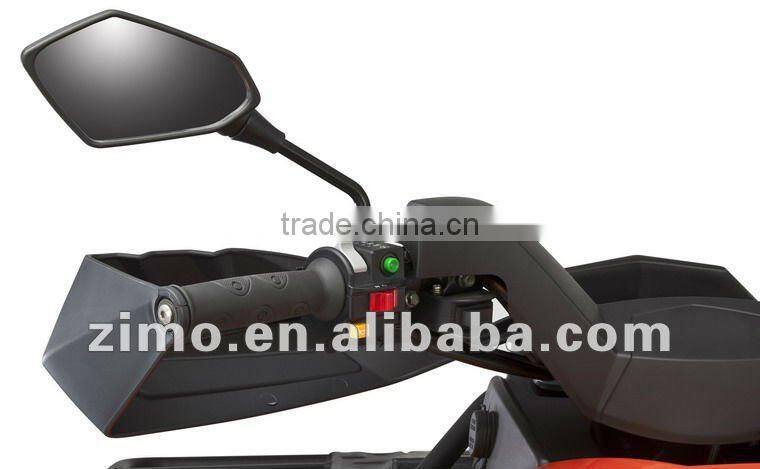

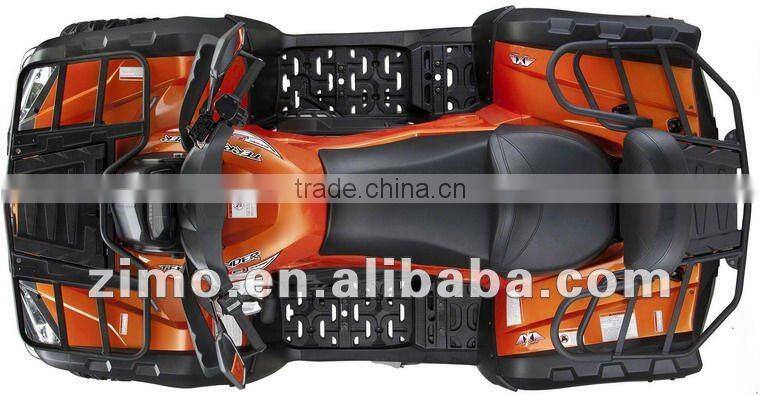

 800cc ATV 4X4



800cc ATV 4X4



800cc ATV 4X4



800cc ATV 4X4



800cc ATV 4X4



800cc ATV 4X4



800cc ATV 4X4





SPECIFICATION
ENGINE
Engine Type V-Twin, 4 Valves, 4 Stroke
Displacement 800cc
Bore x Stroke 91 X 61.5mm
Compression 10.3 : 1
Fuel System Electronic Fuel Injection
Cooling System Water Cooled
Ignition ECU
Max. Power Output 48kw/6600r/min
Max. Torque 70kw/6300r/min
Fuel Capacity 23L
Lubrication System Pressure & Splash
Starting System Electric Start
Transmission Mode Automatic CVT with H/L/N/R
Final Drive Shaft Drive 4WD
Shift Switch(2WD/4WD) YES
Wheels and Brakes
Tyres Front 26×9-12
Tyres Rear 26×11-12
Wheels Front/Rear 12×6.0 / 12×7.5
Suspension Front / Rear Double wishbone Independent Suspension
Brakes Front / Rear Hydraulic Braking
Dimensions and Weight
Product Dimension(LxWxH) 2,320 X 1,180 X 1,400mm
Carton Dimension(LxWxH) 2,320 X 1,220 X 1,100mm
Seat Height 530 mm
Wheelbase 1,490mm
Ground Clearance 275mm
Dry Weight 395kg
Gross Weight 467kg
Container Loading 8 units/20'GP;   18 units/40'HQ





MORE MODELS



800cc ATV 4X4



800cc ATV 4X4



800cc ATV 4X4



800cc ATV 4X4
