Super Strong Permanent N35-N52(M,H,SH,UH,EH) Disc Ndfeb N42 Magnet

Product name: Super strong Permanent N35-N52(M,H,SH,UH,EH) disc ndfeb n42 magnet

Disc Magnet Specification:

 1.Shape: Disc, Customized Design (Design proper magnets for clients specific requirements)

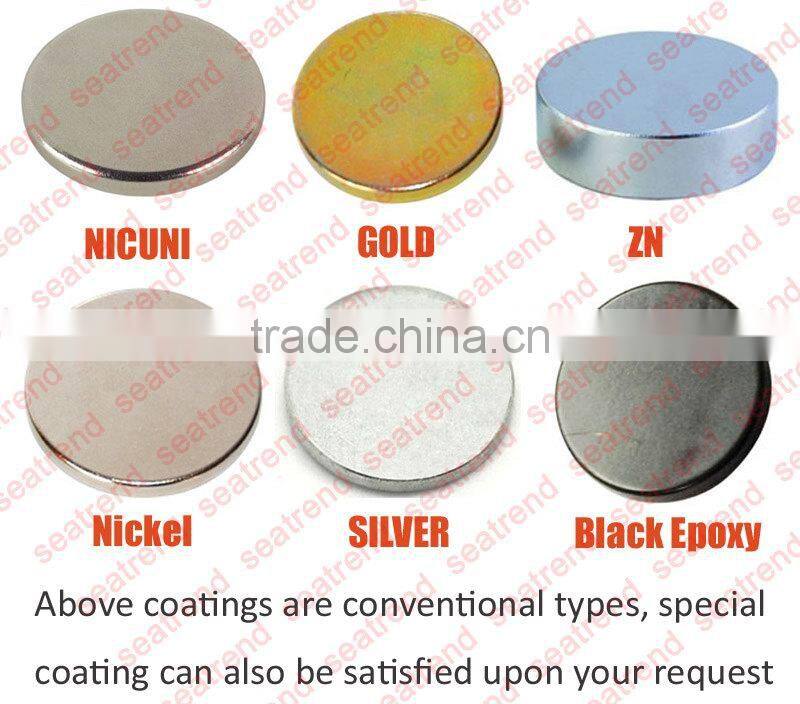

 2.Coating: Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more.

  3. Grades Range: N35-N52; N35M-N50M; N35H-N48H, N35SH-N45SH; N30UH-N40UH, N30EH-N38EH

                                   -The grade like N48-N52 could meet your requirements on strong power

                                  -Standard one like N35 or N40 is okay for your normal applications

4.Maximum Working Temperature:

 N35-N52,     80°C(176°F)

 35M-50M,     100°C(212°F)

 35H-48H,    120°C(248°F)

 35SH-45SH,  150°C(302°F)

 33UH-40UH,  180°C(356°F)

 33EH-38EH,  200°C(392°F)

 28AH-35AH,  220°C(428°F)

 5.Tolerance:

 +/-0.05mm for small dimensions,

 +/-0.1mm for common specifications,

 +/-0.15mm for big blocks

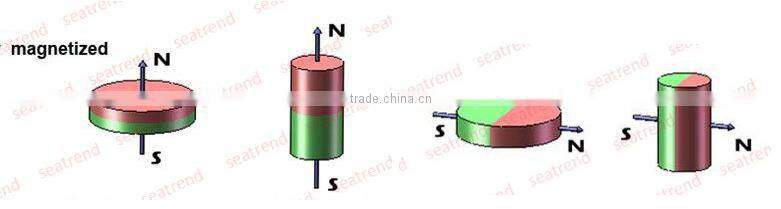

6. Directions of Magnetization:

 a. Axially Magnetized

 b. Diametrally Magnetized

 c. Radial Magnetized

 d. Multi-poles magnetized

 e. Customzied specific requirements magnetized

 Technology Advantage: We have professional technical staff, the remarkable technology research center, large scale production factory

 Price Advantage:We take The centralization, scale production, reduce the cost . In the same quality products,our price is cheaper than industry average.

 Export Standard Cartons are supplied with foam well protected. We can make the packages according to customer's request. Sea packages and air packages are both available

 Application:

 Sintered NdFeB Magnets are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, VCMs in hard disk drives, printer, switchboard, loudspeakers, magnetic separation, magnetic hooks, NdFeb Disc Magnet, magnetic holder,  rare earth ndfeb magnet, magnetic chuck, common daily use, and so on.
