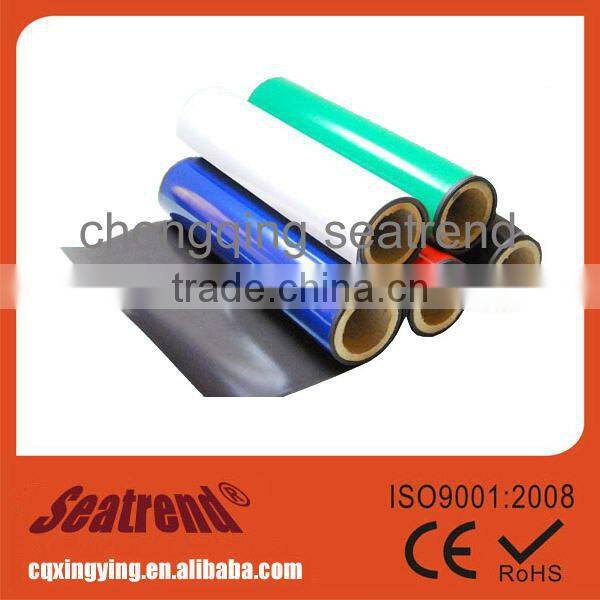

Product name: 2016 High quality Hot sale high quality plastic magnets
1.Grade: N33, N35, N38, N40, N42, N48, N50, N52 (M, H, SH, EH, UH,AH)
2.Shape: Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized Design (Design proper magnets for clients specific requirements)
3.Coating: Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more.
4.Maximum Working Temperature:
N35-N52, 80°C(176°F)
35M-50M, 100°C(212°F)
35H-48H, 120°C(248°F)
35SH-45SH, 150°C(302°F)
33UH-40UH, 180°C(356°F)
33EH-38EH, 200°C(392°F)
28AH-35AH, 220°C(428°F)
5.Tolerance:
+/-0.05mm for small dimensions,
+/-0.1mm for common specifications,
+/-0.15mm for big blocks
6. Directions of Magnetization:
a. Axially Magnetized
b. Diametrally Magnetized
c. Radial Magnetized
d. Multi-poles magnetized
e. Customzied specific requirements magnetized
Application:
Hot sale high quality plastic magnets are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, VCMs in hard disk drives, printer, switchboard, loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, common daily use, etc.
Magnetic Characteristics:
| Material Type | Residual Flux Density (Br) | Coercive Force (Hc) | Intrinsic Coercive Force (Hci) | Max.Energy Product (BH)max |
| N35 | 11.7-12.1 KGs | >11.0 KOe | >12 KOe | 33-35 MGOe |
| N38 | 12.2-12.6 KGs | >11.0 KOe | >12 KOe | 36-38 MGOe |
| N40 | 12.6-12.9 KGs | >11.0 KOe | >12 KOe | 38-40 MGOe |
| N42 | 13.0-13.2 KGs | >11.0 KOe | >12 KOe | 40-42 MGOe |
| N45 | 13.3-13.7 KGs | >11.0 KOe | >12 KOe | 43-45 MGOe |
| N48 | 13.8-14.2 KGs | >11.0 KOe | >12 KOe | 45-48 MGOe |
| N50 | 14.1-14.5 KGs | >11.0 KOe | >11 KOe | 48-50 MGOe |
| N52 | 14.5-14.8 KGs | >11.2 KOe | >11 KOe | 49.5-52 MGOe |
| N35M | 11.7-12.1 KGs | >11.4 KOe | >14 KOe | 33-35 MGOe |
| N38M | 12.2-12.6 KGs | >11.4 KOe | >14 KOe | 36-38 MGOe |
| N40M | 12.6-12.9 KGs | >11.4 KOe | >14 KOe | 38-40 MGOe |
| N42M | 13.0-13.3 KGs | >11.4 KOe | >14 KOe | 40-42 MGOe |
| N45M | 13.3-13.7 KGs | >11.4 KOe | >14 KOe | 42-45 MGOe |
| N48M | 13.6-14.2 KGs | >11.4 KOe | >14 KOe | 45-48 MGOe |
| N50M | 14.1-14.5 KGs | >11.4 KOe | >14 KOe | 48-50 MGOe |
| N33H | 11.4-11.7 KGs | >10.3 KOe | >17 KOe | 31-33 MGOe |
| N35H | 11.7-12.1 KGs | >10.8 KOe | >17 KOe | 33-35 MGOe |
| N38H | 12.2-12.6 KGs | >11.4 KOe | >17 KOe | 36-38 MGOe |
| N40H | 12.6-12.9 KGs | >11.4 KOe | >17 KOe | 38-40 MGOe |
| N42H | 13.0-13.3 KGs | >11.4 KOe | >17 KOe | 40-42 MGOe |
| N45H | 13.3-13.7 KGs | >11.4 KOe | >17 KOe | 42-45 MGOe |
| N48H | 13.6-14.2 KGs | >11.4 KOe | >16 KOe | 45-48 MGOe |
| N30SH | 10.8-11.2 KGs | >10.1 KOe | >20 KOe | 28-30 MGOe |
| N33SH | 11.4-11.7 KGs | >10.3 KOe | >20 KOe | 31-33 MGOe |
| N35SH | 11.7-12.1 KGs | >10.8 KOe | >20 KOe | 33-35 MGOe |
| N38SH | 12.2-12.6 KGs | >11.4 KOe | >20 KOe | 36-38 MGOe |
| N40SH | 12.6-12.9 KGs | >11.4 KOe | >20 KOe | 38-40 MGOe |
| N42SH | 13.0-13.3 KGs | >11.4 KOe | >20 KOe | 40-42 MGOe |
| N45SH | 13.3-13.7 KGs | >11.4 KOe | >19 KOe | 43-45 MGOe |
| N28UH | 10.4-10.8 KGs | >9.8 KOe | >25 KOe | 26-28 MGOe |
| N30UH | 10.8-11.2 KGs | >10.1 KOe | >25 KOe | 28-30 MGOe |
| N33UH | 11.4-11.7 KGs | >10.3 KOe | >25 KOe | 31-33 MGOe |
| N35UH | 11.7-12.1 KGs | >10.8 KOe | >25 KOe | 33-35 MGOe |
| N38UH | 12.2-12.6 KGs | >11.4 KOe | >25 KOe | 36-38 MGOe |
| N40UH | 12.6-12.9 KGs | >11.4 KOe | >25 KOe | 38-40 MGOe |
| N28EH | 10.4-10.8 KGs | >9.8 KOe | >30 KOe | 26-28 MGOe |
| N30EH | 10.8-11.2 KGs | >10.1 KOe | >30 KOe | 28-30 MGOe |
| N33EH | 11.4-11.7 KGs | >10.3 KOe | >30 KOe | 31-33 MGOe |
| N35EH | 11.7-12.1 KGs | >10.8 KOe | >30 KOe | 33-35 MGOe |
| N38EH | 12.2-12.6 KGs | >10.8 KOe | >30 KOe | 36-38 MGOe |
Magnetization:
Technology Advantage: We have professional technical staff, the remarkable technology research center, large scale production factory
Price Advantage:We take The centralization, scale production, reduce the cost . In the same quality products,our price is cheaper than industry average.
Applications of magnets
Packing:
This information is verified bycompany
Xinchang Magnet Industry Co.,Ltd.
Sales Manager : Richard Chen
Chongqing Seatrend Imp & Exp Trading Co.,Ltd.
(Bureau Veritas certified company,handling export affairs)
Office Add: Unit 1-3,Bldg 12,No.8,Shuangfengshan Rd.,
Economic and Technological Development Zone,Chongqing,China
P.C.:400060 QQ:51590951
TEL:0086-23-62534876 FAX:0086-23-62534875
M.P.:0086-18696725118 Skype:richard083559
website:
