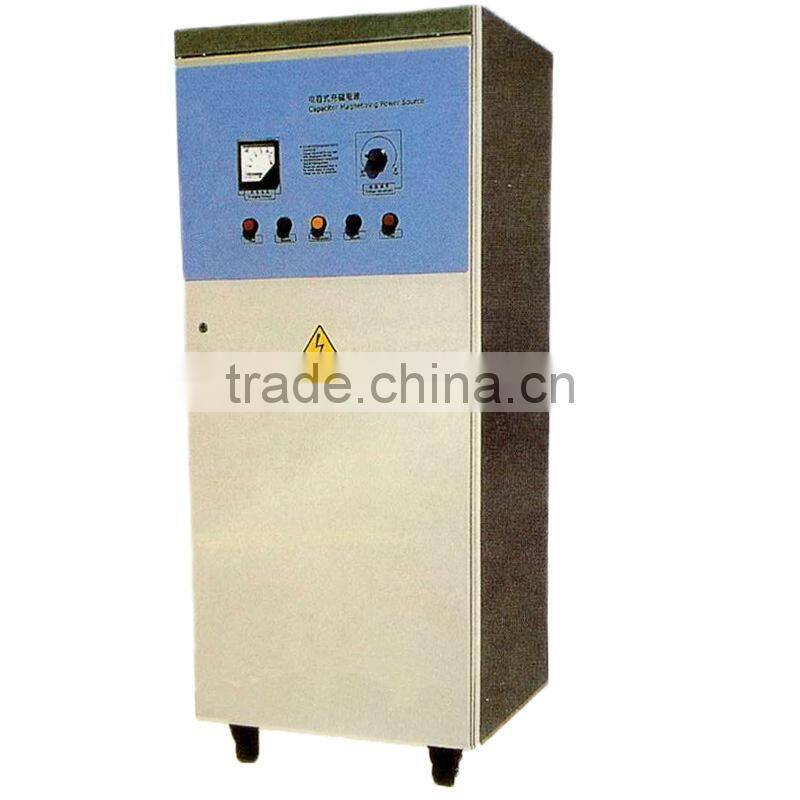

High Current Type impulse magnetizer demagnetizer
¤ Description ¤
High pressure oil immersion capacitor, voltage DC50-1100V any tune, speed 1-3 seconds. Products using low power design: Environmental protection and energy saving, magnetizing machine of continuous work, water, get rid of the bad heat burden; The body does not heat, using no polarity without loss without recoil energy storage capacitor, machine performance is stable.
¤ Main Features ¤
This Type is featured by its extremely short magnetizing current pulse width, and little heat generation in the magnetizing fixture. It is most suitable for magnetizing multi-pole rare-earth ( annulus multi-pole and plane multi-pole ), motors and brushless motors. The magnetizer is error proof even at output short circuit conditions.
Magnetic materials with low or high magnetism (such as Ferrite and NdFeB) can be magnetized and demagnetized.
Types of magnetizer:

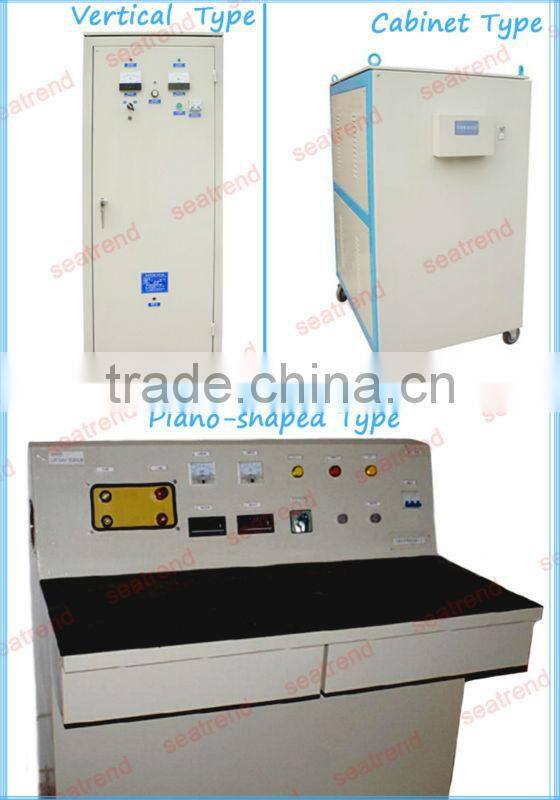

According to shape: horizontal type, vertical type, cabinet type, piano-shaped type and etc..
According to function: head magnetizer, demagnetizer, horn magnetizer, multi-pole magnetizer, stepper motor magnetizer and custom as per your requirements.
¤ Parameters ¤
Magnetizer
Model |
DCD-2500 / 3-16 |
DCD-2500 / 5-16 |
DCD-2500 / 5-30 |
|||
DCD-2500 / 3-16T |
DCD-2500 / 5-16T |
DCD-2500 / 5-30T |
||||
Input Power |
AC220V 50-60Hz 30A |
|||||
Max Output Current |
30,000A |
50,000A |
||||
Charge Voltage |
DC50-2500V |
|||||
Repeat Precision Of Charge Voltage |
±10V |
|||||
Charge Time |
5s |
10s |
||||
The Capacity Of Condenser |
1600μF |
3000μF |
||||
Main Switch |
SCR |
|||||
Interior Discharge Circuit |
Have |
|||||
Enclosure Dimensions |
600Wx800Dx1400H |
|||||
Weight |
260Kg |
350Kg |
||||
¤ Application ¤
Our magnetizer is for permanent magnet materials producing including alnico,ferrite and rare earth,magnets find their applications in automobile industry.
Loudspeakers, motor assemblies, windmill, Home appliance, acoustics, communication equipment, toy, car, servomotor, step motor, DC motor and linear motor, microphones.
¤ Overview
¤
Other Type
Magnetizer Accessary

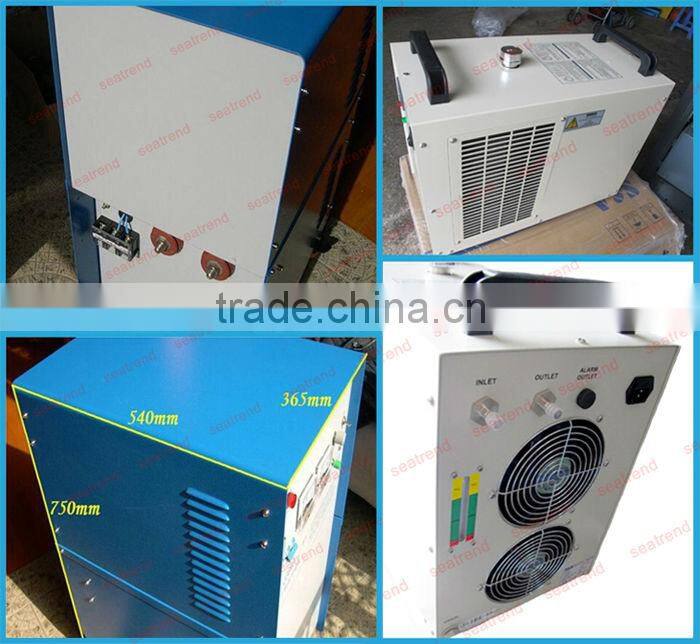

Details
Hot Sale

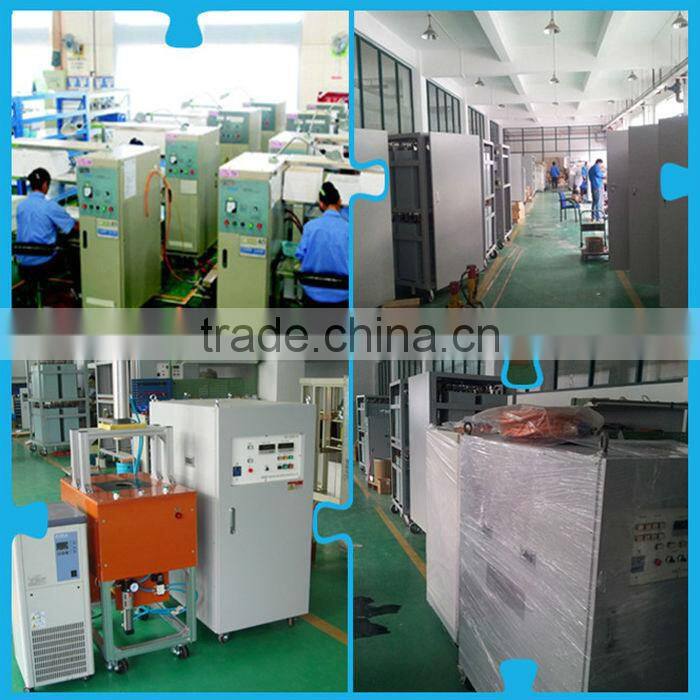

Our Factory
Packaging
¤ Delivery ¤
We could provide three options for shipping:
1)By express(FedEx, UPS, DHL, TNT, EMS, etc...)
--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door
--- Disadvantage: A little expensive
Usage: be badly in need of goods, ≤ 45kg
2)By Air Transportation
--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.
--- Disadvantage: You need to take the goods from the airport by yourself.
Usage: urgent goods, >45kg
3)By Sea ( Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
--- Disadvantage: Slow and you need to take the goods from your destination port by yourself.
Usage: bulk goods, >45kg
¤ About Us ¤
¤ Our Advantages ¤
1. Seatrend is a professional magnetic assembly manufacturer who has more than 10 years experience in this field and could produce magnets as per your requests or designs.
2. We delivery goods in time and have excellent after-sale service.
3. Committed to customers with our best service and the most that we can do for you.
4. Samples are always available; welcome your inquiry.
¤ Service ¤
1)Any question or problem will be answered within 24 hours.
2)One year guarantee:All the spare parts broken in one year,we will provide free parts for you.
3)Lifetime service:Any problem happened to our products, we will do our best to help customers solve it. Spare parts will be half price in lifetime.
4)Problem solving: If you can't solve the problem in your local, pls deliver the machine to us, we will repair it.
We also could supply other kinds of magnetizer / demagnetizer machine
Small capacitance type magnetizer :
suitable for magnetizing Ferrite magnets, small and medium size ALNiCo magnets, rubber magnets, small rare earth magnets, small motors, and loudspeakers
High current type magnetizer/demagnetizer
suitable for magnetizing multi-pole rare-earth , motors and brushless motors.
Intelligent defined value magnetizer/demagnetizer
lt has function of precise magnetizing, demagnetizing, and reducing magnetism with closed loop control for magnetic pieces.
If you want to know more about Magnetizer, and inorder to give you the newest and complete quotation about the Magnetizer, please contact us without hesitation.
