Customized ring sintered alnico magnets
- 20 Ton / Tons per Month
- shanghai chongqing
- T/T L/C D/P D/A Credit Card PayPal
- POTF08-48 Powerful Magnetic Hook
- Magnets for consumer electronics, medical devices, industry, and technology
- Circular magnet, square magnet, irregular magnet, perforated magnet
- Jewelry magnet gift magnet motor magnet health magnet non-standard customization
- Earphone magnets, luggage magnets, stationery magnets, toy magnets, customized magnets
- Wireless charging magnet, receiving end magnet, transmitting end magnet
Product Details
Place of Origin: | Chongqing, China | Brand Name: | seatrend | Model Number: | N35-N52 |
Type: | Permanent | Composite: | AlNiCo Magnet | Shape: | Other, cylinder, Block,Sheet,Bar.disc.Stick .Cube. ring, cylinder.... |
Product Description
Specification:
Product Name: Customized ring sintered alnico magnets
1.Grade: Alnico 2,Alnico 3,Alnico 5 etc.

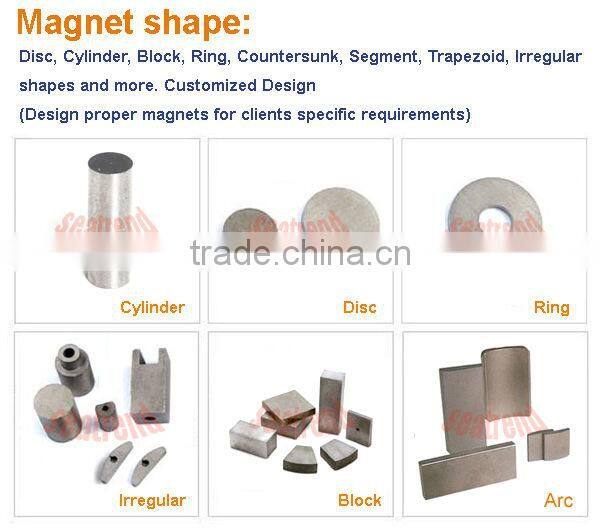

2.Shape: Disc, Cylinder, Block, Ring, Segment, Trapezoid, Irregular shapes and more.
Customized Design (Design proper magnets for clients specific requirements)
3.Packing: Export Standard Cartons are supplied with foam well protected. We can make the packages according to customer's request. Sea packages and air packages are both available
4.Sorts: We have Disc Alnico magnets, Segment Alnico magnets, Ring Alnico magnets, Block Alnico magnets, U Shape Alnico Magnets, Cylinder Alnico magnets, Irregular Alnico magnets, Sintered Alnico magnets, Bonded Alnico magnets, Cast AlNiCo Magnets and many other series.
Aluminum-Nickel-Cobalt magnets are used extensively in aerospace applications, automotive, consumer goods, and medical devices.Sintered Alnico magnets has marginally lower magnetic properties, but better mechanical properties, than cast Alnico. Both are hard and brittle materials. They require skillful machining that is best performed on specialized equipment.
Alnico (Aluminum-Nickel-Cobalt) Magnet is high-energy permanent magnet, which posses high flux density, high coercive, high energy product and extreme stability for temperature changes. It exhibits good resistance to demagnetization, stability in high temperatures and excellent conduction.
Advantages for using Alnico:
*Excellent temperature characteristics
*Capable of working at a wide range of temperature up to 550 degrees centigrade.
*High field strengths at medium prices
*Easy of magnetizing, The lower coercive force of Alnico makes magnetizing a simple matter in most cases
*Compatible with most painting or plating systems (including nickel and copper)
Charasteristics:
*Suitable for small volume magnet with complex shape;
*Compact crystal, high intensity;
*Regular shape, precision size;
*Even elements, stable performance;
*Suitable for compound magnet;
*Excellent temperature stability (temp. coefficient of Br is the smallest among all of the other permanent magnets.)
Alnico permanent magnet have three kinds of different production process: casting , sintered , bonded.

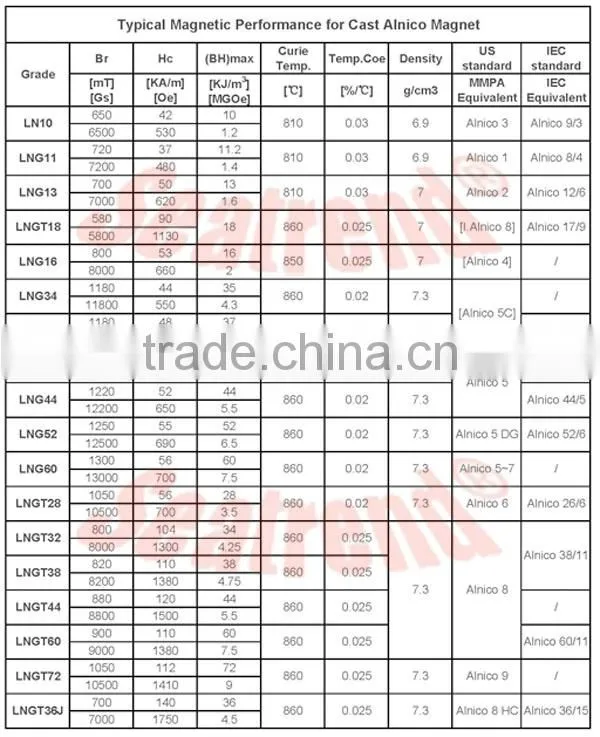

Cast alnico magnet production process:
Incoming inspection----Mixing----Melting---Casting---Heat Treatment---Tumbling---Magnetic Inspection---Machining---Cleaning and Drving---Machining Inspection---General Inspection---Package---Storage
Sintered alnico magnet production process:
Incoming inspection---Mixing---Powder---Pressing---Sintering---Heat Treatment---Mangentic Inspection---Machining---Cleaning and Drving---General Inspection---Package---Storage

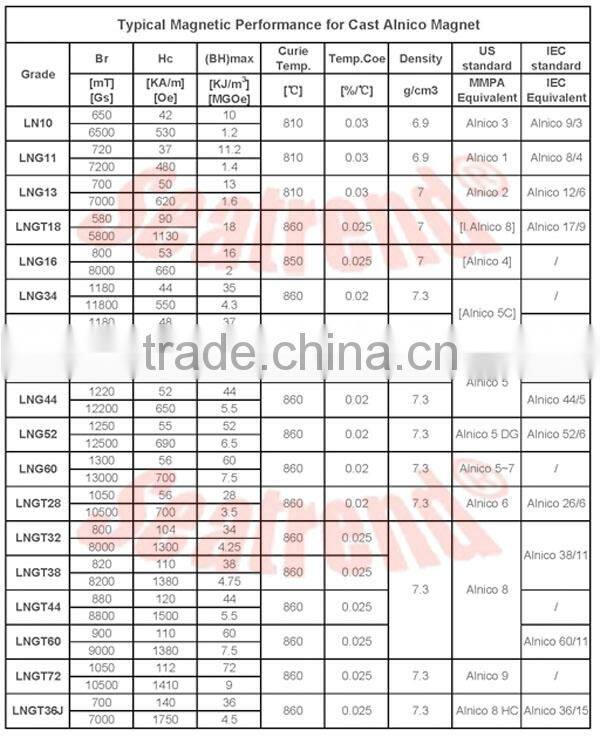

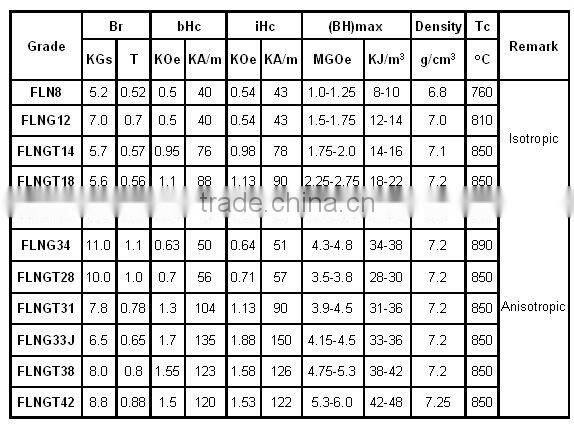

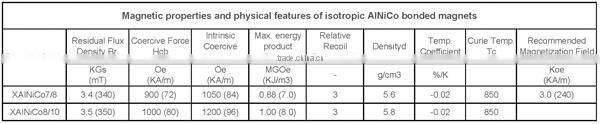

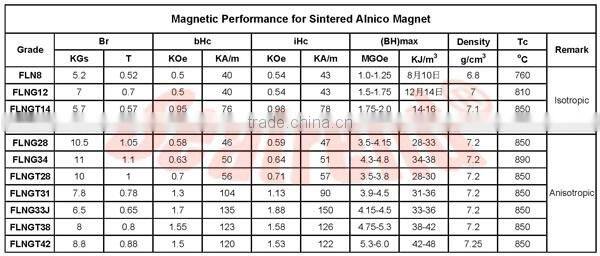

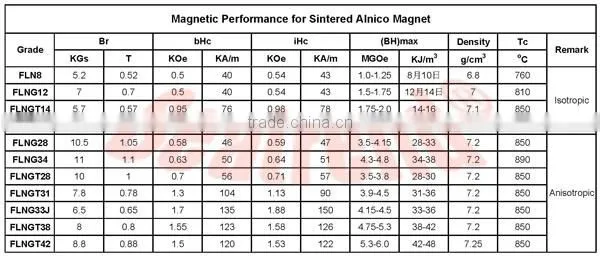

Magnetic properties:

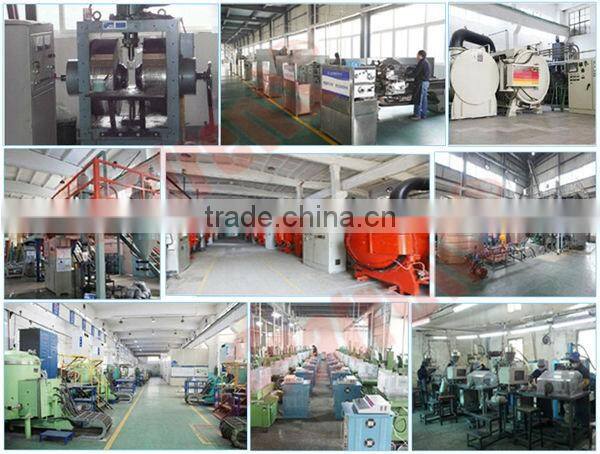

Technology Advantage: We have professional technical staff, the remarkable technology research center, large scale production factory
Price Advantage:We take The centralization, scale production, reduce the cost . In the same quality products,our price is cheaper than industry average.
Export Standard Cartons are supplied with foam well protected. We can make the packages according to customer's request. Sea packages and air packages are both available
Applications of magnets:
Packing:
This information is verified by company.
1) We are manufacturer,we have our own factory.
2) Chongqing Seatrend Imp & Exp Trading Co., Ltd. is we are mainly
responsible for handling the export affairs of our group company.
We can also produce according to your requirements.
For more detail information, please feel free to visit our website or to contact us directly or send us email inquire at any of your convenience.
We will reply your special request immediately or within 8 hours if we are at night.
Xinchang Magnet Industry Co.,Ltd.
Sales Manager : Richard Chen
Office Add: Unit 1-3,Bldg 12,No.8,Shuangfengshan Rd.,
Economic and Technological Development Zone,Chongqing,China
P.C.:400060 QQ:51590951
TEL:0086-23-62534876 FAX:0086-23-62534875
M.P.:0086-18696725118 Skype:richard083559
website:
