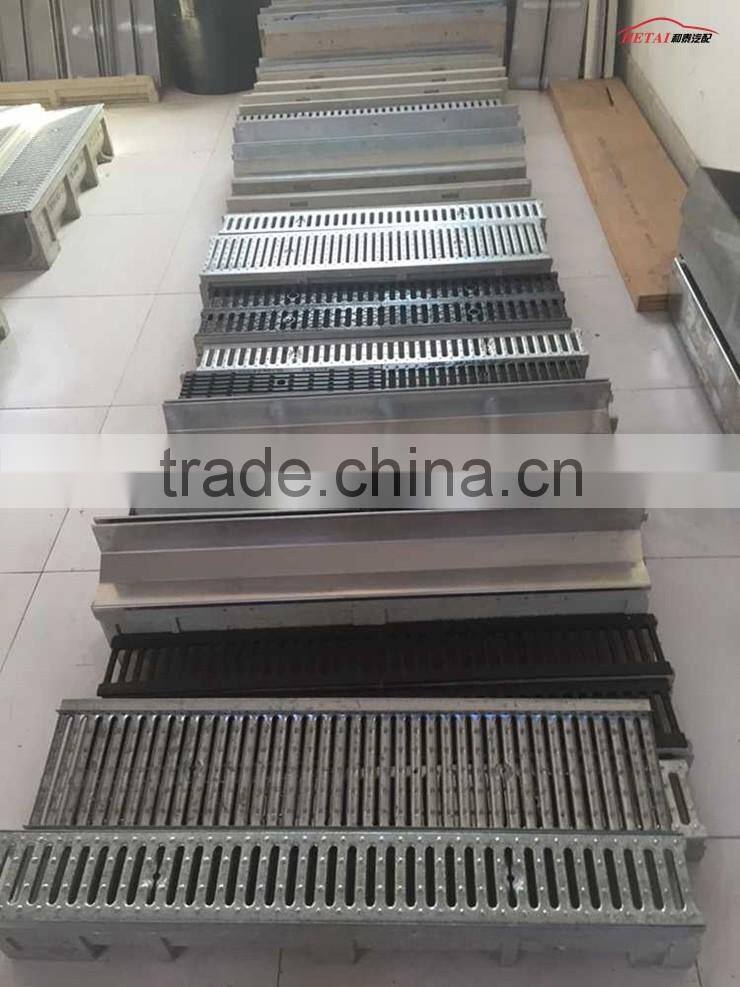

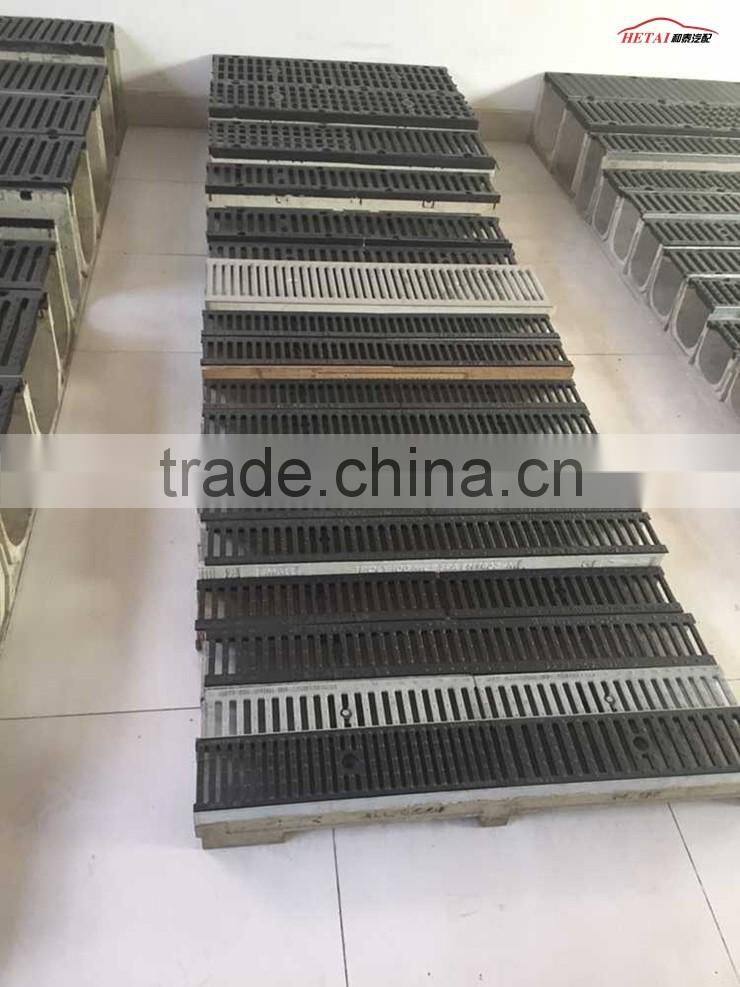

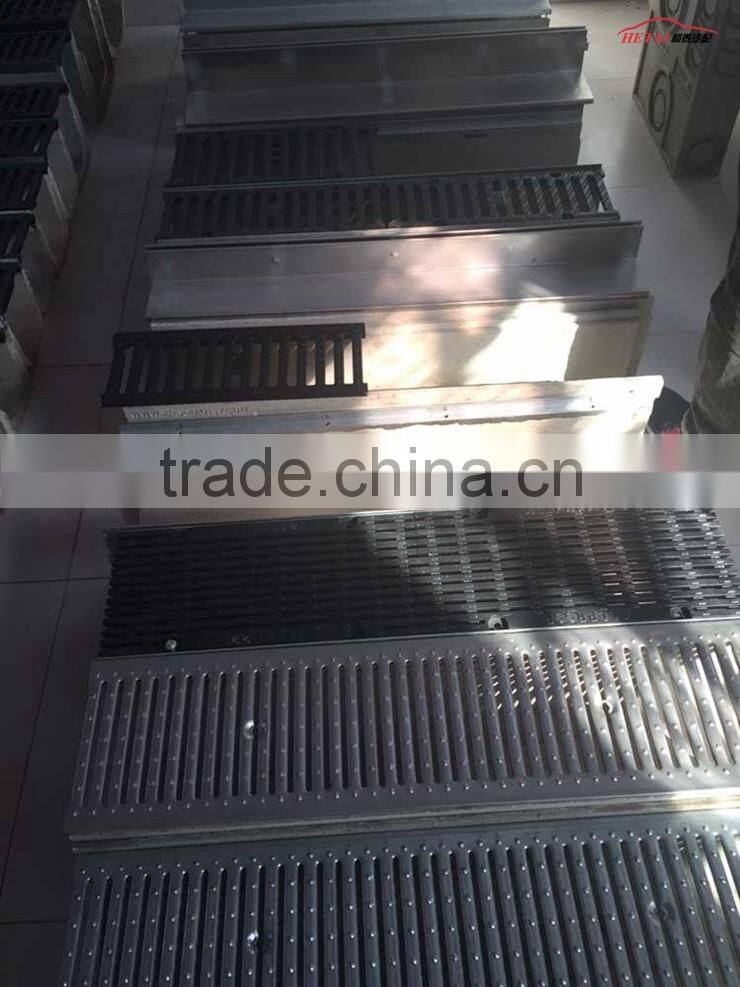

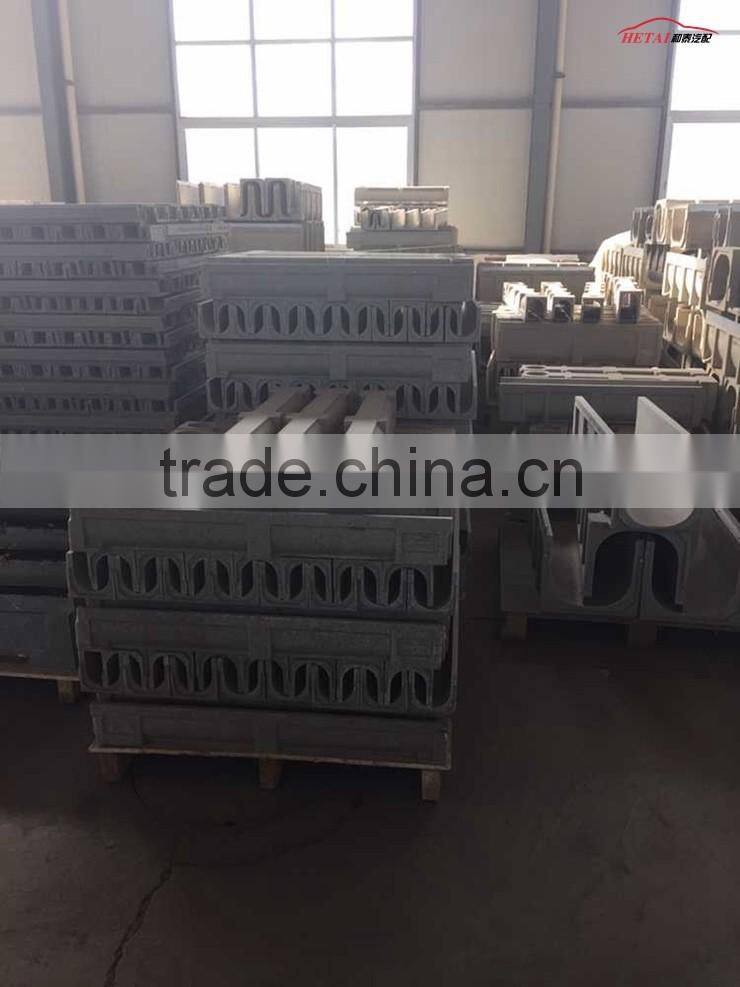

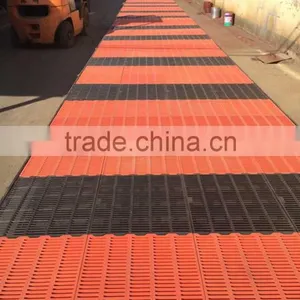

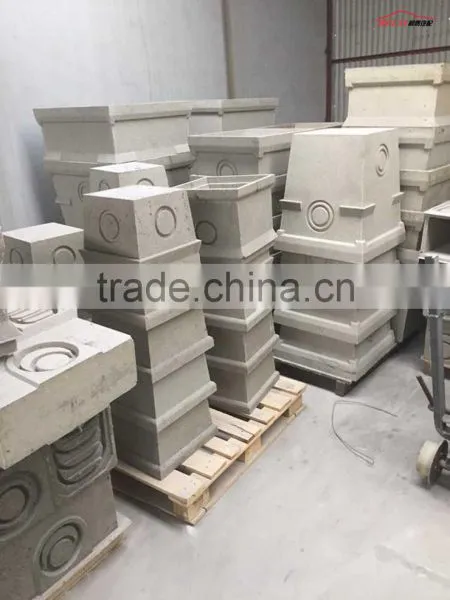

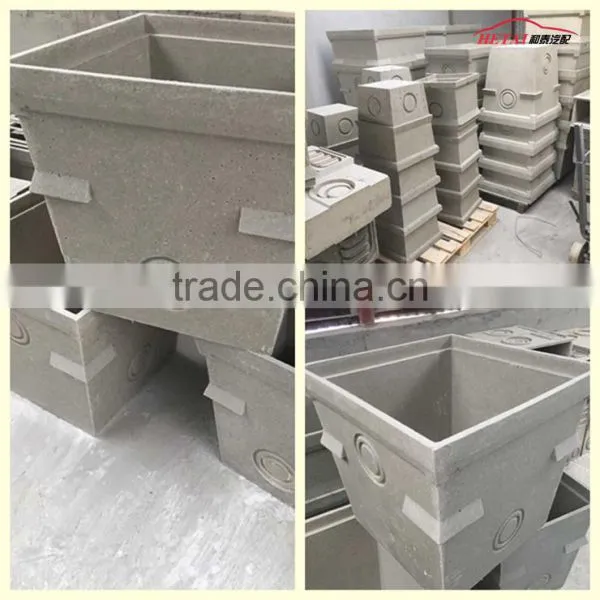

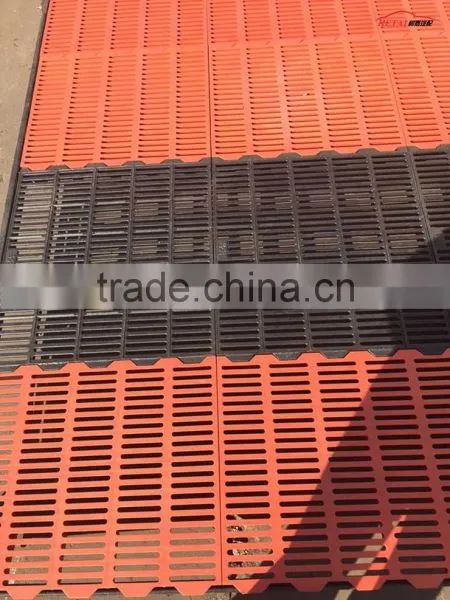

Help CenterResin Concrete Drainage Channel
Related Products
-
Multipurpose Agricultural Codonopsis Deep Harvest Digger Machine Ploughing ExcavatorUS$ 1,900 - 2,500MOQ: 1 Set -
Automobile Workhorse Farm Vehicle Car Crankshaft for Truck TractorUS$ 10 - 50MOQ: 500 Pieces
-
Energy Saving American Type Heavy Duty Drop Forged Cr-Mo Chrome-molybdenum Steel Clipper Bolt CutterUS$ 1.27 - 14MOQ: 500 Pieces
-
Extension SpringNegotiableMOQ: 500 Pieces
-
Car 12v dc Water PumpNegotiableMOQ: 200 Pieces
Advantages of Resin Concrete Drainage Channel
Resistant to Pressure and Bending
Its ability of pressure resistance and resistance is 2 to 3 times stronger than ordinary cement products.
Acid and Alkali Resistance
Resistance to PH is as high as 1-10, the Snow removal agent that used in airport, highway and city road has no effect on this product.
Long Service Life
In correct way of installing and using, its service life can be extended without limitation,Compared with the cement concrete, plastics and other materials, has long service life and its average annual cost is very low, so it can increasing the economic benefit.
Smooth Surface, Easy for Maintenance
Smooth surface density, roughness coefficient is small, not easy to deposite the sediment because of self cleaning capacity, so can reduce maintenance times. Sewage and sundry were discharged in smaller flow velocities,not easy to form dirt. But ordinary concrete cement can not easy to do this with its coarse porous surface.
Resistance to Freezing and Thawing, Osmosis-Resistant
Alternate freezing and thawing will degrade the performance of the cement, but it has little impact on the resin concrete, t here is no water absorption resin inside the polymer resin concrete, and we made thousand times of freezing and thawing test, there is no changing about the quality performance.
Performance of resin concrete
Project |
Unit |
Resin concrete |
Cement concrete |
The proportion of |
g/cm2 |
2.3 |
2.3 |
Compressive strength |
kgf/cm2 |
900~1200 |
200~500 |
Tensile strength |
kgf/cm2 |
80~150 |
10~30 |
Bending strength |
kgf/cm2 |
200~350 |
40~80 |
Impact strength |
kgf/cm2 |
1.8~4.0 |
1.5~2.0 |
Breaking strength |
kgf/cm2 |
90~150 |
40~50 |
Fire resistance |
|
JISDifficult to burn 3 levels, self elimination |
Not burning |
Thermal expansion ratio |
10-5/℃ |
1.1~1.7 |
0.7~1.4 |
Heat transfer rate |
kcal/mh℃ |
1.12~1.46 |
1.55~2.32 |
Water absorption |
% |
0.3 |
8 |
Water permeability |
% |
0 |
3~4 |
Hardness (rubber hardness tester) |
|
88~92 |
80~88 |

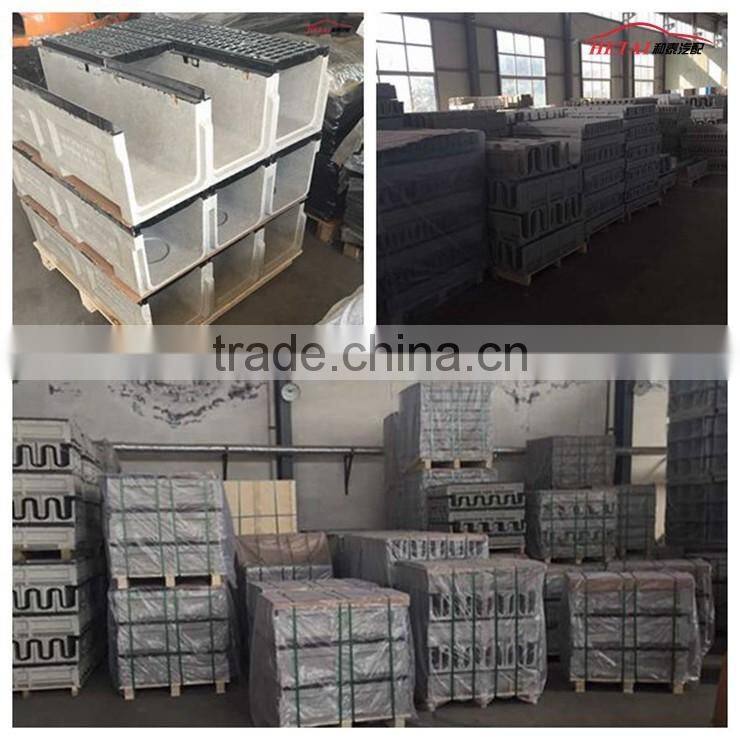

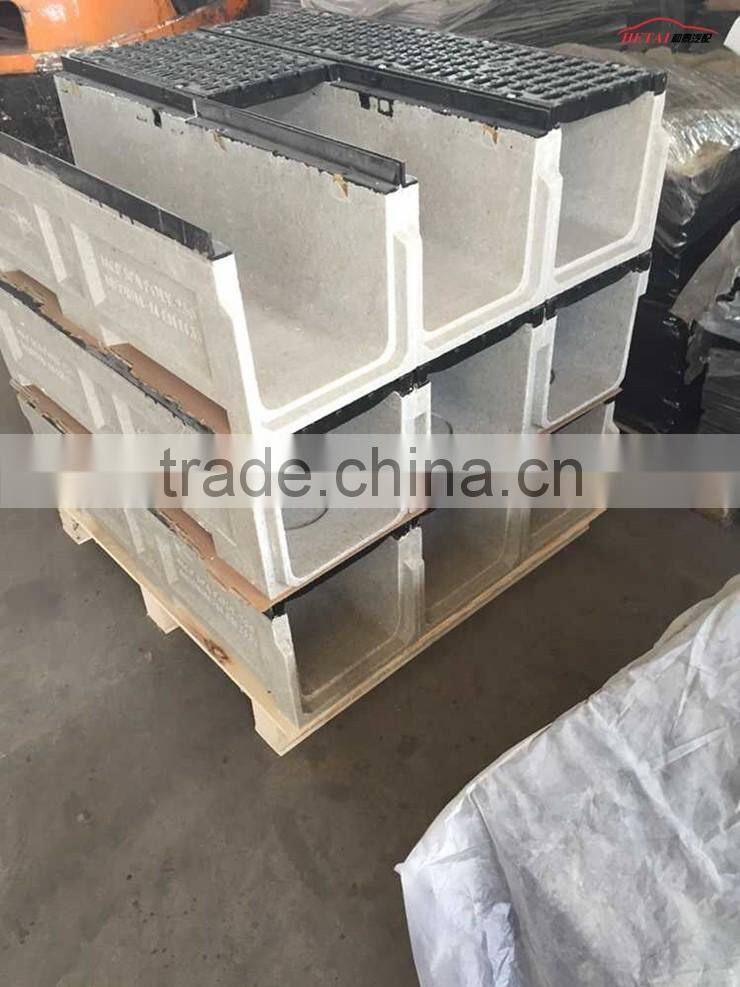

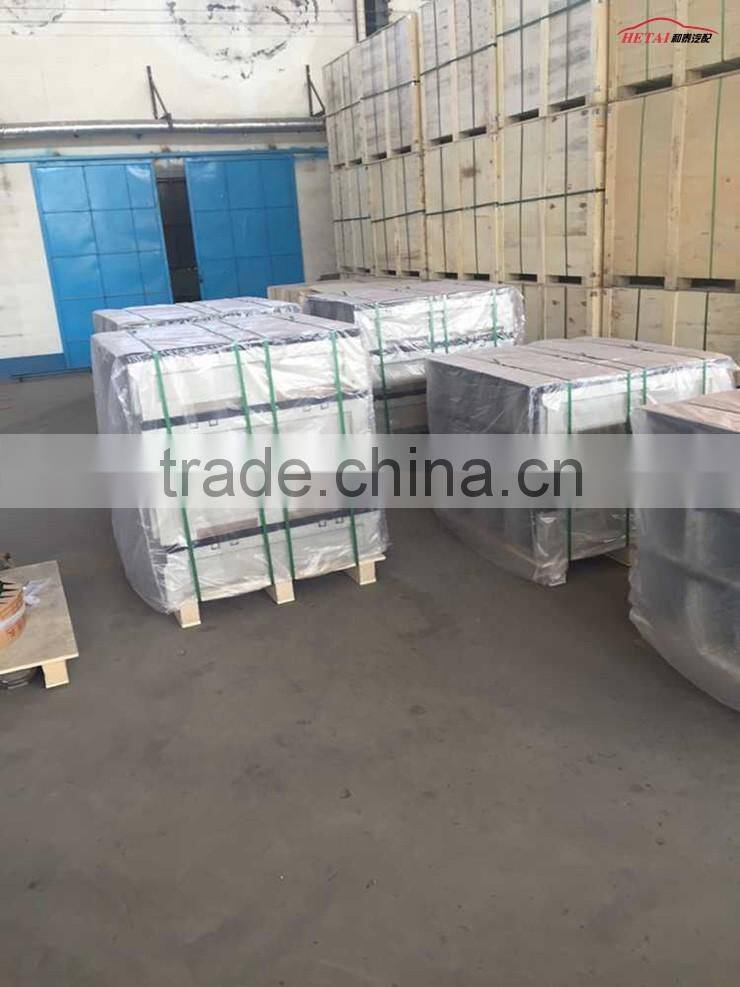

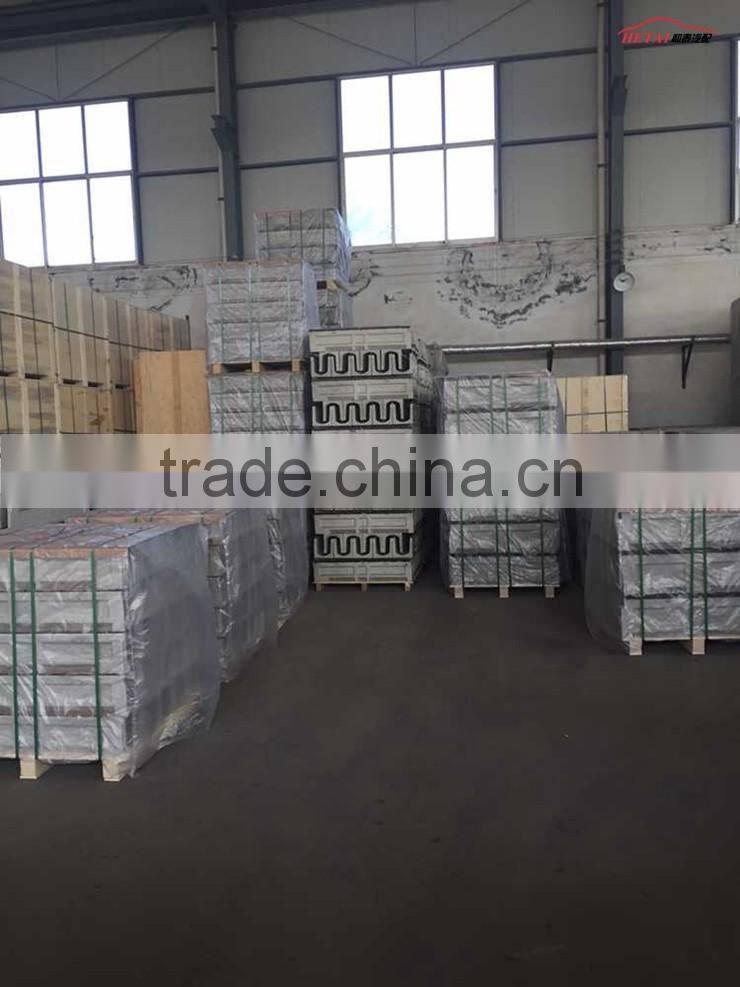

Pallet package or as requirements
1.cargo track service during transporting and feedback service after cargo is loaded on board.
2.flexible terms of payment by T/T and L/C.
3.big discount for repeat customers.
4.smooth delivering procedure.
Rizhao City Hetai Automobile Fittings Factory was established in March 2007, which is located in Wulian County Industrial Zone, and covers an area of 5000 square meter. There are 53 employees and 5 senior technicians. The fixed asset is over 3 million RMB yuan. The main productions are as follows,
Forged steel and casting iron parts -- kettlebell, dumbbell, barbell, pipe fittings, hand tools, etc;
Cold bending/stamping/welding parts -- photovoltaic bracket, roadway signage bracket, etc.
Auto Parts -- automobile air compressor, brake valves, safety valves and other metallic auto parts.
We supply our products to many famous automobile companies in China, and we also do OEM business with foreign customers all over the world.
Our factory has full sets of modern high-precision production and testing equipmen We have passed the GB/T19001-2008/ISO9001:2008 certification, and we have a number of domestic inspection certificates.
Concept innovation, Product innovation and Integrity service, all of them is our tenet for ever. With high-quality products, competitive price and wholehearted after-sale services, we will hospitably cooperate with all our customers to create a bright future.
1. Can I negotiate the prices?
Yes, we may grant discount for FCL of mixed products or bulk orders of individual products. Sometimes, we may launch some promotion, more discount would be granted.
2. What is the minimum order quantity?
The MOQ has been indicated on the product page, we can accept small orders, prices will be higher, though.
3. How long do you need for production and delivery?
Normally, for regular designs and models, we need 20-30 working days to produce after receive your deposit and all order details are confirmed. Different order quantity, different delivery time, please confirm with us when you are ready to place an order.
Transportation by sea or by air, Customs clearance and inland transportation will need, another 20-30days. So please place orders in advance to make sure you have products to sell on busy season.
4. What warranties you have for your products?
If you find defects after you received the goods, please send us defects photos with quantity so we can check the reason, if it is quality problems or our faults, we would cover your loss, send replacements or grant special discount for your coming orders.
We shall not be liable for any discrepancy of the goods shipped due to causes for which the Shipping Company, other Transportation Organization /or Post Office or in consequence of any Force Majeure incidents which might occur. Force Majeure as referred to in this contract means unforeseeable, unavoidable and insurmountable objective conditions.
If it is quality problems or damage caused by inappropriate packing method, we will cover the loss. Need 1-3 working days to find out the reason and tackle for you.
5. Payment terms:
Standard term is 30% deposit by T/T in advance, pay the balance before shipment. Long-term business partners can get better terms like LC.
