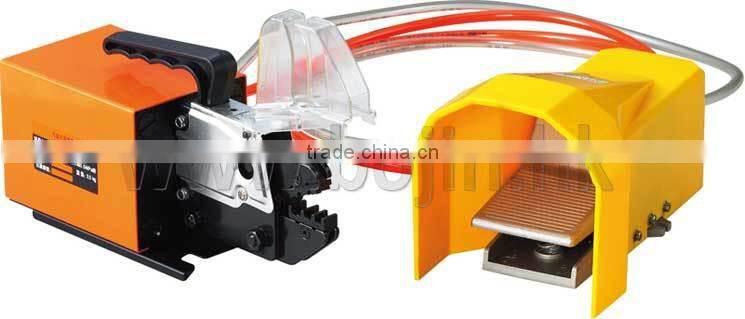

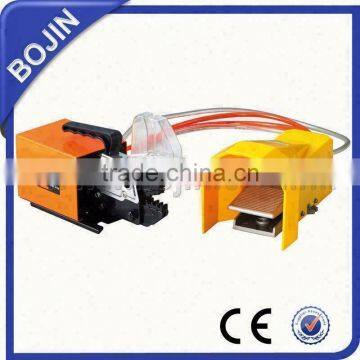

wire / terminal crimping machine BJ-606E
Specification
* Range of Application: 6mm(insulated terminal)//35mm2(Furcate terminal)
* Air pressure range: 0.4-1Mpa
* Output force:13.5KN
* Voltage range: AC 220V
* Weight: 6.5kg
* Overall dimension: 260*120*140mm
Unique Features
1.The machine is driven by dual-action normal cylinder, which has advantages of high efficiency and quality in crimping force and speed.
2.The machine is fit for many kinds of terminals.
3.The crimping machine and the gas source connection.
4.Will match the supply air terminal and wire-bound good.
5.According to the required length of crimp terminals to adjust the depth of the interface pressure.
6. It is good for terminal crimping in large or medium quantity.
7. If there are a lot of different kinds of terminals to be crimped, this crimper is the best choice.
wire / terminal crimping machine BJ-606E

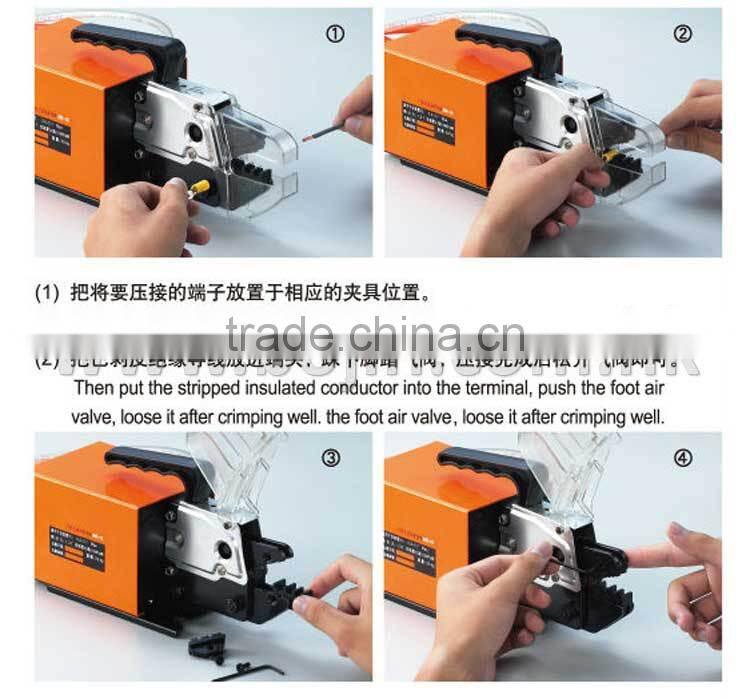

Operation Video
www.bojin.hk/products/pneumatic-terminal-crimping-machine-bj-606e/
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
We Provide
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
Service
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
wire / terminal crimping machine BJ-606E
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
We always take pragmatism, innovation, service as the spirit of enterprise,regard reasonable prices, reputable quality and good after-sales service as our tenet.
....
...
