coaxial cable cutting & stripping machine BJ-06TZ
Technical Parameter:
The model for the communications industry manufacturing (coaxial cable processing) design, wire cutting, stripping multiple layers or segments can be completed.
The machine uses rotary cutter rotary cutting, V-blade cutting peeling, twice in the head with each other, more precise as to improve the quality and yield of processed products.
Name |
BJ-06TZ Coaxial Stripping Machine |
Cable Type |
coaxial-cable,tri-axial cable,shield wire,rigid cable |
Max. Cable Dimater |
up to 4mm (0.15-4.0mm) |
Stripping |
Left middle rubber shortest 22 (mm) |
Cutting depth of the unit |
0.01mm |
Max cutting length |
99,999.9(mm) |
Max. peeling length |
40mm(Left), According to the actual condition of the wire(Right) |
Max. peeling stratums |
9 |
Drive mode |
Motor/ Ball screw drive(Japan) |
Display |
Touch curtain |

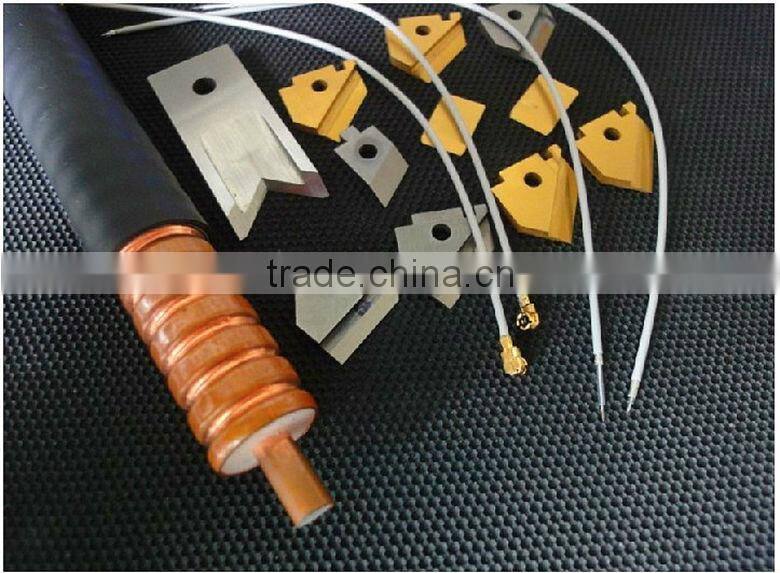

Blade |
4 pieces Material:imported tungsten steel(Switzerland) |
Centering slab |
4 pieces Material:imported tungsten steel |
Trapper |
Automatic self aligning,motor drive, the clamping process control |
Productivity |
500-800pcs/h(depend on the cable length and type) |
Opening way |
Manual operation/Pedal |
Power |
220V/50Hz 380W |
Weight |
26Kg |
Boundary dimension |
620x335x218mm |
Work environment |
0-50°C,moderate dry,non-shake |
coaxial cable cutting & stripping machine BJ-06TZ
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.
coaxial cable cutting & stripping machine BJ-06TZ...
