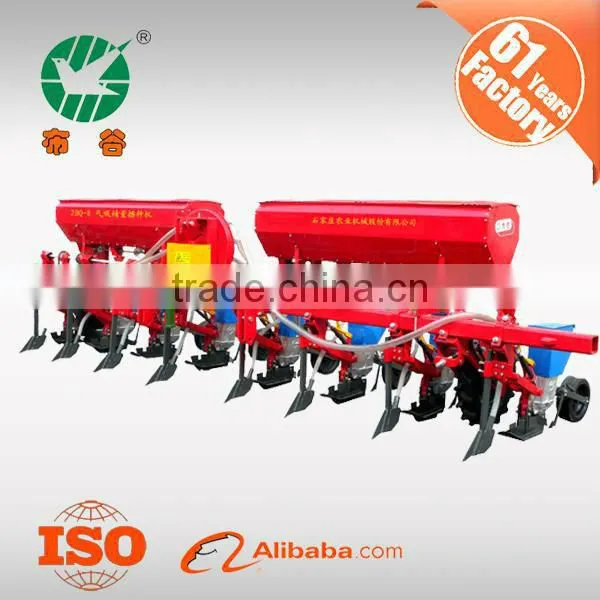

8 Rows Pneumatic Precise Soybean Seed Drill Planter

Specifications

Soybean Seed Planter
1.61 Years Factory
2.For corn,soybean
3.Sowing,fertilizerig,hilling,row making
4.ISO 9000

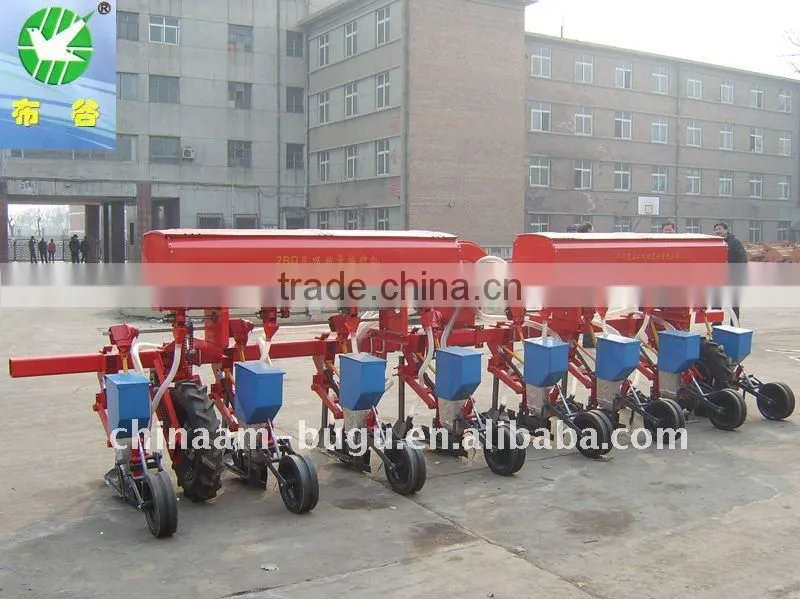

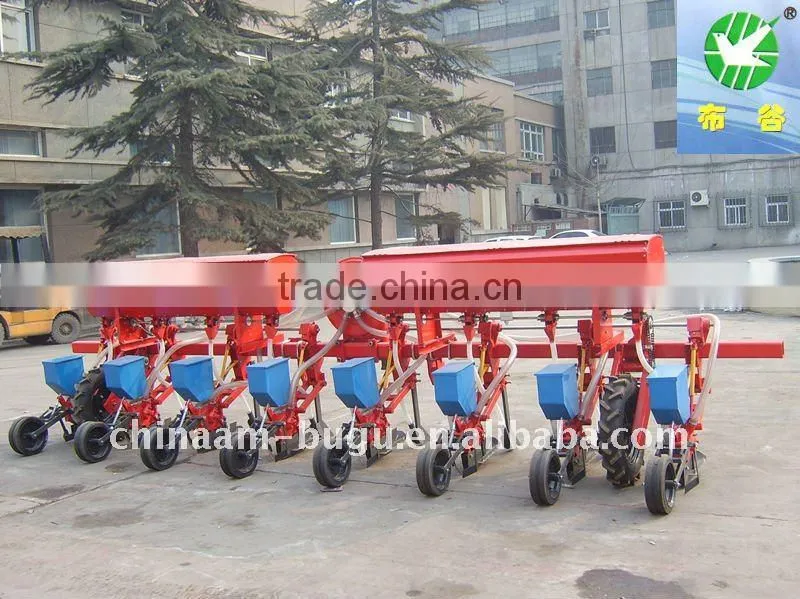

8 Rows Pneumatic Precise Soybean Seed Drill Planter





1.2BQ Series Pneumatic Precise Corn Seeder is a kind of multi-functional integral agricultural machine.

2.It is suitable for drilling and fertilizing on the ploughed or tided field. By replacing different sprocket and seeding plate to change the distance of seed.

3.it can precisely drill corn, soybean, sorghum, cotton and oil sunflower. Fertilizing, ditching, soil covering and press can be finished at the same time.

4.The main features of this kind of machine are multi-function, universal operation and high efficiency.

5.Diving force is 44-73 Kw (four-wheel tractor). Row space, depth, seed distance and seeding amount can be adjusted in a large range.

6.Seeder Box and Fertilizer Box is Stainless Steel materials can be anti-rust.



Thus it can satisfy the agricultural requirement of North-East, North-West and Xin Jiang dry district.Because of the seeder is precise, please clean sundries and chioce the seed which is accord to related asking before feed.Executing standard: JB/T10293-2001unit (precise) seeder.





Main Technial Parameters:

Model	Overall dimension(mm)	Net weight(Kg)	Sowing width(mm)	Sowing rows(row)	Row spacing(mm)	Working efficiency(Ha/h)
2BQ-4	1500×2300×1220	520	2100	4	460-640	0.67-0.8
2BQ-5	1500×2800×1220	565	2800	5	460-640	0.8-1.2
2BQ-6	1500×3400×1220	645	3500	6	460-640	1.2-1.33
2BQ-8	1800×6000×1500	1050	4900	8	460-640	1.33-2
