Specifications
Seed fertilizer drill is suitable for wheat, millet, sorghum,Adoped hydraulic system to control the up and down of the opener

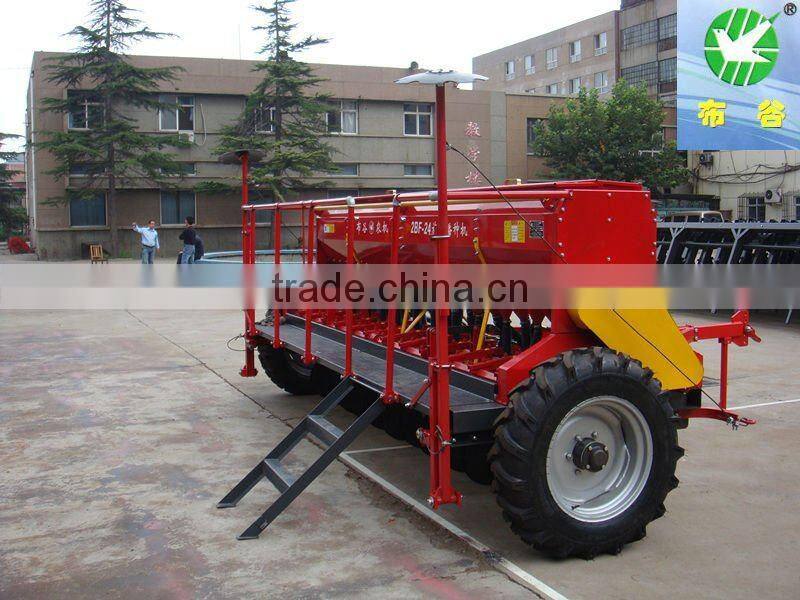

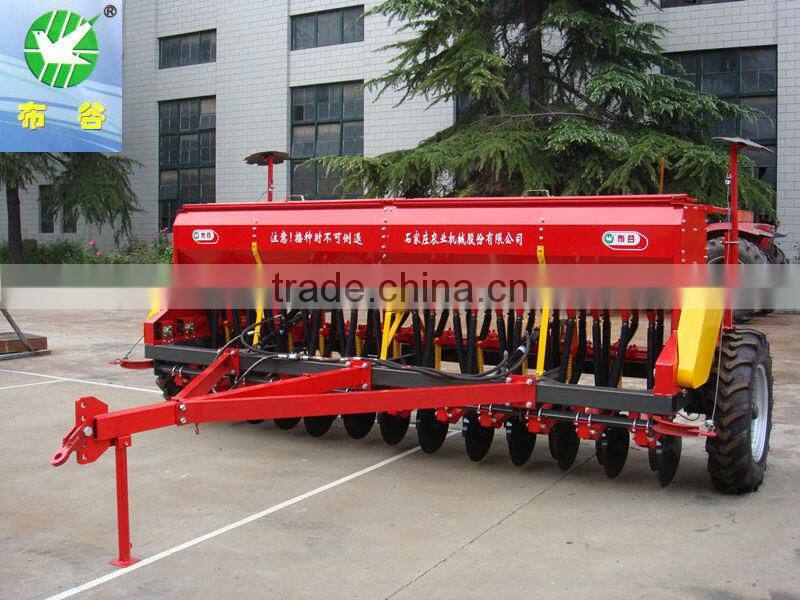

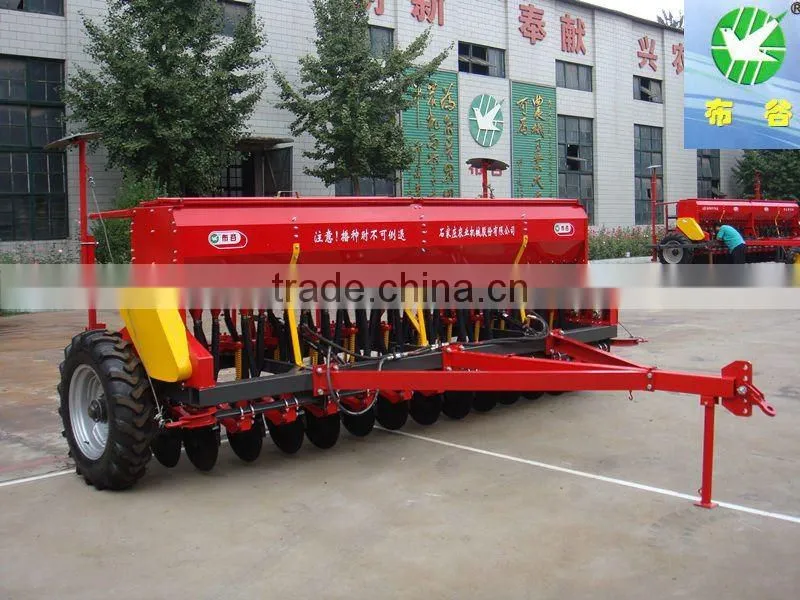

2BFY-24 seed fertilizer drill
is the updated version on basis of traditional draft type seeders, which is suitable for drilling small sizes of seeds such as wheat, millet, sorghum, etc. in large and middle sized fields..
2BFF-24 is equipped with big angle openers, which makes it possible to drill wheat in wider strip zone in Spring.
The press device can also be equipped at option for the above machine.
Model | 2BFY-24 | 2BFF-24 | 2BFY-36 |
Overall Dimensions(mm) | 4380×3680×1650 | 4380×3770×1650 | 6170×4030×1650 |
Net Weight(kg) | 1320 | 1430 | 1900 |
Working Width(mm) | 3600 | 3600 | 5400 |
Working Depth(mm) | 300-800 | ||
Driving Power(hp) | 50-80 | 50-80 | 65-100 |
Type of transmission | Chain Transmission | ||
Volume of Fertilizer Box(L) | 430 | 430 | 320×2 |
Volume of Seeds Box(L) | 410 | 410 | 305×2 |
Type of Seeds Discharger | Cast Iron Flute Wheel | ||
working efficiency(Ha/h) | 2-2.86 | 2-2.86 | 3-4.3 |
Spaces between Rows(mm) | 150(adjustable) | ||
Working Speed(km/h) | 7-10 | ||
Type of Openers | Double-disc | Double-Disc with Wider Spacing | Double-disc |
Distance between front and back Openers(mm) | 260 | 490 | 260 |
Type of Clutch | jaw(teeth) positive-contact type | ||
