Home > Products > 2BFY series hydraulic grain seeder > ISO manufactuer 2BFY-36 agricultural equipment
ISO manufactuer 2BFY-36 agricultural equipment
- 1500 Unit / Units per Month
- Xingang
- T/T
Product Details
Condition: | New | Type: | seeder | Application: | wheat, rice, soybean seeder |
Use: | seeding, fertilizing | Place of Origin: | Hebei, China | Brand Name: | Bugu |
Model Number: | 2BFY-36 | Weight: | 1900kg | Dimension(L*W*H): | 6170*4030*1650 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
2BFY-36 agricultural equipment1.Working efficiency:3-4.3ha/h
2.Working width:5.4m
3.Net weight:1900kg
About our factory:
2BFY-36 agricultural equipment is the updated version on basis of traditional draft type seeders, which is suitable for drilling small sizes of seeds such as wheat, soybean etc. in large and middle sized fields..
2BFF-36 is equipped with big angle openers, which makes it possible to drill wheat in wider strip zone in Spring.
For 2BFY-36 Grain Drill Fertilizer, the transit device in horizontal direction is at option to be assembled if customers need it. The press device can also be equipped at option for the above machines.
Specifications:
Model | 2BFY-24 | 2BFF-24 | 2BFY-36 |
Overall Dimensions(cm) | 438×368×165 | 438×377×165 | 617×403×165 |
Net Weight(kg) | 1320 | 1430 | 1900 |
Working Width(cm) | 360 | 360 | 540 |
Working Depth(mm) | 30-80 | ||
Driving Power(kw) | 36.8-60 | 36.8-60 | 48-74 |
Type of transmission | Chain Transmission | ||
Volume of Fertilizer Box(L) | 430 | 430 | 320×2 |
Volume of Seeds Box(L) | 410 | 410 | 305×2 |
Type of Seeds Discharger | Cast Iron Flute Wheel | ||
working efficiency (ha/h) | 2-2.86 | 2-2.86 | 3-4.3 |
Spaces between Rows(mm) | 150(adjustable) | ||
Working Speed(km/h) | 7-10 | ||
Type of Openers |
Double-disc |
Double-Disc with Wider Spacing |
Double-disc |
Type of Clutch | jaw(teeth) positive-contact type |

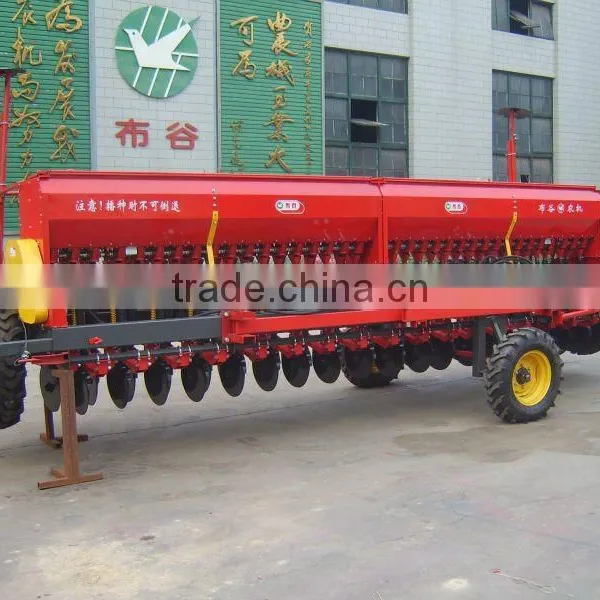

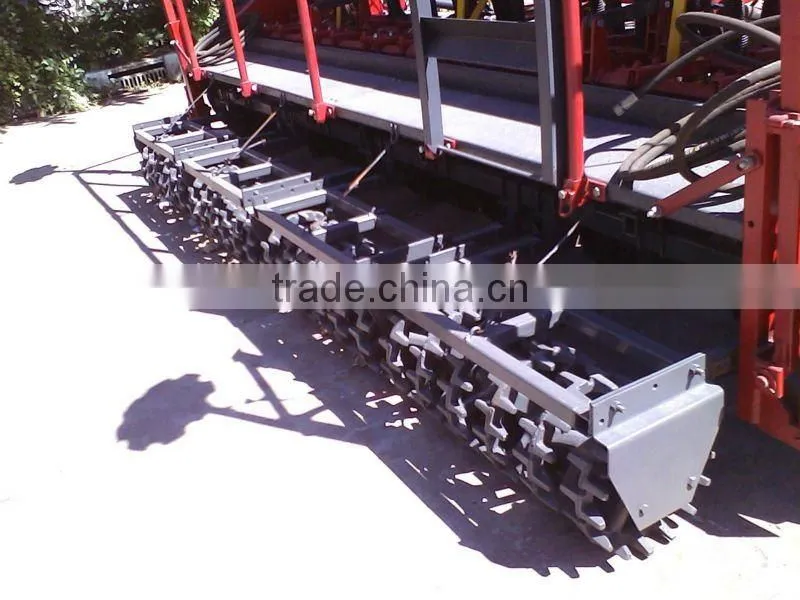

Machine photos
