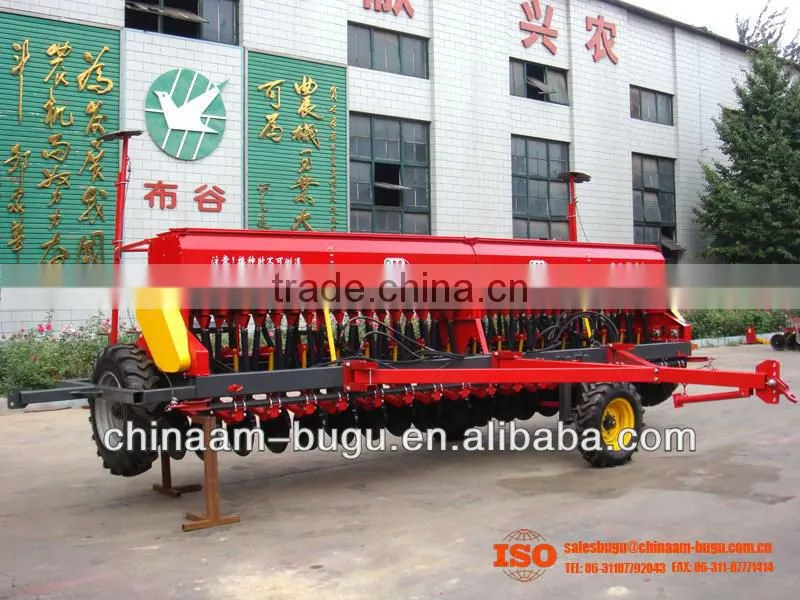

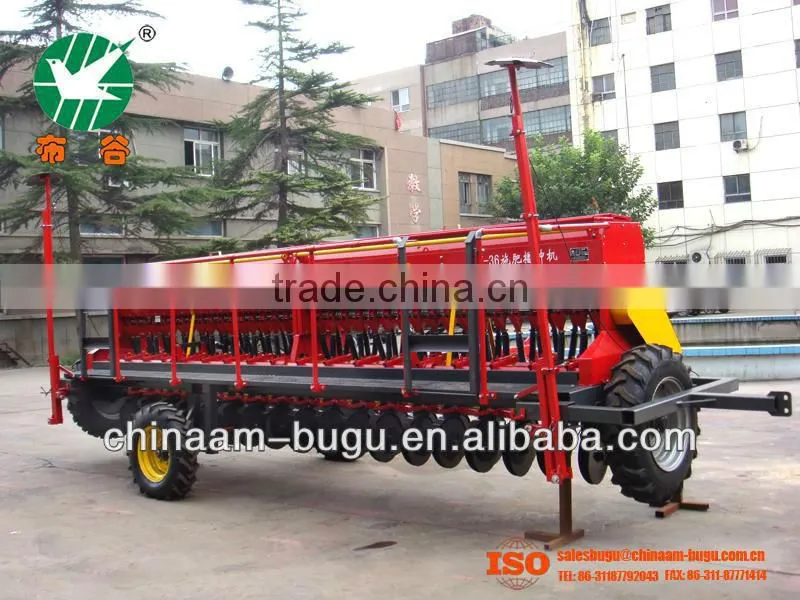

2BFY-36 hydraulic agricultural machinery
Shijiazhuang Agricultural Machinery Co., Ltd was established in 1952. As manufacturers of machinery for soil cultivation, sowing and crop protection, our currently employs approximately 500 people. Factory size cover an area of 98000 square meters.
It is produces a wide range of straw chopper machine, precision planters, cereal seed drills, cultivator, ploughs, disc plough, chisel plow and corn harvester.
Progress is achieved by continuous R&D carried out by a large team of engineers.
It is passed ISO9001 Certificate in year 1998, we guarantees to its customers products and services compatible with the international quality norms, in every equipment produced by it.
Each unit of machine have 1 year of gurantee time.
The technicians and the customer service’s staff are well-experienced and competent.We can supply our customers with spare parts or advice quickly.
we provide operating manuals, and organize training and learning days for our clients that would improve their knowledge and grow with us.
Do you have any questions or suggestions?
Please address all questions on our products directly Write to us.

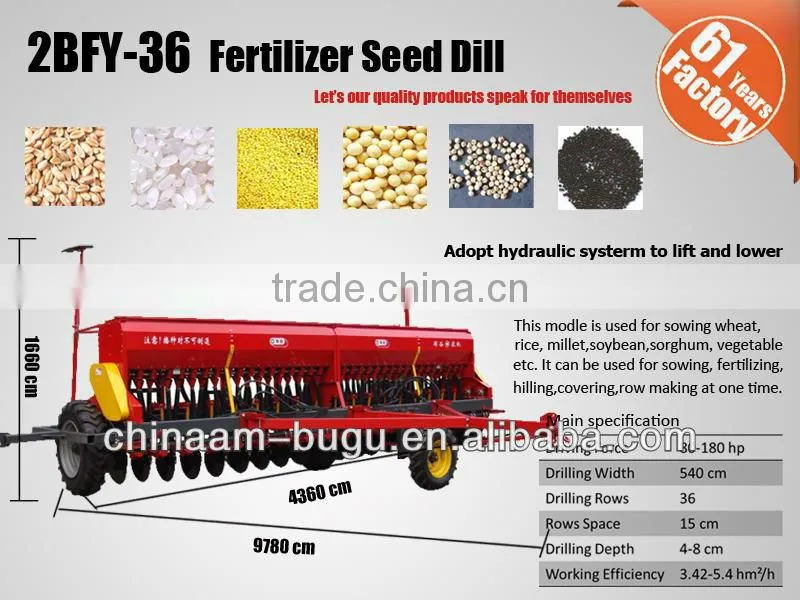

2BFY-36 Grain Drill Fertilizer is the updated version on basis of traditional draft type seeders, which is suitable for drilling small sizes of seeds such as wheat, soybean etc. in large and middle sized fields..
2BFF-24 is equipped with big angle openers, which makes it possible to drill wheat in wider strip zone in Spring.
The press device can also be equipped at option for the above machine.
Model |
2BFY-24 |
2BFF-24 |
2BFY-36 |
Overall Dimensions(cm) |
438×368×165 |
438×377×165 |
617×403×165 |
Net Weight(kg) |
1320 |
1430 |
1900 |
Working Width(cm) |
360 |
360 |
540 |
Working Depth(mm) |
30-80 |
||
Driving Power(kw) |
36.8-60 |
36.8-60 |
48-74 |
Type of transmission |
Chain Transmission |
||
Volume of Fertilizer Box(L) |
430 |
430 |
320×2 |
Volume of Seeds Box(L) |
410 |
410 |
305×2 |
Type of Seeds Discharger |
Cast Iron Flute Wheel |
||
working efficiency(Ha/h) |
2-2.86 |
2-2.86 |
3-4.3 |
Spaces between Rows(mm) |
150(adjustable) |
||
Working Speed(km/h) |
7-10 |
||
Type of Openers |
Double-disc |
Double-Disc with Wider Spacing |
Double-disc |
Distance between front and back Openers(mm) |
260 |
490 |
260 |
Type of Clutch |
jaw(teeth) positive-contact type
|
||
