4 RowsMechanical Maize Planter Machine

Name: 4 RowsMechanical Maize Planter Machine
Brand: Bugu
SKU: 141101080
Availability: InStock

Shijiazhuang Agricultural Machinery Co., Ltd.

US$ 4,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Seeder

Application:

Seeding and Fertilizering

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Seeder

Application Seeding and Fertilizering

Use Sowing Corn and Soybean etc.

Place of Origin Hebei, China

Brand Name Bugu

Model Number 2BFY-4C

Weight 690 KG, 690 KG

Dimension(L*W*H) 1900x3500x1400 mm

After-sales Service Provided Engineers available to service machinery overseas

Specifications

maize planter machine
1.61 Years Factory
2.For corn,soybean
3.Sowing,fertilizerig,hilling,row making
4.ISO 9001

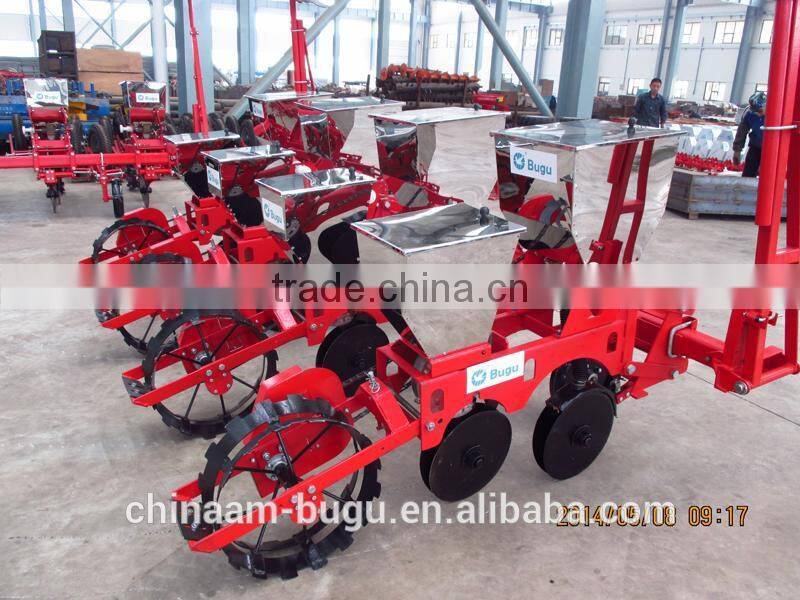

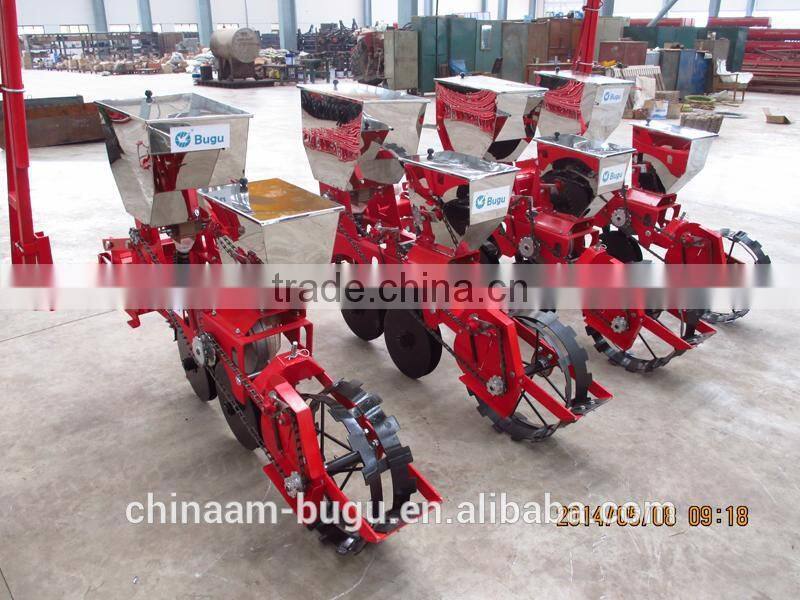

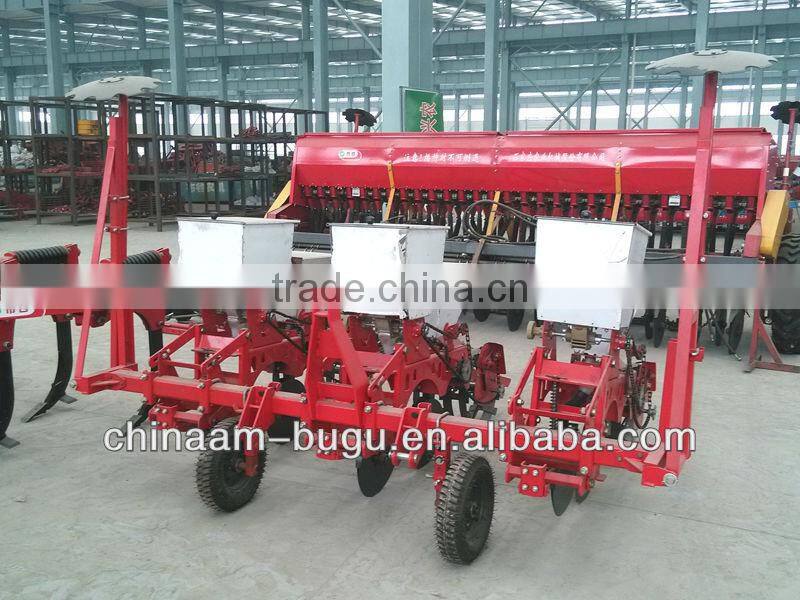

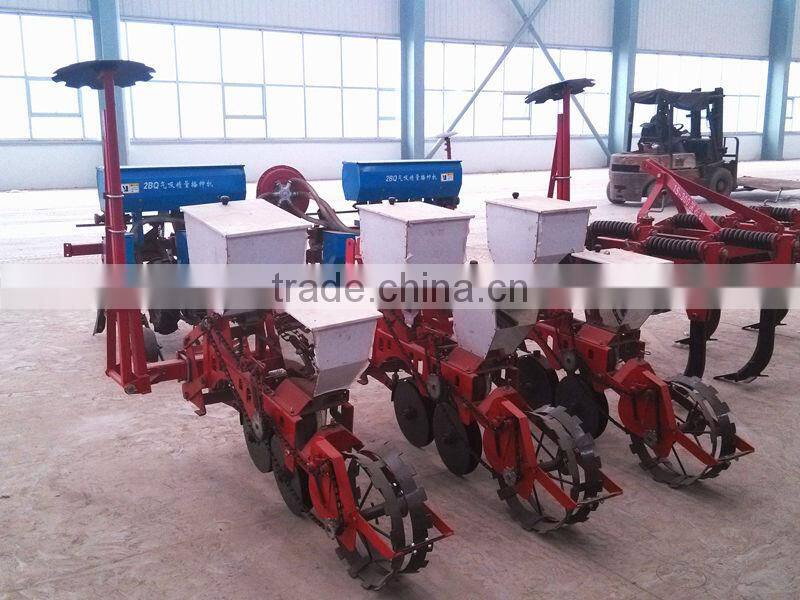

4 Rows Tractor Mechanical Maize Planter Machine

2BFY-4C serise precision planter is a kind of tractor-mounted with 29-88 Kw (40-120hp) roller tractor, multifunction farming implement.

The main characters as below:

1. Adopt picker finger seed drill metering precision, sowing fast and accurate. Especially the different size of seeds.

2. It is can be Sowing corn or soybean by replacing the seeding plate.

3. Adopt unit contouring, perform the same drilling depth and fit for different condition of soil.

4. “V” Type ground wheel with big weight, make good performance to the pressing.

5. It is convenience to change the sprockets by adopting double pitch chain , working reliable, tight and elastic tension.

6. Enhance the strength of disc opener and improve the hermetically sealed structure. working reliable and longer lifetime.

Main Technial Parameters:

Iterm		unit	2BFY-3C		2BFY-4C		2BFY-5C	2BFY-6C
Overall Dimensions	Lenght	mm	1900		1900		1900	1900
	Width		2600		3500		4400	5300
	Hight		1400		1400		1400	1400
Weight		Kg	540		690		830	980
Row Space		mm	400-900
Seed Sowing Device			picker finger seed drill(corn)Scoop Planter(soybean)
Fertilizer Device			Fluted wheel
Inter-plant Distance		mm	76-189(corn)18-44(soybean)
Working Speed		Km/h	5-9
Drilling Depth		mm	30-60
Fertilizering Depth		mm	50-80
Volume of Seed Hopper		L	35×3	35×4		35×5		35×6
Volume of Fertilizer Hopper		L	50×3	50×4		50×5		50×6
Driving Force		Kw	29-73	36-73		53-73		53-88
Working Efficience		Ha/h	0.6-2.4	0.8-3.2		1-4		1.2-4.8
