The Traffic Singal Light Solar Power Fixed on Road Railway Alarm Lamp

This product is the railway transport safety equipment for special railway line into the plant into the library, railway crossing level crossing, railway construction and other occasions.This means the production of sophisticated, dignified appearance, reasonable structure, easy to install, easy to use.

Equipment using sound, light, voice alarm at the same degree of protection apply a wide range of high, light source with a new energy-saving technology super bright LED, PCB luminescent panel continuous life in more than 100,000 hours (10 years), failure is low, basic maintenance ; simple installation of equipment only one three-core cable can meet the control, transmission, alarm requirements.

Technical parameter

1. Voltage:220v  ±15%  380v15%

2. Frequency:50Hz  ±5%

3.Solar: irradiance = 1000W / m2,Battery temperature = 25 ℃

   Wind pressure: 2400Pa

   Short circuit current temperature coefficient: + 0.4mA / ℃

   Open circuit voltage temperature coefficient: -60mV / ℃

4.Ambient temperature: -45 ℃ - + 75 ℃

5.Locomotive speed: 2km / h-350km / h

6.Static power consumption: ≤3W

7. Alarm Power: ≤15

8.Light life:>60000h

9.Viewing angle:> 30

10.Visible distance:> 500m

11.Audio output: 8Ω30w

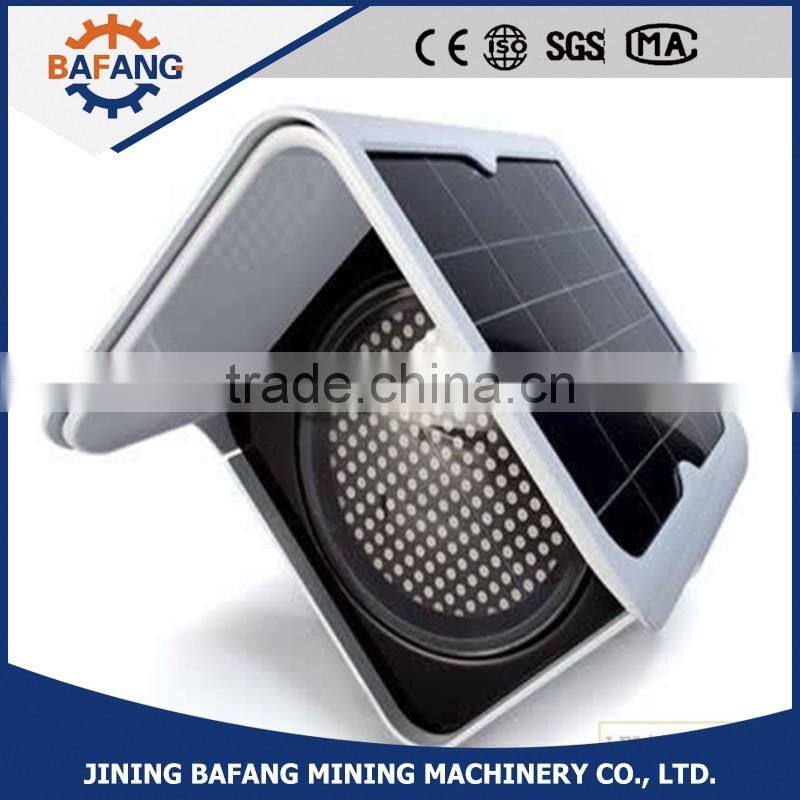

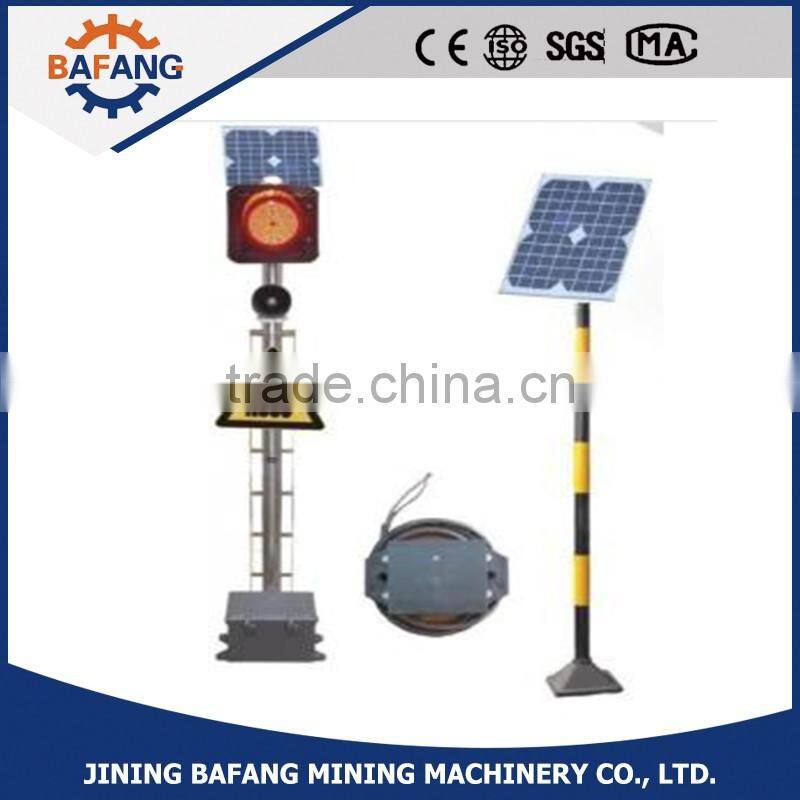

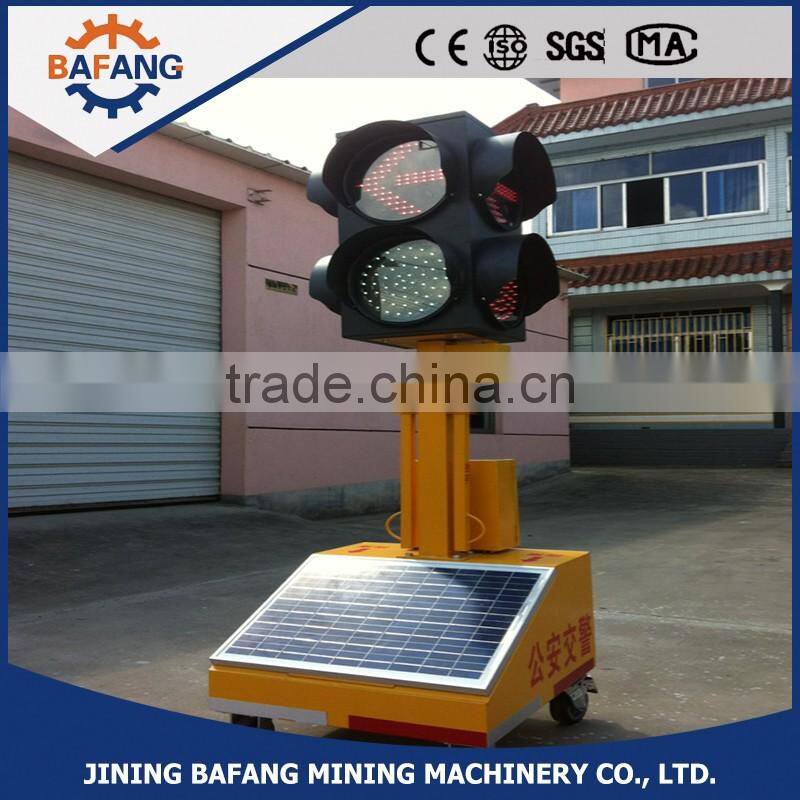

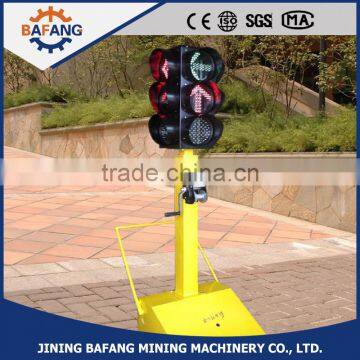

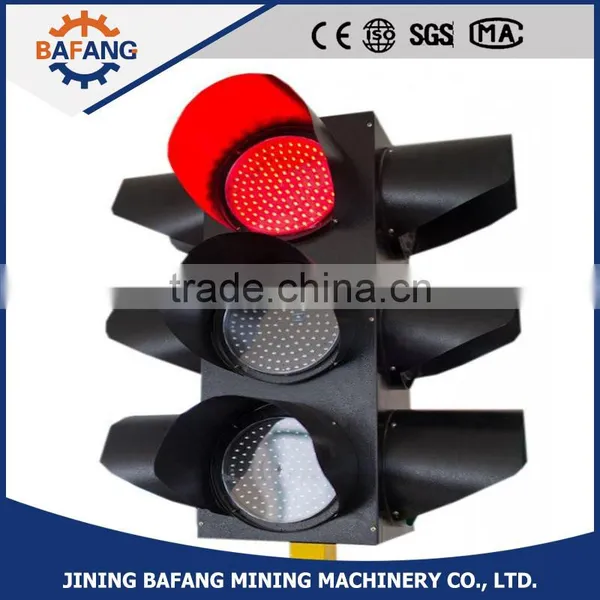

Product pictures
