12 kg/m Light Railway Rail Steel
1. Light Rail
Specification: 4kg/m, 8kg/m 12kg/m,15kg/m, 18kg/m, 22kg/m, 24kg/m, 30kg/m
Unit Weight: 4kg/m, 8.42kg/m, 12.2kg/m, 15.2kg/m, 18.06kg/m, 22.3kg/m, 24.46kg/m, 30.1kg/m
Length: 6-12m
Material: Q235, 55Q
Standard: Q/YG01-2014,YB222-63, GB11264-2012
2. GB Heavy Rail
Specification: 38kg/m, 43kg/m, 50kg/m
Unit Weight: 38.733kg/m, 44.653kg/m, 51.514kg/m
Length:12M& 12.5m
Material: 50Mn, U71Mn
Standard: GB2585-2007
3. Crane Rail
Specification: QU70, QU80, QU100, QU120
Unit Weight: 52.80kg/m, 63.69kg/m, 88.96kg/m, 118.1 kg/m
Length: 12m
Material: U71Mn
Standard: YB/T5055-93
Parameters
Model | Height | Bottom | Head | Web | Length | Theoretic Weight |
8kg/m | 65 | 54 | 25 | 7 | 6/10 | 8.2 |
15kg/m | 91 | 76 | 37 | 7 | 6/10 | 15.2 |
18kg/m | 90 | 80 | 40 | 10 | 6/10 | 18.1 |
22kg/m | 93.66 | 93.66 | 50.8 | 10.72 | 6/10 | 22.3 |
24kg/m | 107 | 92 | 51 | 10.8 | 6/10 | 24.5 |
30kg/m | 107.95 | 107.95 | 60.33 | 12.3 | 12 | 30.1 |
38kg/m | 134 | 114 | 68 | 13 | 12.5/25 | 38.73 |
43kg/m | 140 | 114 | 70 | 14.5 | 12.5/25 | 44.65 |
50kg/m | 152 | 132 | 70 | 15.5 | 12.5/25 | 51.51 |
60kg/m | 176 | 150 | 73 | 16.5 | 12.5/25 | 66.4 |
QU70 | 120 | 120 | 70 | 28 | 9/9.5 10/10 | 52.8 |
QU80 | 130 | 130 | 80 | 32 | 63.69 | |
QU100 | 150 | 150 | 100 | 38 | 88.96 | |
QU120 | 170 | 170 | 120 | 44 | 11.5/12 | 118.1 |

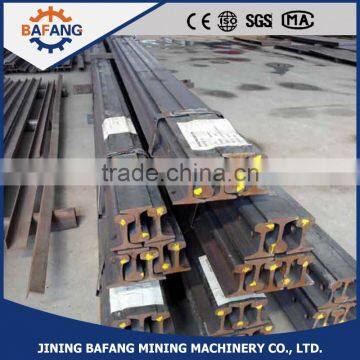

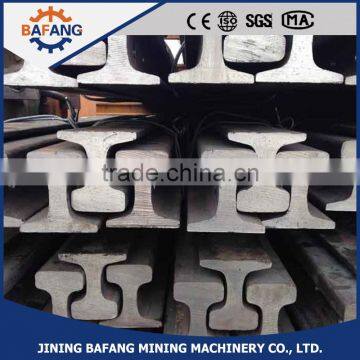

Product Photos
Welcome to contact me at:
Brian Fu
TEL:+86-0537-2288128
FAX:+86-0537-2289978
Whatsapp:+86 13295473527
Wechat: 13295473527
Skype:brian(at)
Email:brian(at)
