Specifications
1.Famous brand engine
2.Imported hydraulic motor
3.Front drum hydraulic turning,turning angle 15degree

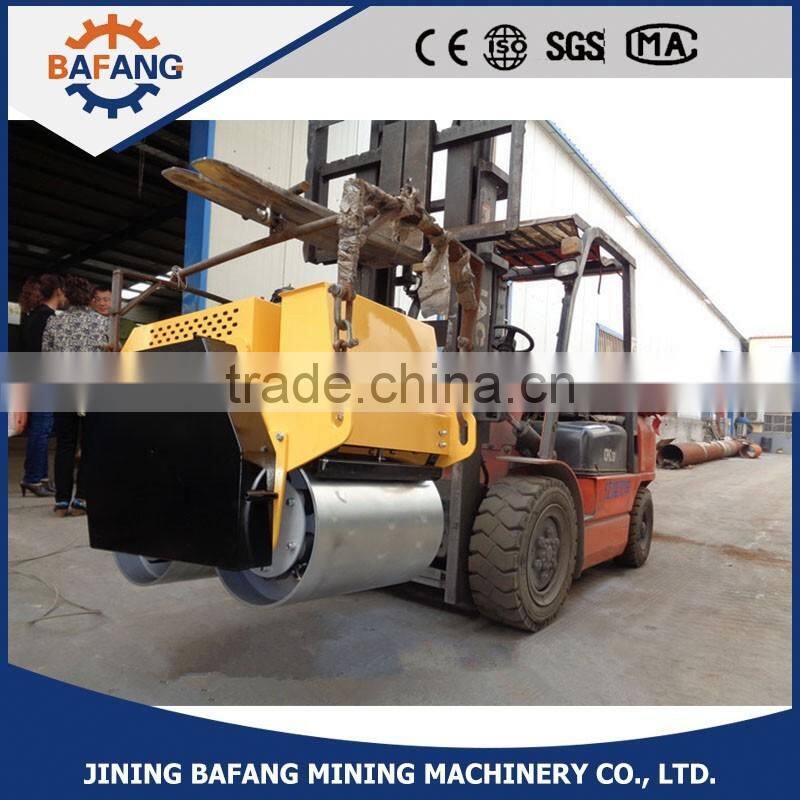

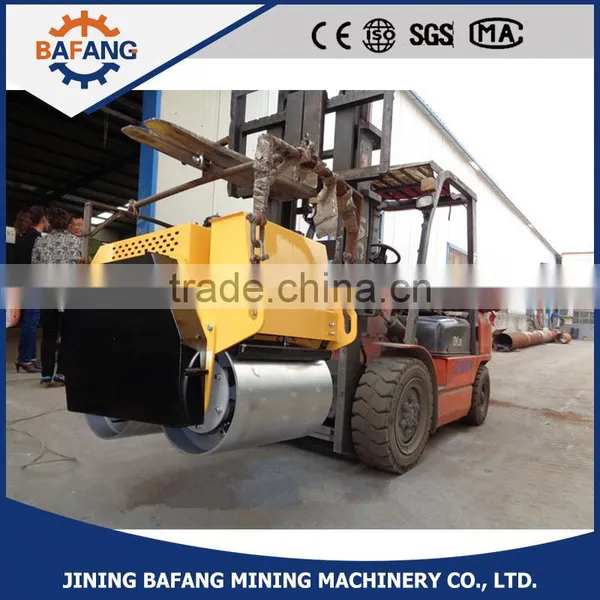

4.Sling position

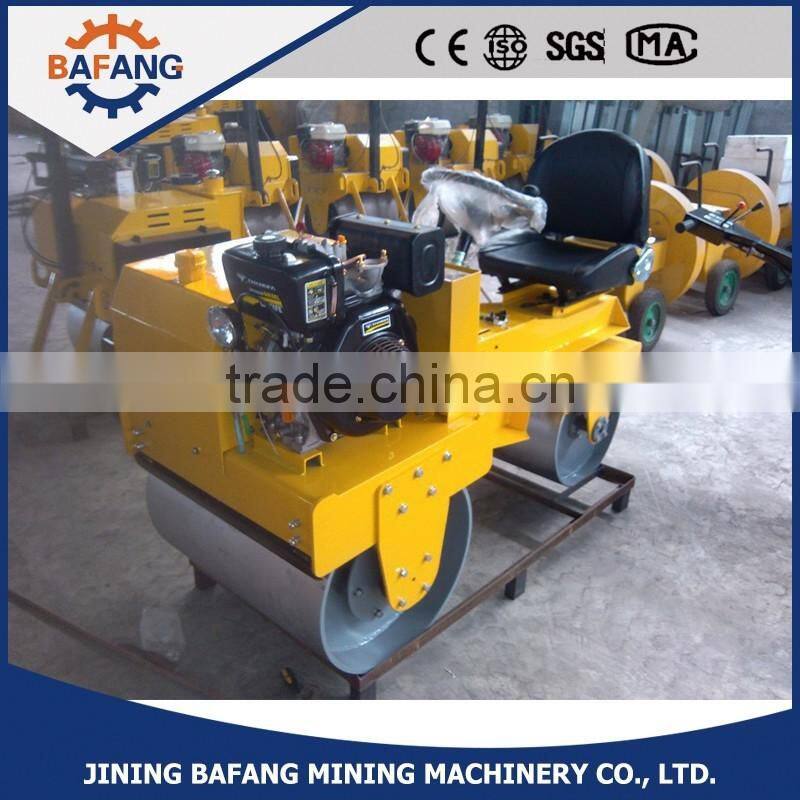

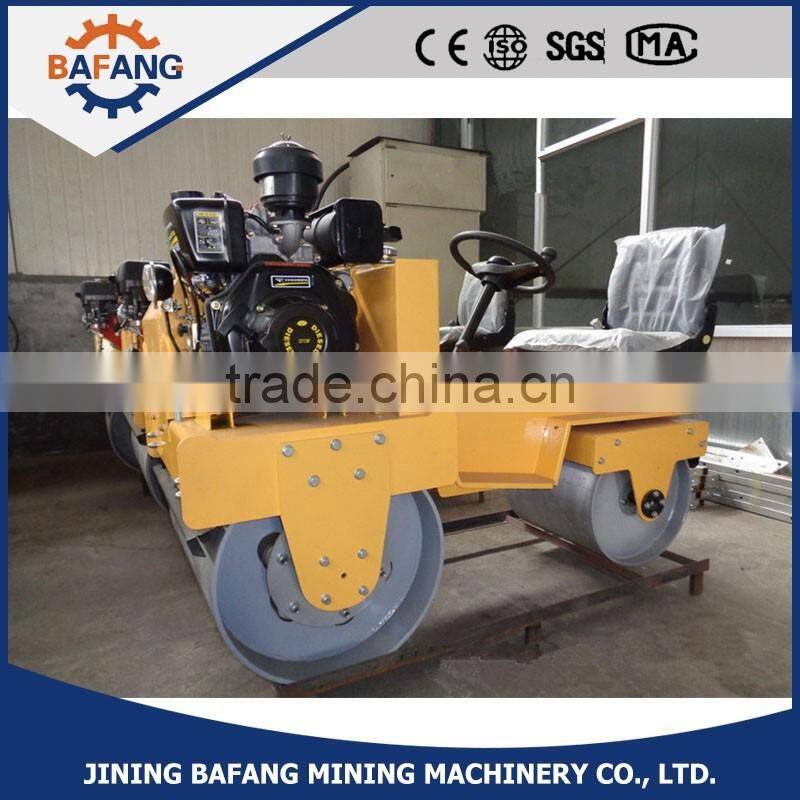

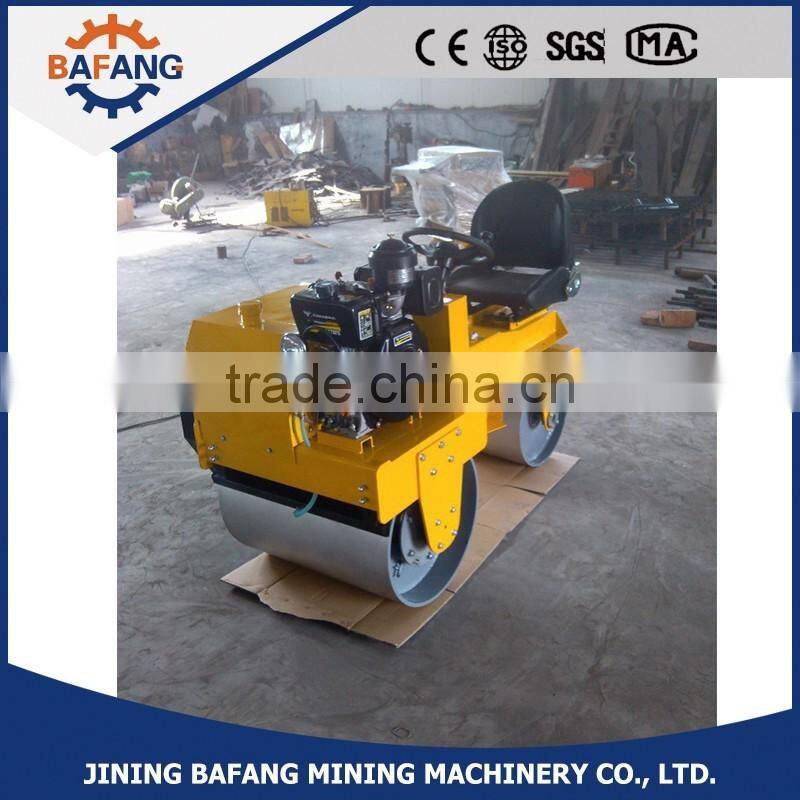

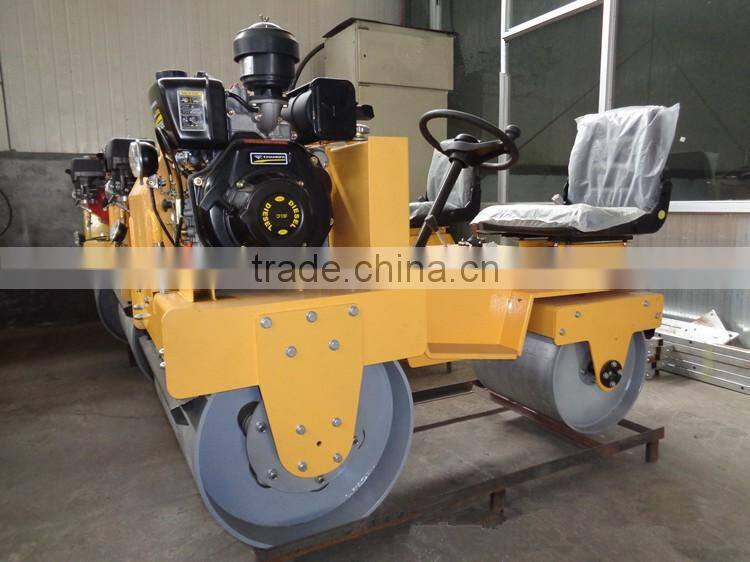

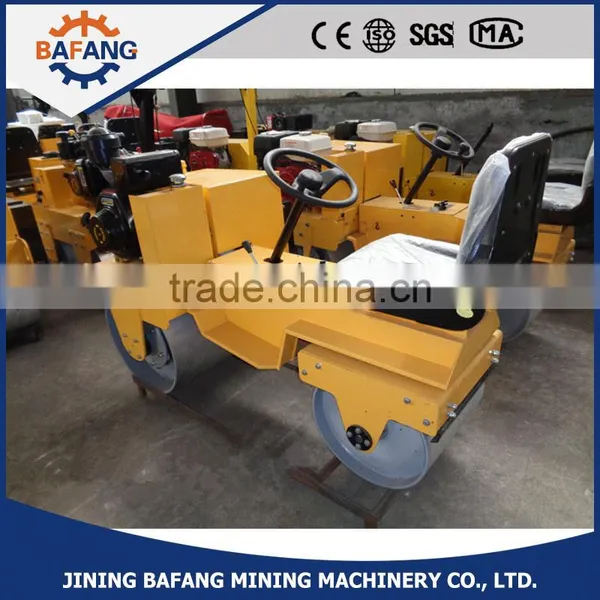

JS700A driving type double drum diesel engine road roller
Description
diesel engine double drum manual vibratory road roller is mainly used in foundation
ditch, road, sports venues built compaction, can also be used to compact asphalt surface.
Feature
1. Water cisterns to reduce both serious trouble, so that equipment can be continuous growth .
2.Operating radius is small, can work in a small area.
3.Operationhandle integrated with travel, engine throttle and vibration controls for simple.
4. Optimized Structural Design, light weight but strong pressure and easy tranportation.
5.diesel engine CF178F .
Parameter
Model | JS-700A |
Walk Speed | 0-4km/h |
Climbing Capacity | 30% |
Drive | Hydrostatic Drive |
Vibration Control | Automatic Clutch |
oil consumption | 280g/kwh |
Nominal amplitude | 0.5mm |
Vibration frequency | 75HZ |
Exciting force | 30KN |
Water tank | 30L |
hydraulic oil tank | 3.5L |
Engine Model | CF178F |
Power | 6HP |
Steel Wheel Size | φ450*700mm |
Package Size | 1850*860*1250mm |
Net Weight | 720kg |
Detailed picture
