YTT-200 hydraulic rail joint deburring machine/rail weld sharing machine with factory priece

Introduction&Application

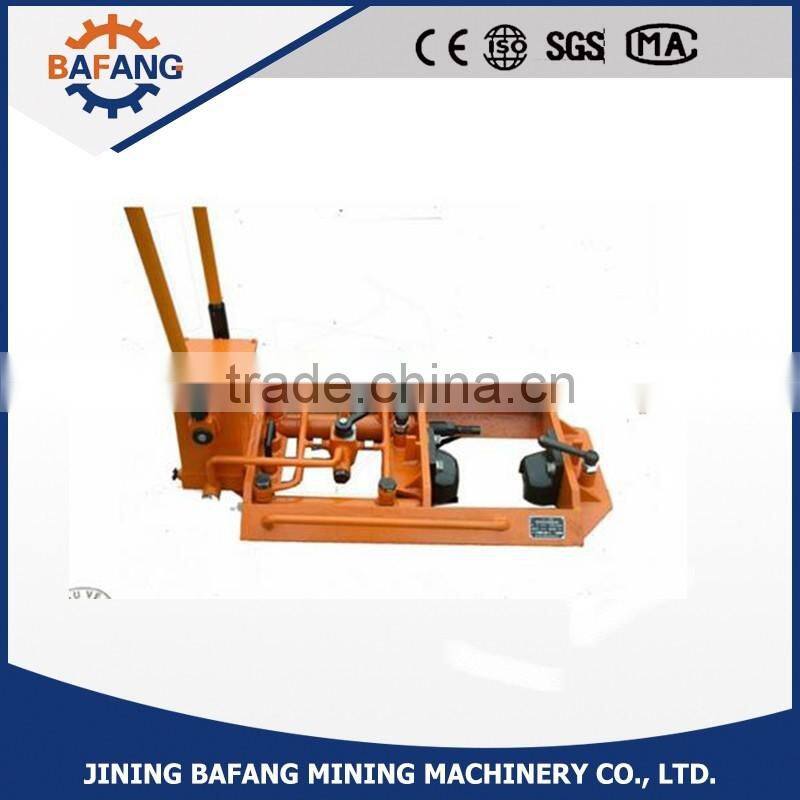

YTT-200 hydraulic rail joint deburring machine adopts manual hydraulic transmission. It has the advantages of simple structure, small volume, light weight, carrying and operation are more convenient, applicable to 75kg / M and a rail dry mode and wet model thermite welding process welding slag pushing in. On the top of the rail, the rail top side of the upper edge of the weld reinforcement and gate and riser can be a push in. Hydraulic rail push convex machine is engineering construction. The construction of the new line. The ideal repair tool.



 Technical Parameters



 Max. thrust (double cylinder)

150KN

Max. handle working torque

120J

Handle swing angle

38°

Working cylinder diameter

50mm

effective length

140mm

 Hydraulic system pressure

40 Mp

weight

65Kg

dimension

900mm*400mm*380mm







Figure Photos

YTT-200 hydraulic rail joint deburring machine/rail weld sharing machine with factory prieceYTT-200 hydraulic rail joint deburring machine/rail weld sharing machine with factory prieceYTT-200 hydraulic rail joint deburring machine/rail weld sharing machine with factory priece
