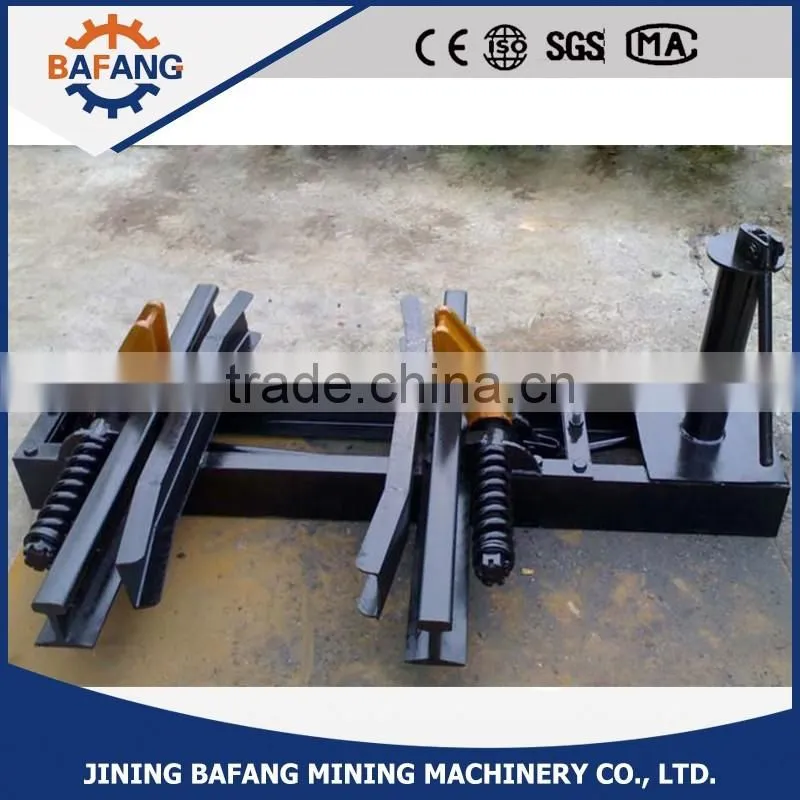

Double manual track arrester /rail arrester
Product Introduction
1. The type of the car arrester is arranged according to the engine. (1). Pneumatic; (2). Electric (3). Manual operation 2. The gauge of the car arrester: 600mm , 762mm, 900mm, 1435mm, and as your requirements. Remark: this is accordding to the gauge of the steel railway. 3. The type of the carrester is also according to the type of the steel rail, both of them must be consistent. 4. The material: (1). Fundation: channel beam (2). The rail of the carrester: Q235, 55Q 5. Usage: used to stop the mine car and prevent the mine car from sliding down and mine disaster accident. 6. scope of business: fixed mine car, bucket dumping mine car, one side dumping car, mining flat bed car, material car, wheel sets, mining steel rail, fishplate, rail nuts, rail cutting machine, rail drilling machine, rail bender, rail track jack, and etc.
Main Parameter
Model |
Track mm |
Payload (kg) |
Operate |
Track QTY |
ZCQ-6/9/1435-18 |
600/9/1435 |
18 |
Handle |
single/double |
ZCQ-6-22 |
600/9/1435 |
22 |
Handle |
single/double |
ZCQ-6-24 |
600/9/1435 |
24 |
Handle |
single/double |
ZCQ-6-30 |
600/9/1435 |
30 |
Handle |
single/double |
ZCQ-6-38 |
600/9/1435 |
38 |
Handle |
single/double |
ZCQ-6-43 |
600/9/1435 |
43 |
Handle |
single/double |
ZCQ-6-50 |
600/9/1435 |
50 |
Handle |
single/double |
ZCQ-6-60 |
600/9/1435 |
60 |
Handle |
single/double |
ZCQ-6-75 |
600/9/1435 |
75 |
Handle |
single/double |
Figure Photos
