The BRW series high quality mine emulsion pump factory supplier
Emulsion pump is mainly used as the power source of coal mine mechanization mining coal bed conveyor, also applies to the ground cleaning equipment and hydraulic equipment is used as the power source, the working fluid for 3-5% emulsion or water.
Feature
1.Horizontal three plunger, tapered suction, exhaust valve.
2.Quadrupole explosion-proof motor driving, tire coupling, a cylindrical gear reducer.
3.The safety valve, no unloading valve. Safety of motor and pump in the same bottom drag on.
Technical parameter
Model | Flow (L/min) | Pressure (MPa) | Motor Power (kw) | Plunger diameter (mm) | Tank volume (L) |
BRW80/15 | 80 | 15 | 30 | 32 | 640 |
BRW80/20 | 80 | 20 | 37 | 32 | 640 |
BRW80/31.5 | 80 | 31.5 | 55 | 32 | 640 |
BRW80/40 | 80 | 40 | 75 | 32 | 640 |
BRW125/31.5 | 125 | 31.5 | 90 | 40 | 1000 |
BRW160/31.5 | 160 | 31.5 | 110 | 45 | 2000 |
BRW200/31.5 | 200 | 31.5 | 125 | 50 | 2000 |

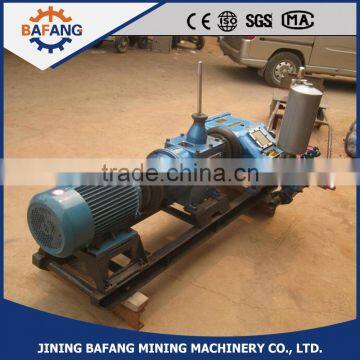

Products pictures
