The AE102 type Oxygen filling pump used for cylinder filling of high pressure
AE102 Oxygen-filling pump is an oxygen filling equipment that step up oxygen pressure from source bottle to another gas bottle, let the oxygen pressure of this gas bottle achieve the needed pressure. It is used for pump oxygen, nitrogen and carbon dioxide from source gas bottle and fills in the gas bottle which is waiting for inflating.
Advantage
1.Max exhaust pressure: 30Mpa
2.Exhaust Capacity while pump: 3L/min
Technical parameter
Item | Specification | ||
Max exhaust pressure | 30MPa | ||
Exhaust Capacity | 3L/min | ||
Grade of compress | Grade 2 | ||
Max compress rate | 8 | ||
Revolution of crankshaft | 440rmp | ||
Plunger stroke | 30mm | ||
Plunger diameter | Grade one ,18mm | Grade two,12mm |
|
Power of motor | 2.2kw | ||
Rotate speed | 1410r/min | ||
Voltage of motor | 380V/50Hz | ||
Dimensions | 860X565×640mm | ||
Weight | 116kg | ||

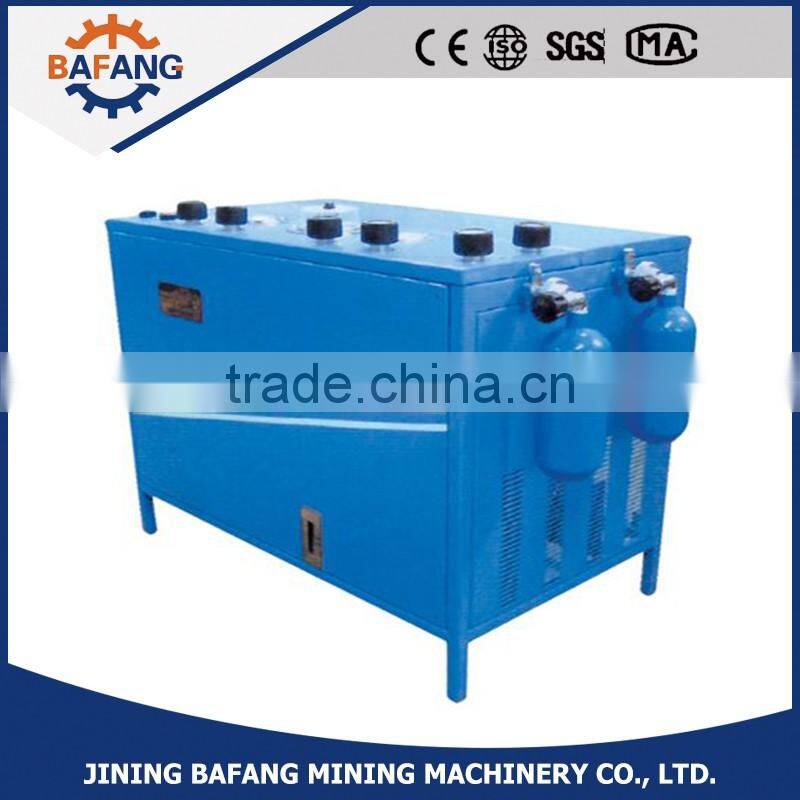

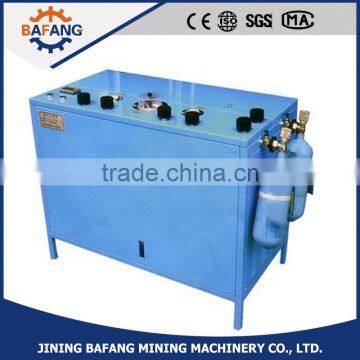

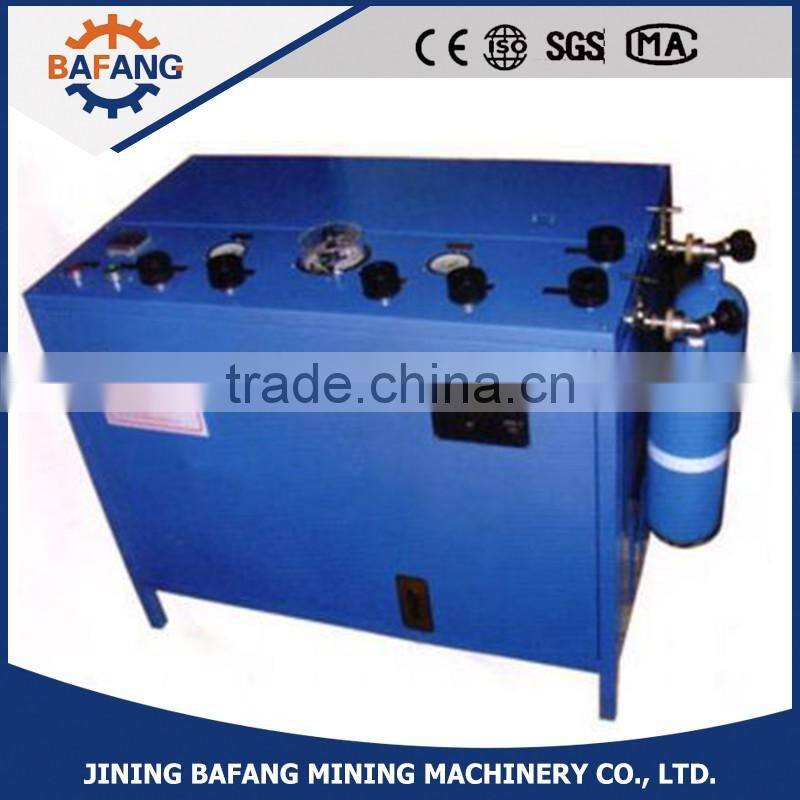

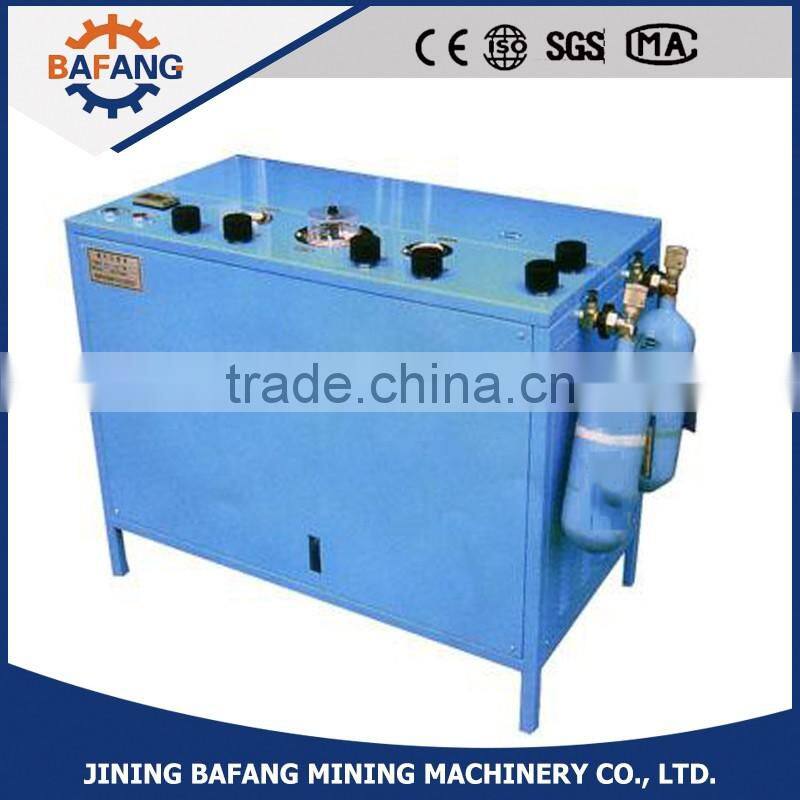

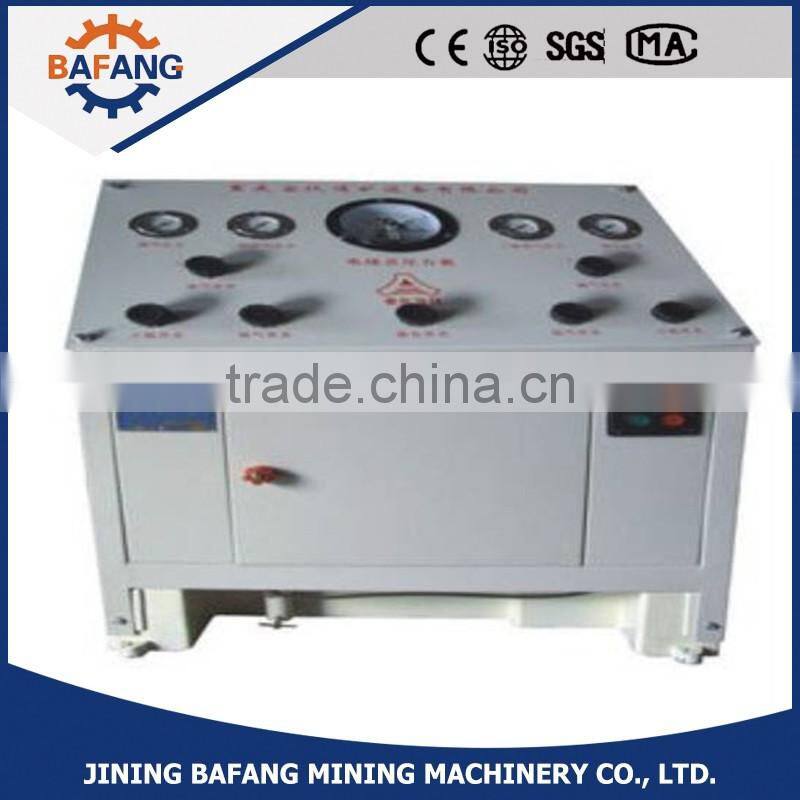

Product pictures
