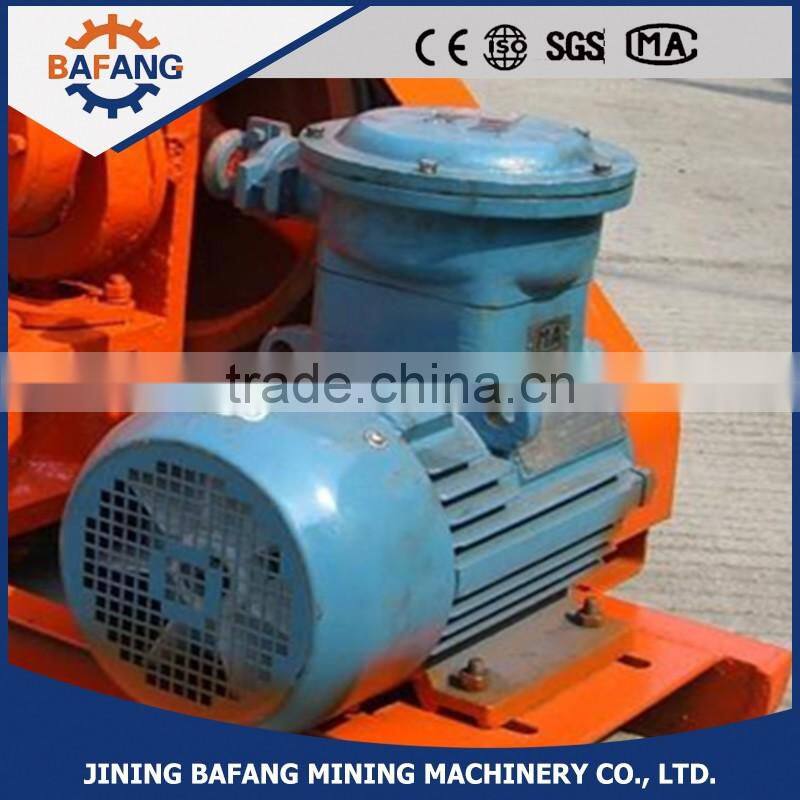

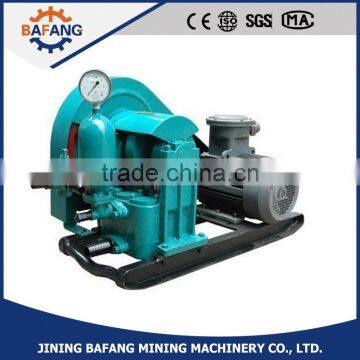

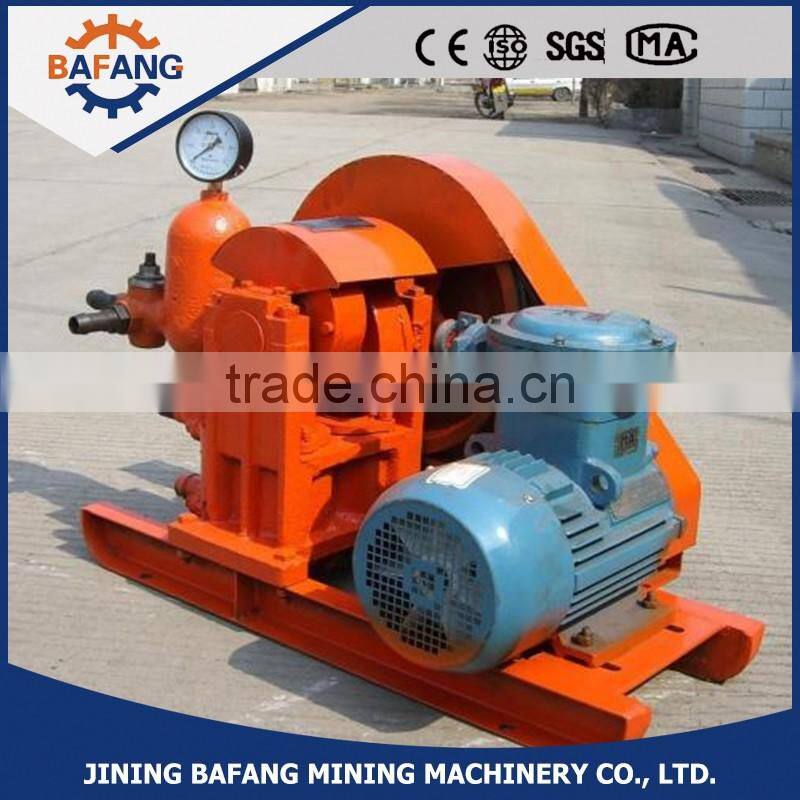

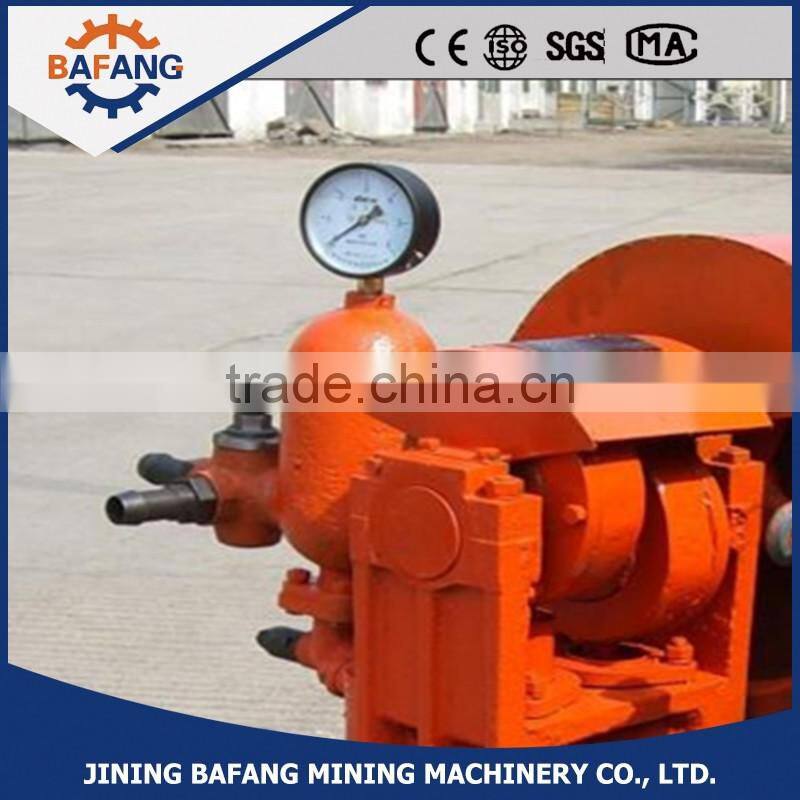

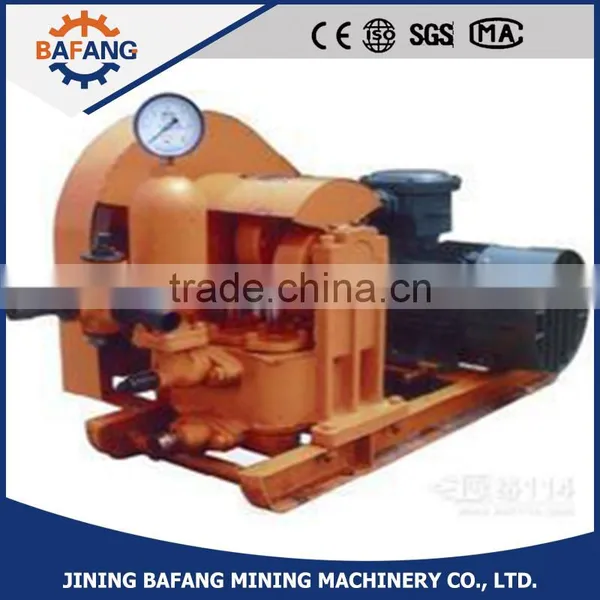

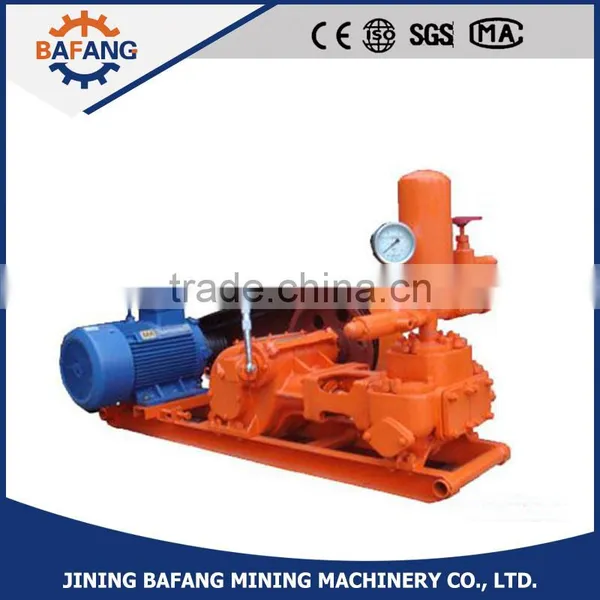

The mining machine 3NB75 type triplex-cylinder Slurry Pump
3NB75 / 2-4 Mine Coal slurry pump for coring or drilling in supplying cooling fluid. Rinse solution may be mud, water or underground coal-water, the sediment concentration is not more than 4%, and impurity particles less than 2mm of slime water. The pump and ZLJ series supporting the use of coal mine tunnel drilling, or with other systems supporting the use of water.
Features
Vertical two-cylinder (triplex) single-acting piston type mud pump.
Technical parameter
Model | 3NB75/2-4 | |
Rated flow | 75L/min | |
Rated pressure | 2Mpa | |
Diameter | φ55 | |
Plunger stroke | 50 | |
Reciprocating number | 255 | |
Suction pipe diameter | φ45 | |
Drain path | φ25 | |
Motor | Model | YBK2-132M1-6 |
Power | 4kw | |
Rotate speed | 960r | |
Weight | 300KG | |
Dimension | 1250×520×700mm | |
Product pictures
