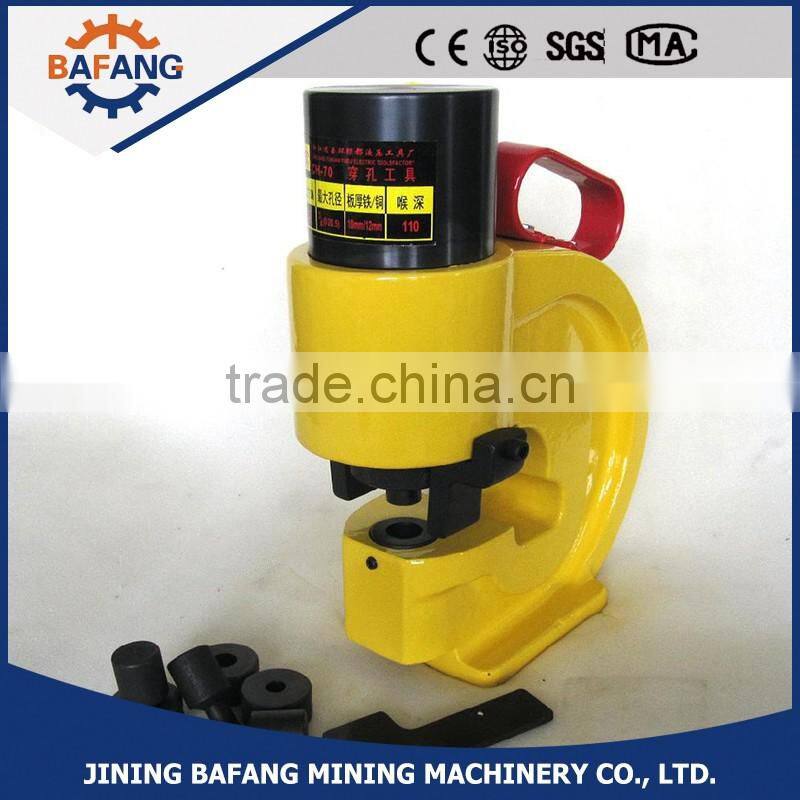

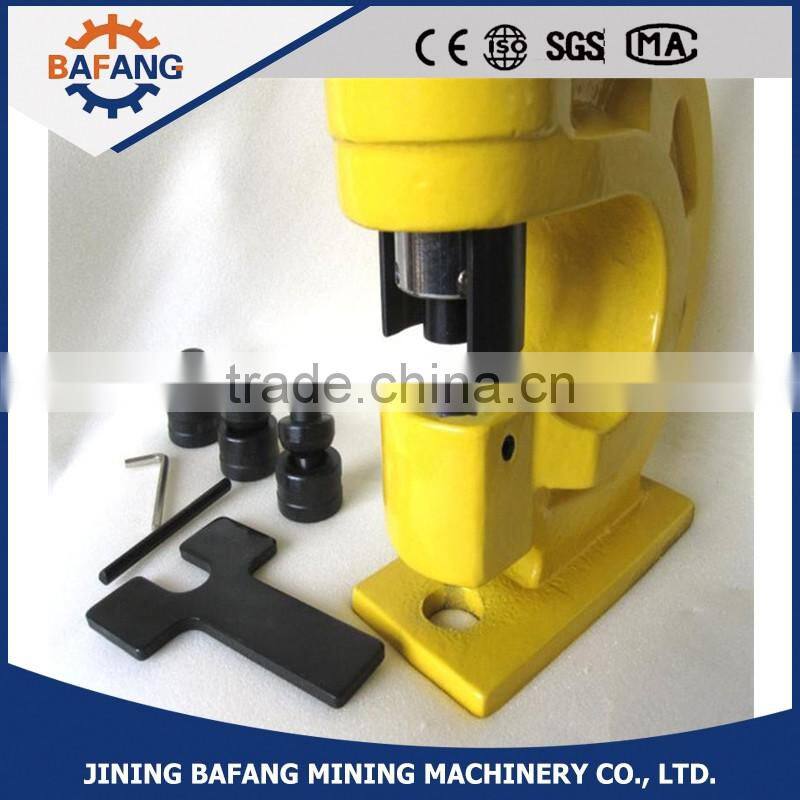

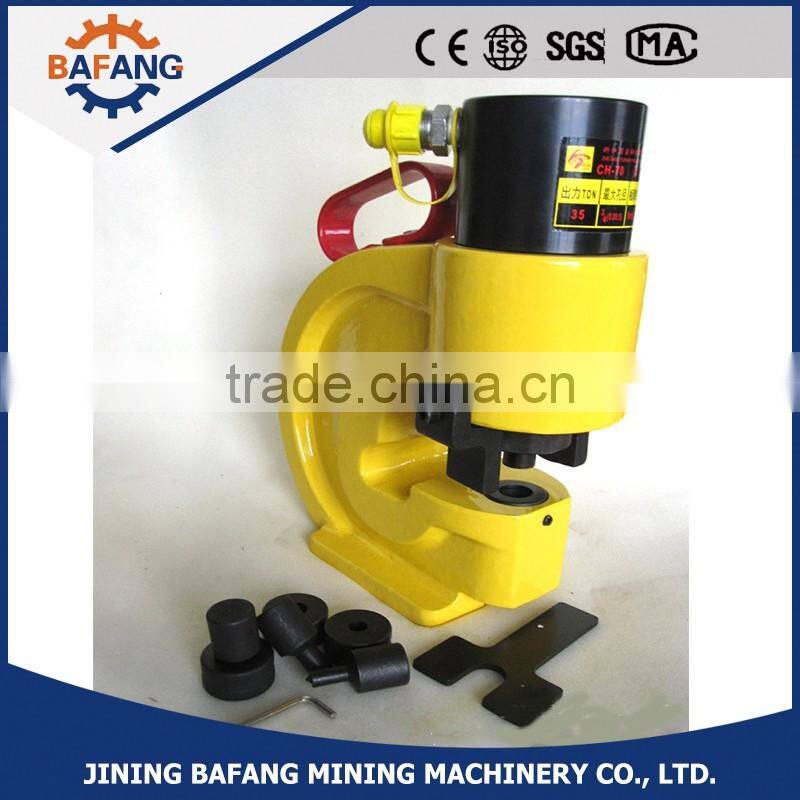

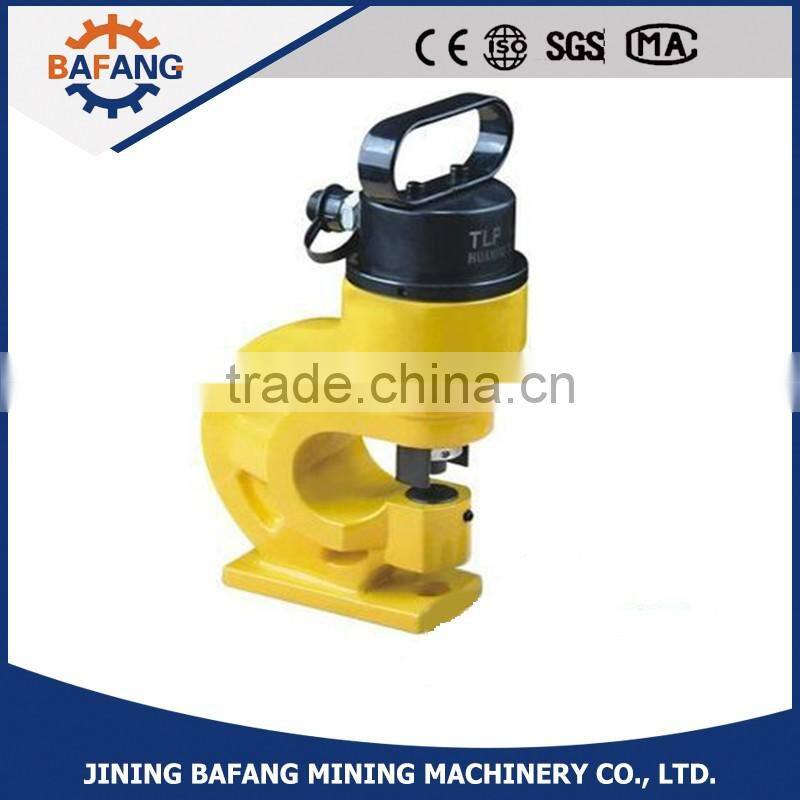

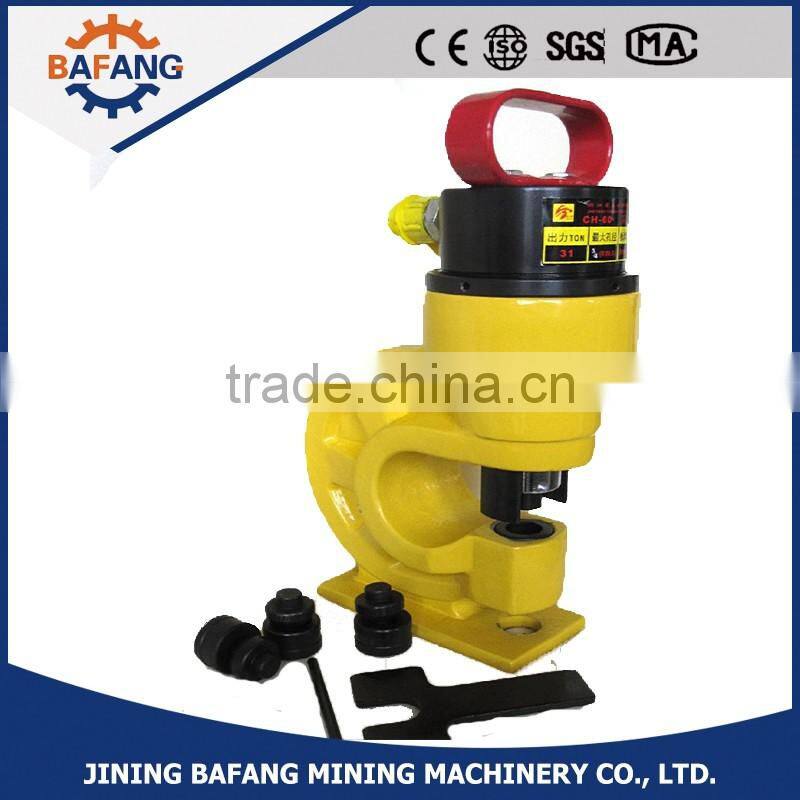

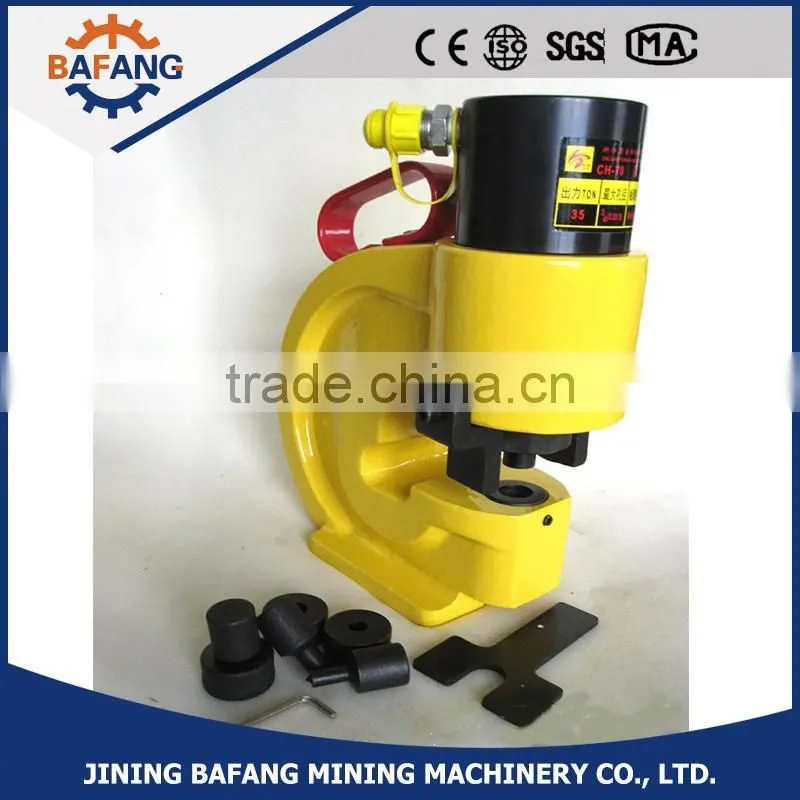

Hydraulic Puncher Hole Machine
CH -60/70/80 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.
Main Parameter
Type |
Output |
Thickness iron |
Thickness copper |
Throat Depth |
Weight |
Model(mm) |
CH -60 |
31T |
6mm |
10mm |
95mm |
19kg |
10.5,13.8,17.5,20.5 |
CH -70 |
35T |
10mm |
12mm |
110mm |
38kg |
10.5,13.8,17.5,20.5 |
CH -80 |
50T |
16mm |
20mm |
115mm |
50kg |
16,18,22,25 |
Figure Photos
