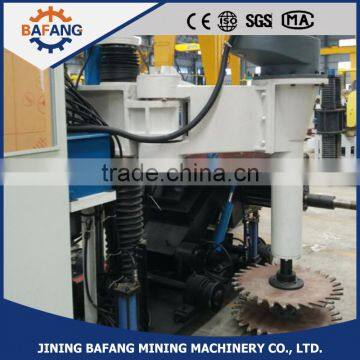

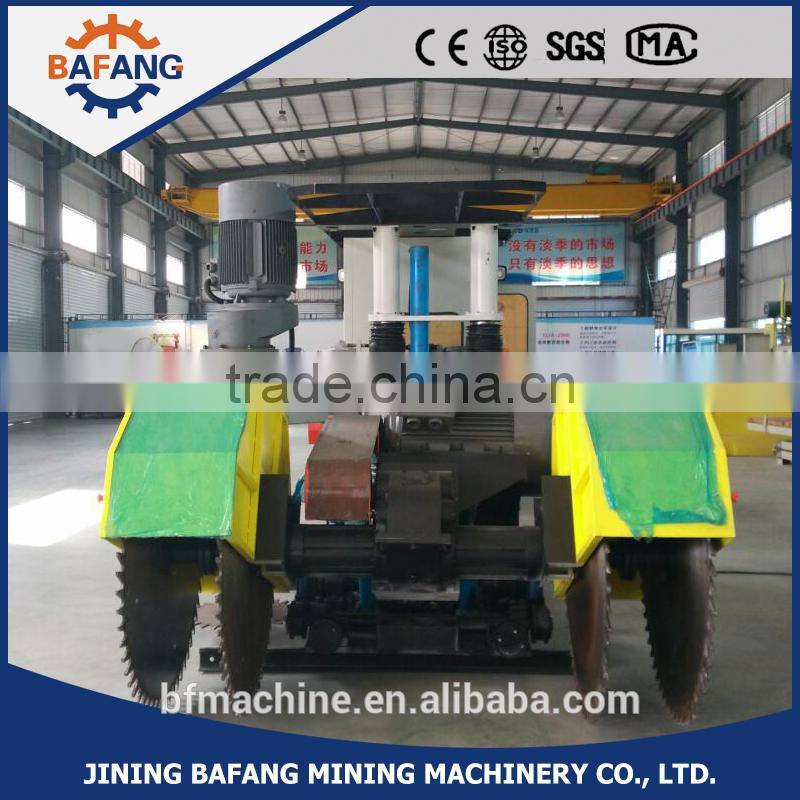

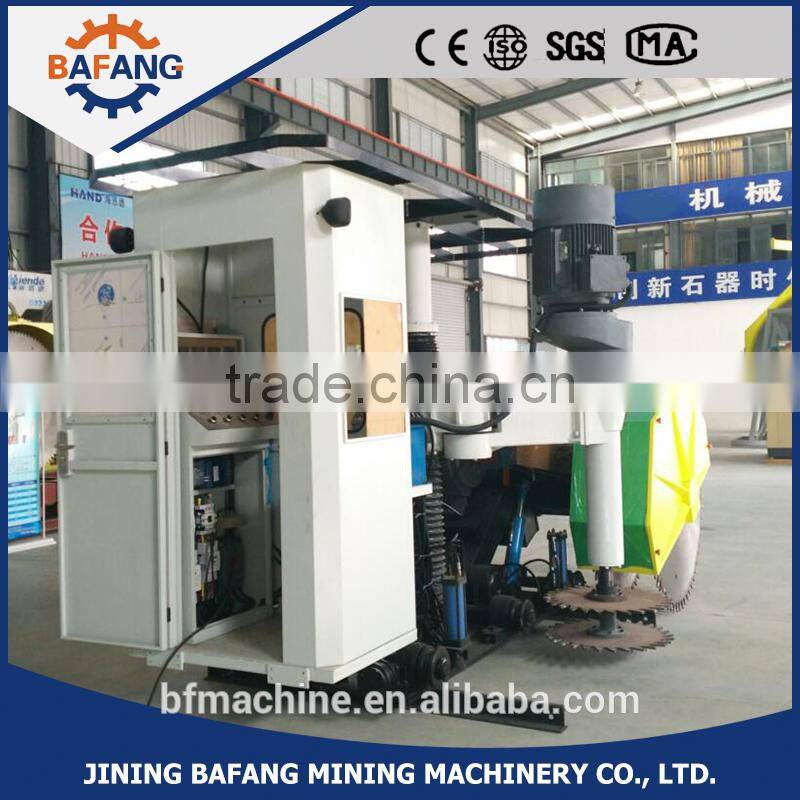

SYJ-700 Self-propelled Electric Quarry Stone Block Sawing Cutting Machine
SYJ-700 self-propelled electric quarry stone block sawing cutting machine
Features:
1.Two-cylinder guide is used for lifting, which makes the whole structure more stable and flexible. Higher automatically, it is suitable for all kinds of sandstone.
2.With automatic intelligent frequency conversion control technology, more Convenient operation, higher precision and efficiency, novel appearance.
3.Characteristic of the rocker arm, swing arm and main transmission frequency controls the speed, Steady and rapid lifting the blade, suitable for various of cutting.
Technical Parameters
Model |
| SYJ-1400 |
Unit | ||
|
| |
|
|
|
Quantity of blade | Pic | 1-6 |
|
|
|
Diameter of blade | mm | φ700-φ1400 |
|
|
|
Max cutting dimension | mm | 400*200*200(adjustable) |
|
|
|
Max lifting stroke | mm | 950 |
|
|
|
Max moving stroke of | mm | 240 |
blade | ||
|
| |
Power of horizontal | kw | 30 |
cutting motor | ||
|
| |
Power of vertical cutting | kw | 55 |
motor | ||
|
| |
Total power | kw | 93 |
|
|
|
Center distance of rail | mm | 1000 |
|
|
|
Overall dimension | mm | 3600*2350*2600 |
(L*W*H) | ||
|
| |
Approximate weight | kg | 6000 |




Quality Assurance
1.Machine meet the standards of factory standard,Ministry of standard,GB set quality standards.
2. According to the relevant provision of the “National Product Quality Supervision and
Regulation” Product,we implement the“three guarantees”:repair,replace or return.
3. If not belongs to supplier responsibility herein shall be settled by friendly consultations of two parties.
