Enhanced DWX Suspending outside inject type single hydraulic prop
Description
DWX Type Suspended type single hydraulic prop has the high working resistance ,
light weight ,long service life ,big work stroke ,low using cost,easy and low cost for
maintenance ,easy operation ,wide use range and good stability .
Applicance
DWX Type prop adopt plunger type suspension technology principle,make the hydraulic
suspension force directly thorough the role of the inner chamber of the prop plunger effect on
the roof ,make the hydraulic suspension force share the support working resistance around 4/5,
make the prop in the stress of the shaft only about 1/5 of the working resistance . Improve the
stability and the security of prop ,also greatly improved the prop support height and carrying
capacity .
Feature
1) Has the strong ability of partial load resistance and grater stability .
2) high reliability .
3) light weight
4) Big working stroke
5) Easy to use
Parameter
|
Model
|
Max. Height (mm) |
Mini. Hight (mm) |
Working stroke (mm) |
Work resistance (KN) |
Weight (kg) |
Working range (mm) |
|
DW45-- 200/110X |
4500 |
2520 |
1980 |
200 |
109.0 |
2620~4500 |
|
DW42-- 200/110X |
4200 |
2360 |
1840 |
|
101.0 |
2460~4200 |
|
DW40-- 200/110X |
4000 |
2250 |
1750 |
|
95.0 |
2350~4000 |
|
DW38-- 200/110X |
3800 |
2140 |
1660 |
|
89.0 |
2240~3800 |
|
DW35-- 300/110X |
3500 |
1980 |
1520 |
300 |
75.5 |
2080~3500 |
|
DW31.5-- 300/110X |
3150 |
1800 |
1350 |
|
67.0 |
1900~3150 |
|
DW28--3 50/110X |
2800 |
1620 |
1180 |
350 |
61.1 |
1720~2800 |
|
DW25-- 350/110X |
2500 |
1450 |
1050 |
|
57.5 |
1550~2500 |
|
DW22-- 350/110X |
2240 |
1300 |
940 |
|
52.5 |
1400~2240 |
|
DW20-- 350/110X |
2000 |
1170 |
830 |
|
48.0 |
1270~2000 |
|
DW18-- 350/110X |
1800 |
1055 |
745 |
|
44.5 |
1155~1800 |
|
DW16-- 350/110X |
1600 |
940 |
660 |
|
41.0 |
1040~1600 |
|
DW14-- 350/110X |
1400 |
830 |
570 |
|
37.5 |
930~1400 |
|
DW12-- 350/110X |
1200 |
720 |
480 |
|
33.0 |
820~1200 |
|
DW10-- 350/110X |
1000 |
615 |
385 |
|
29.5 |
665~1000 |
|
DW08-- 350/110X |
800 |
510 |
290 |
|
25.5 |
560~800 |
|
DW06— 350/110X |
630 |
420 |
210 |
|
23.0 |
470~630 |

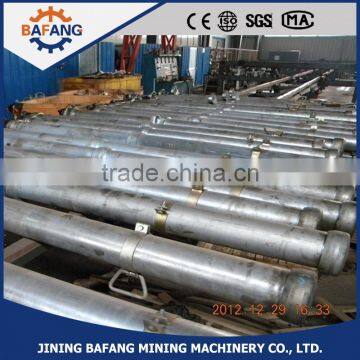

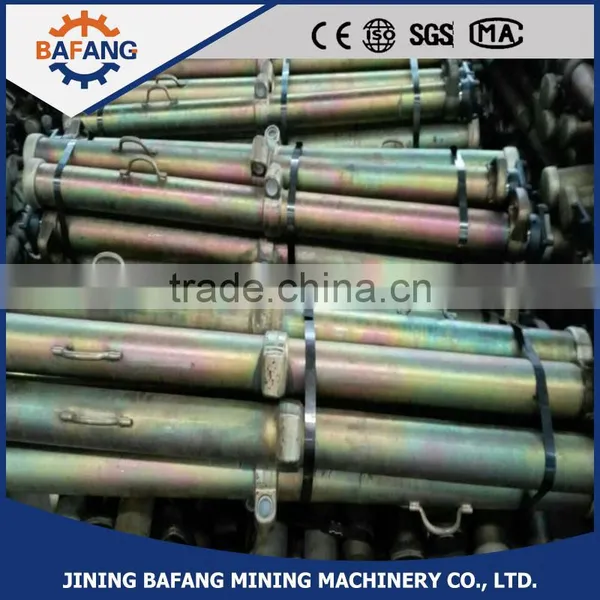

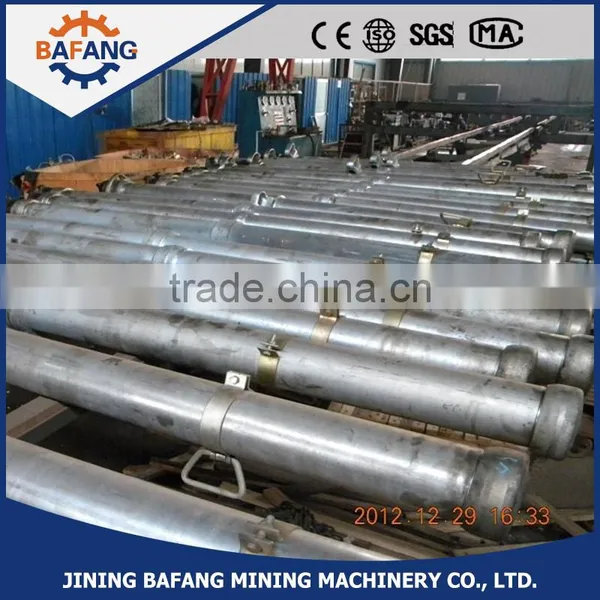

Detailed picture
