DW Single Hydraulic Prop for Underground Mining /supporting equipment
- 1000 Piece / Pieces per Month
- qingdao
- Credit Card
You May Like
-
Factory Selling hydraulic prop Used for Coal Mining
-
DW Single Hydraulic Prop for underground coal mine
-
DW series high quanlity single hydraulic support prop
-
DW single hydraulic prop,coal mining support machine
-
DW Single Hydraulic Prop for Underground Mining
-
Easy operation DN handle type inner injecting single hydraulic prop
Product Details
| Place of Origin | Shandong, China | Brand Name | BAFANG | |
| Model Number | DW | Type | Slip | |
| Machine Type | Other | Certification | API | |
| Material | Carbon Steel | Processing Type | Forging | |
| Use | Coal Mining |
Product Description
specification
1) DW/DN type single hydraulic prop;
2) 27SiMn single hydraulic prop special seamless steel tube;
3)Good quality and price
DW single hydraulic prop,coal mining support machine
Description
DW single hydraulic prop is constant resistive pillar, which can match with a variety of roof
beams and also could be used as the primary column. Mechanized coal mining for coal generally
or blasting mining face plate supporting items are also available for mechanized coal face end
support or other temporary support to use.
Applicance
This series of hydraulic prop, good stability, technical performance advantages prominent,
high-grade coal mining face will be the single support height from 2.5 meters to 3.5 meters,
3.5 meters below the coal mining can achieve one full-height, while for the coal seam
thickness of 4.5 m below provides end face and advance support.
Feature
1, Long working stroke , especially for large height variation face of underground roof.
2, Apply inner bore seal bump- resistance in the underground, with a wide range of use.
3, Never broken. Using friction welding, the weld is not broken.
4, Uses a new sealing device, remove the DZ-type pillar between the piston and plunger leakage
point, safe and reliable.
5,Level of support available.
6, High strength, no bend.
Parameter
Type | Unit | DW35 | DW31.5 | DW28 | DW25 | DW22 | DW20 | DW18 | DW16 | DW14 | DW12 | DW10 | DW08 | DW06
|
Max Height | mm | 3500 | 3150 | 2800 | 2500 | 2200 | 2000 | 1800 | 1600 | 1400 | 1200 | 1000 | 800 | 600 |
Min Height | mm | 2700 | 2350 | 2000 | 1700 | 1440 | 1240 | 1110 | 1005 | 900 | 792 | 685 | 578 | 485
|
Working Stroke | mm | 800 | 800 | 800 | 800 | 800 | 760 | 690 | 595 | 500 | 408 | 315 | 222 | 145 |
Net Weight | kg | 82.8 | 76.4 | 70 | 58 | 55 | 49 | 47 | 43.6 | 39.9 | 36.3 | 32 | 26.7 | 26.5 |
Rated resistance | kN | 150 | 200 | 250 | 300 | |||||||||
Rated Fluid Pressure | Mpa | 19.1 | 25.5 | 31.8 | 38.2 | |||||||||
The First Sustaining Load | kN | 118--157 | ||||||||||||
Pump Station Pressure | Mpa | 15or20 | ||||||||||||
Column LiftingSpeed | mm/s | ≥60 | ||||||||||||
Column DescendingSpeed | mm/s | ≥40 | ||||||||||||
Diameter of oil cylinder | mm | 100 | ||||||||||||
The Base Area | cm2 | 113 | 109 | |||||||||||
Service Substance | Coaly(MD10 emulgator)emulgator or emulgator 1-2% emuision | |||||||||||||

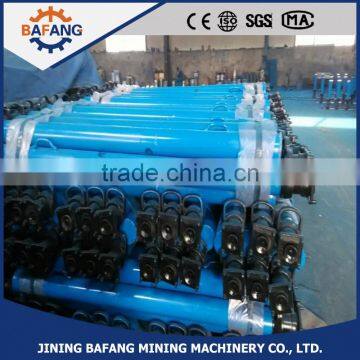

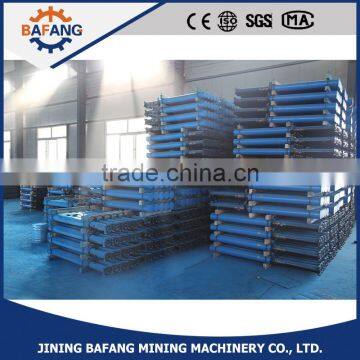

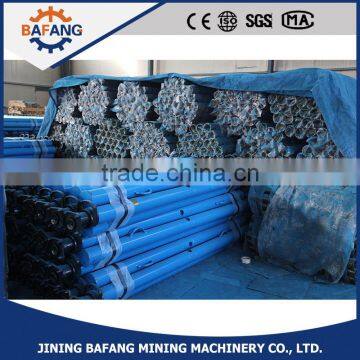

Detailed picture
