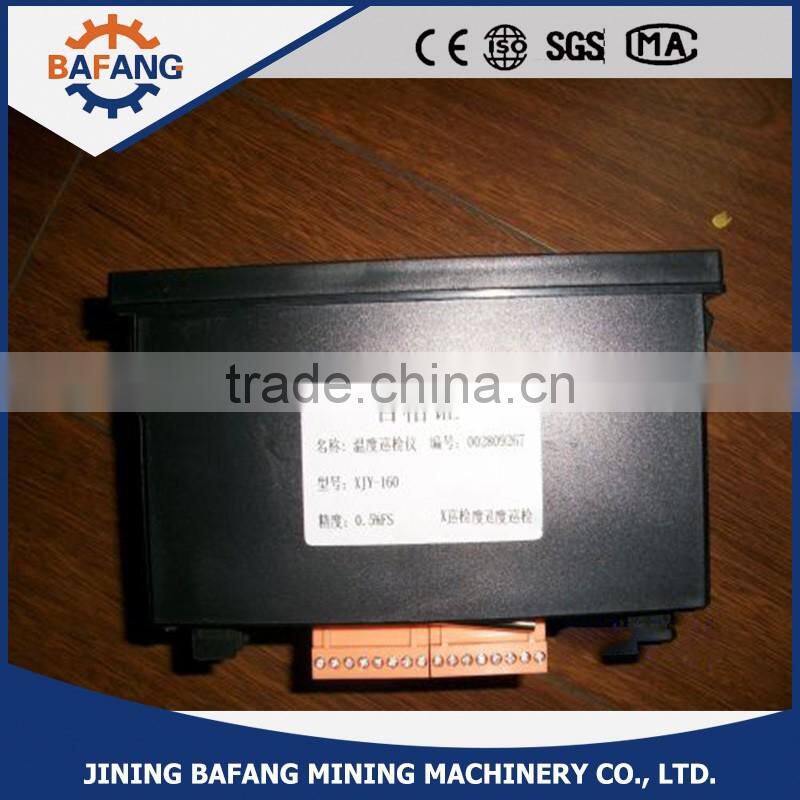

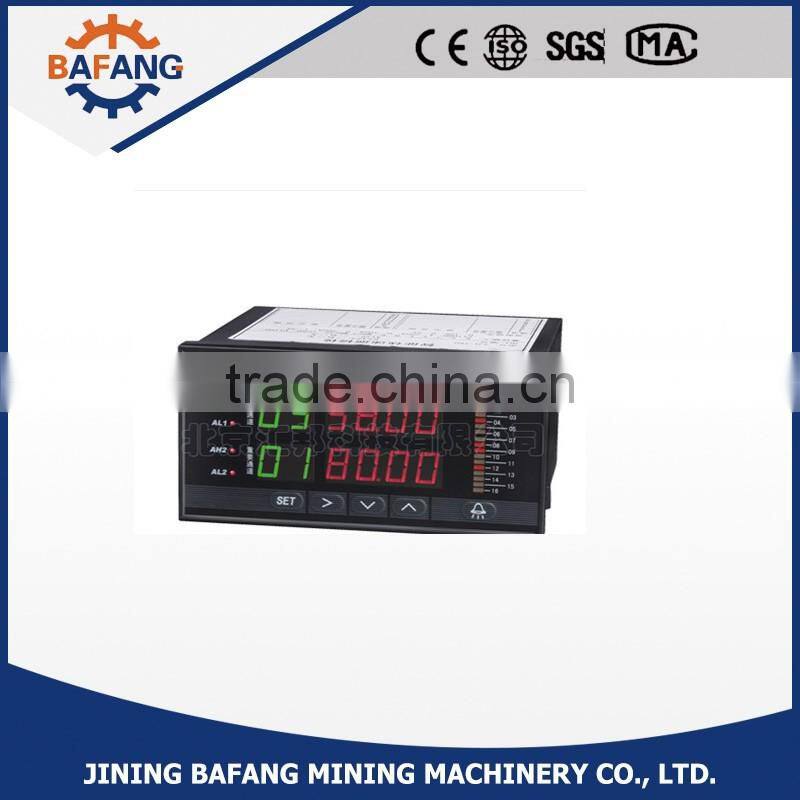

Intelligent patrol instrument/inspection meter
Introduction
XJY series is a intelligent inspection device with high performance data, you can enter the thermal resistance, thermocouple, standard current and voltage signals .Suitable for collecting intensive signal acquisition and display for greenhouse farming, buildings, warehouses, workshops, distribution cabinets and other places temperature, humidity continuous monitoring of the water level of rivers and lakes, the motor bearing temperature and other occasions.
Application
Intelligent inspection device applies to all kinds of sensors, transmitters, but for multi-channel temperature, pressure, liquid level, flow, weight and other industrial process parameters detection, alarm control, analog output circuit, data acquisition and communication.
Delivery Detail : Within 7 days after receive your payment
Packaging Details : Standard package or as customers' requirement
Feature
Strong anti-jamming capability, 24-Bit A / D, differential input.
Each can enter a different signal for each channel independently set the upper limit and lower limitalarm value.
A dedicated channel alarm indicator, built-in alarm buzzer can be manually silencer.
Important additional channels, sentinel surveillance of key channel.
RS485 communication output for easy connection and PC.
RS232 serial output print, can be connected with micro-printer.
Technical data
Item |
Specification |
Display precision |
four digit in 2 line |
Power supply |
AC/DC85~260V |
Contact capacity |
AC220V/3A;DC24V/5A |
Feed output |
24VDC |
Accuracy of measurement |
0.5% |
Working Temperature |
0-50℃ |
Relative humidity |
20-85%RH |
Storage temperature |
-10~70℃ |
Contact life |
100000times |
Digital size |
0.56inch |
Print interface |
RS232/9600bps |
Dimension |
160*80*148mm |
