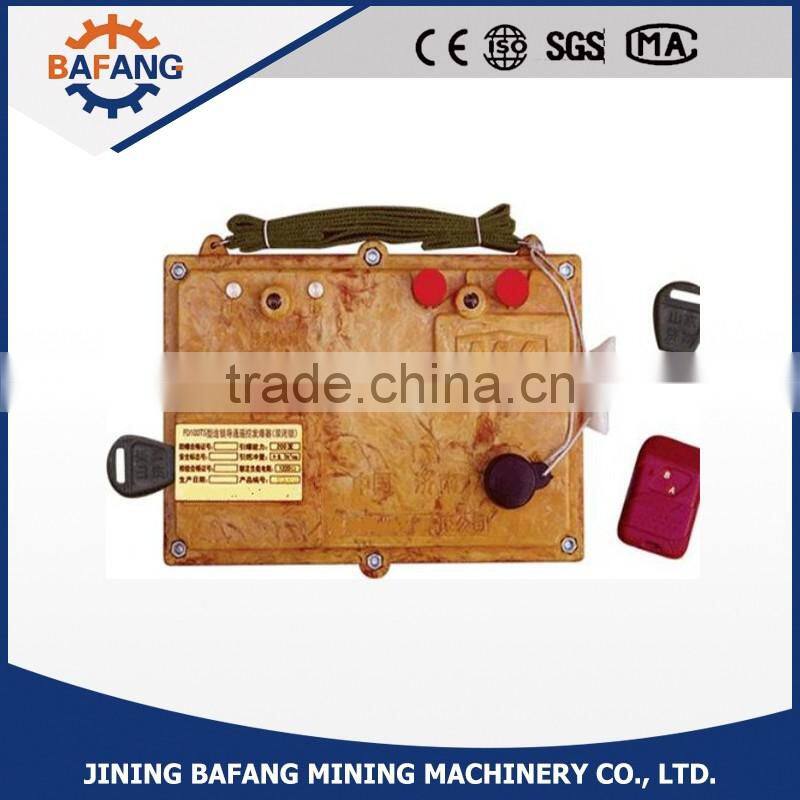

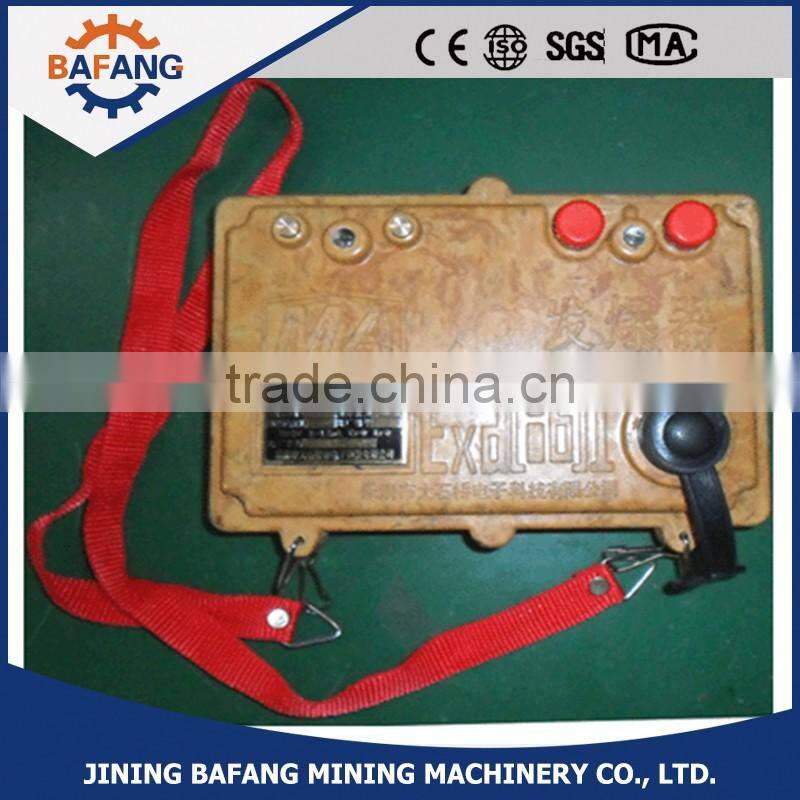

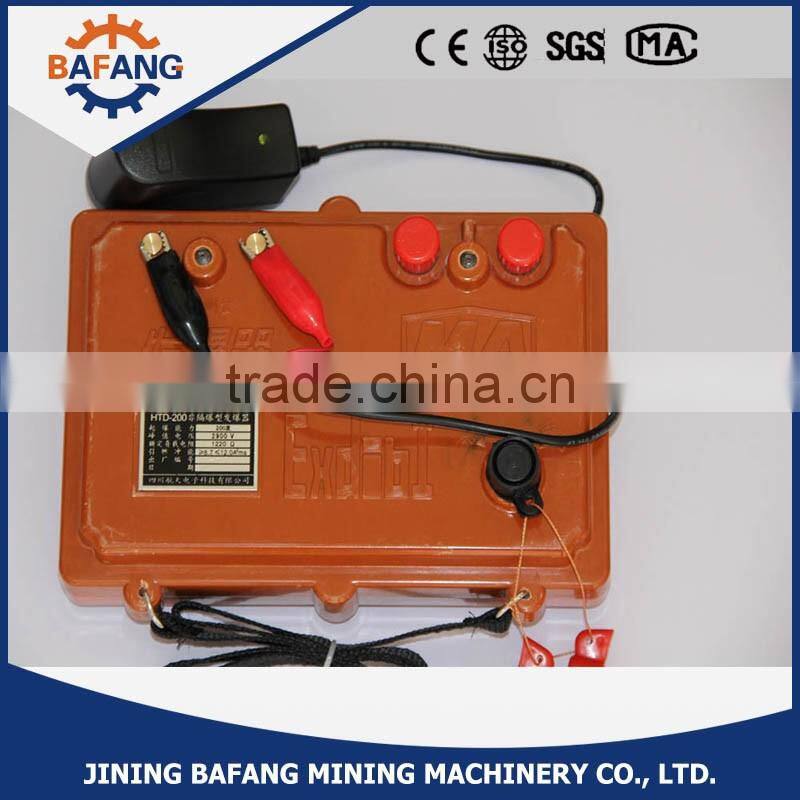

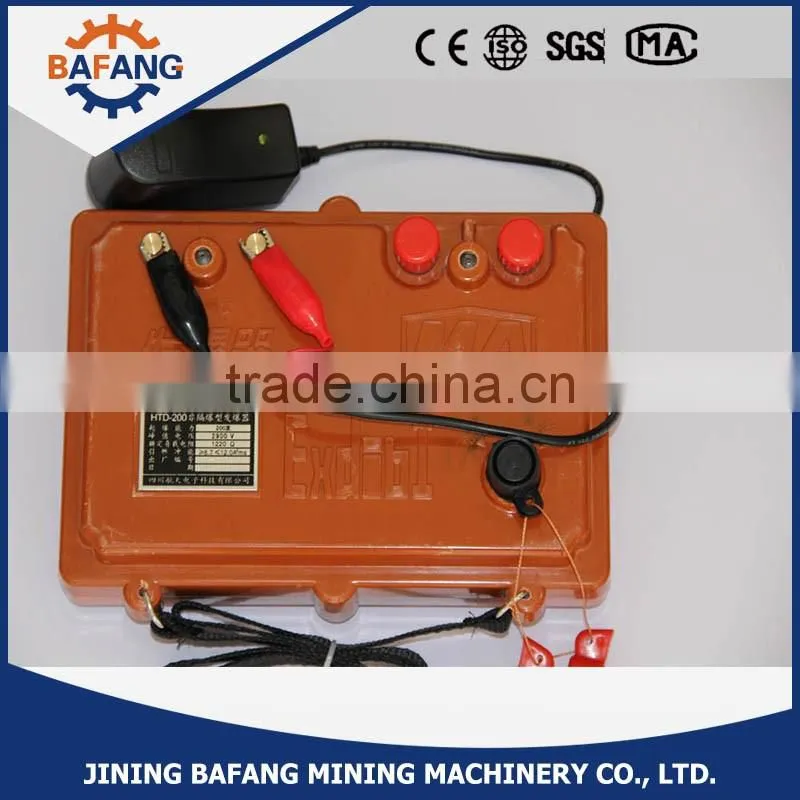

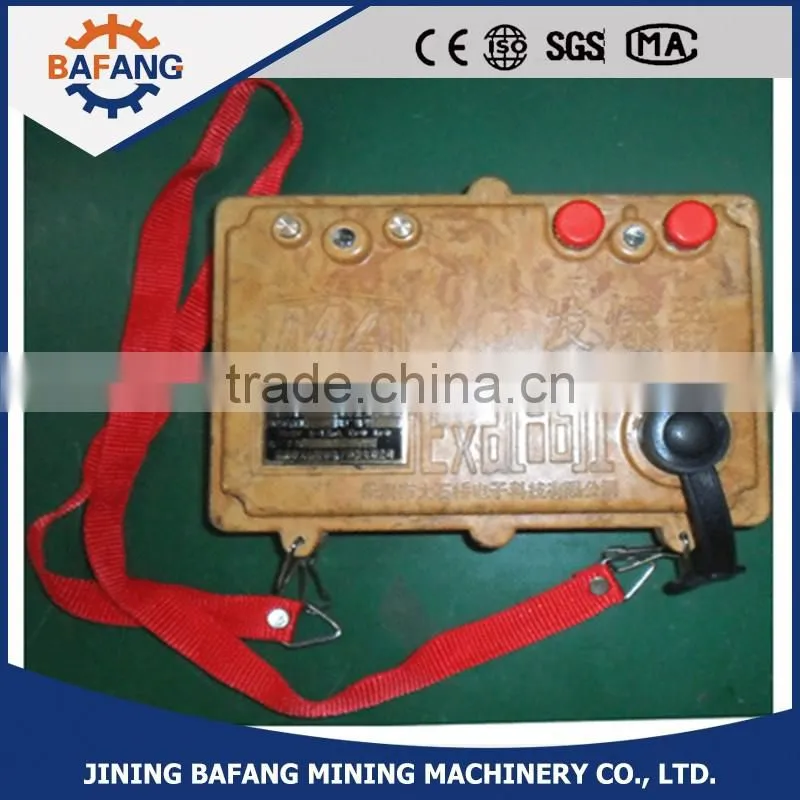

Exploders With Good Quality, FD Series Capacitor Discharge Type Exploders

Exploders With Good Quality, FD Series Capacitor Discharge Type Exploders thumbnail-1
Exploders With Good Quality, FD Series Capacitor Discharge Type Exploders thumbnail-2
Exploders With Good Quality, FD Series Capacitor Discharge Type Exploders thumbnail-3
Exploders With Good Quality, FD Series Capacitor Discharge Type Exploders photo-1
Exploders With Good Quality, FD Series Capacitor Discharge Type Exploders photo-2

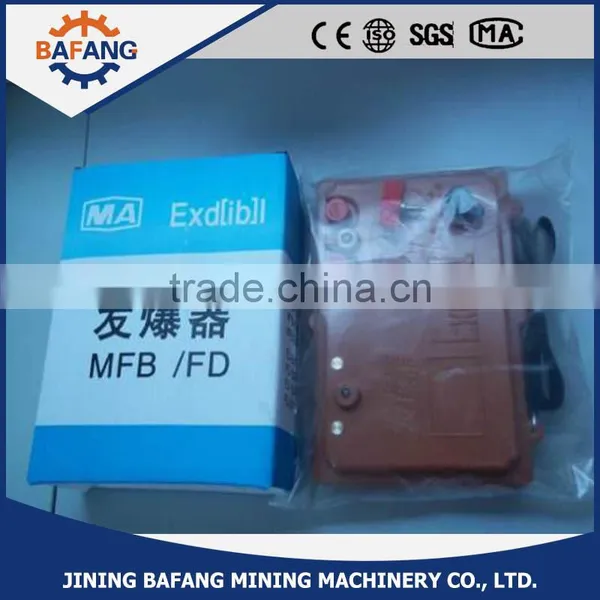

Exploders With Good Quality, FD Series Capacitor Discharge Type Exploders photo-3
US$ 15 - 40 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Bafang
Model Number:
FD
Contact Supplier Request Quote Chat Now
Jining Bafang Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Bafang
Model Number FD

FD series Capacitor discharge type exploders for coal mines





Product Description



Product Description



Use special tools to open the shell back cover then put into the battery before use. Attention the

battery polarity can’t opposite. Don’t touch the face of exploder-proof. Tighten the screws after put into battery. It can be used with an explosive mixture of methane and coal dust coal mine.





Packaging & Shipping



Delivery Detail : Within 7 days after receive your payment



Packaging Details : Standard package or as customers' requirement



 Features



Ambient temperature: 0~+40°C

Ambient air relative humidity less than 95% (When at 25 °C)

Atmospheric pressure: 80~106kpa

Ambient temperature storage environment: -40°C~+60°C





Model

FD-50

FD-100

FD-150

FD-200

Rated shot

50

100

150

200

Rated load resistance Ω

320

620

920

1220

Peak voltage V

900

1900

2400

2800

Intrinsic safety voltage Uo[V]

6

6

6

6

Intrinsic safety output current Io[mA]

6-20

6-20

6-20

6-20

Maximum open circuit voltage V

6

6

6

6

Max. short-circuit current A

5

5

5

5

Conduction test loop current mA

6-20

6-20

6-20

6-20

Specification of battery

1# Dry cell, voltage 1.5 V

Battery number (section)

4

4

4

4

Rated detonated times

50

100

150

200

Charging time S

≤10

≤20

≤20

≤20

Safe power supply time ms

≤4

≤4

≤4

≤4

Ignition impulse A2ms

8.7<12.0

8.7<12.0

8.7<12.0

8.7<12.0

Allowed external bus length    m

≤300

≤300

≤300

≤300

Bus distributed inductance  mH/km

≤0.1

≤0.1

≤0.1

≤0.1

Bus distributed capacitance  uF/km

≤0.1

≤0.1

≤0.1

≤0.1
