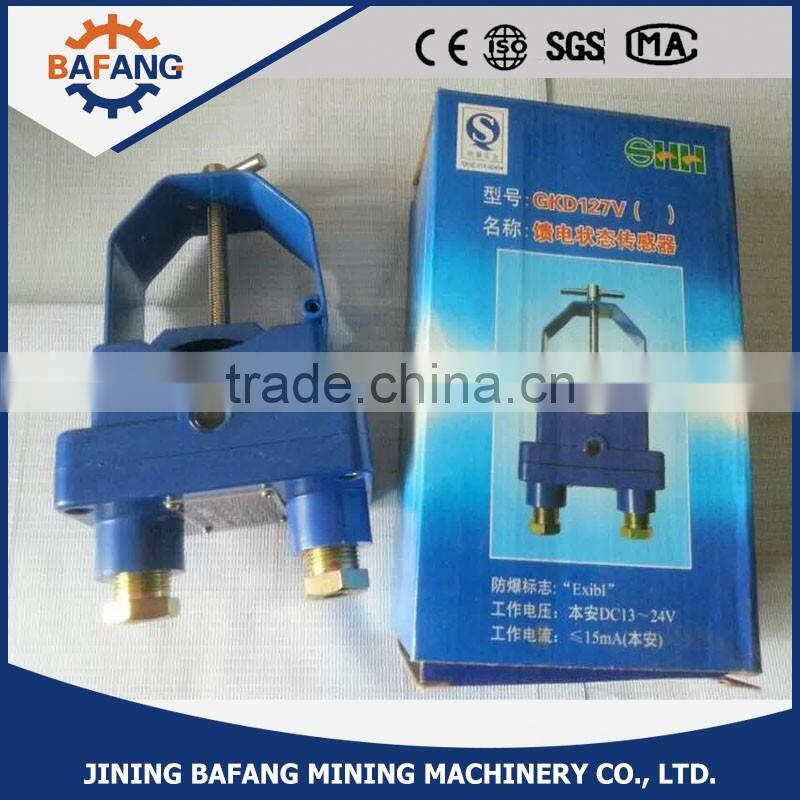

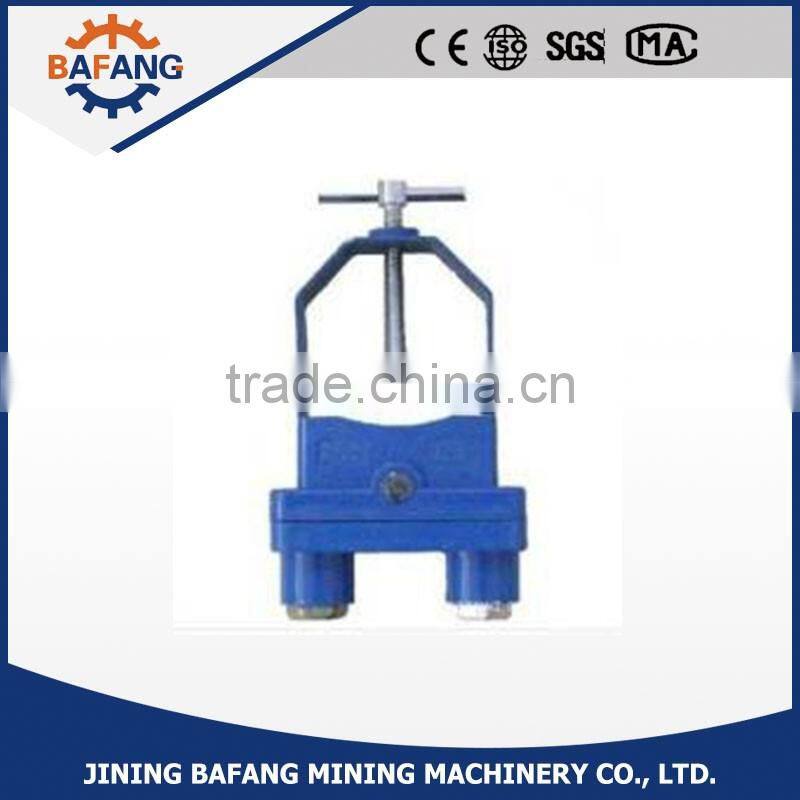

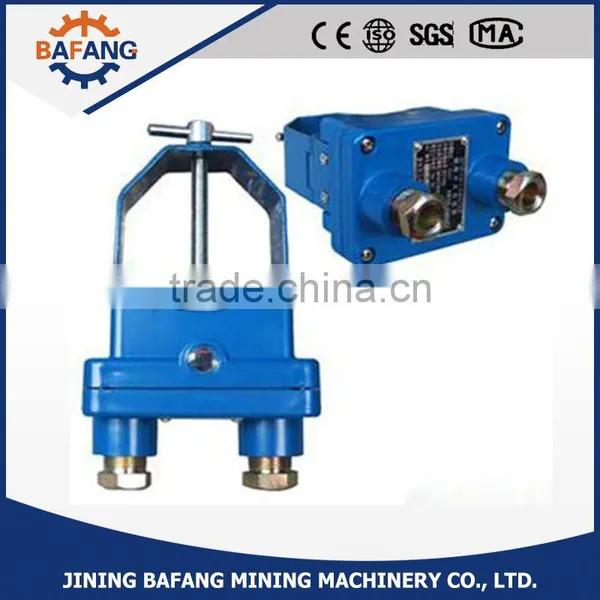

GKT127 power supply feed transducer
Application
The sensor is mainly applies to monitoring the cable core is charged, and output the
corresponding status signal collection and processing for the detection system at the same time. Put the sensor on the vacuum switch or lateral load cable of magnetic force starter,and link the
output to switch input.
Features
The sensor installation is convenient to use, with low power consumption, stable performance and low maintenance workload, etc. It can work with compatible with other domestic coal mine monitoring system.
Main technical index
Item |
Specification |
Wiring system |
two-wire system |
Working Voltage |
9~18V DC |
Working current |
≤90mA(18V DC) |
Working Voltage |
9~18V DC |
Response time |
≤1s |
Output current signal |
Constant current signal≥4.5mA |
Display |
digital display(LED display) |
The frequency of output signal |
200~1000Hz |
Load capacity of signal |
≥400Ω |
Alarm |
Sound and light alarm |
Ex Type |
Exd[ib] I |
