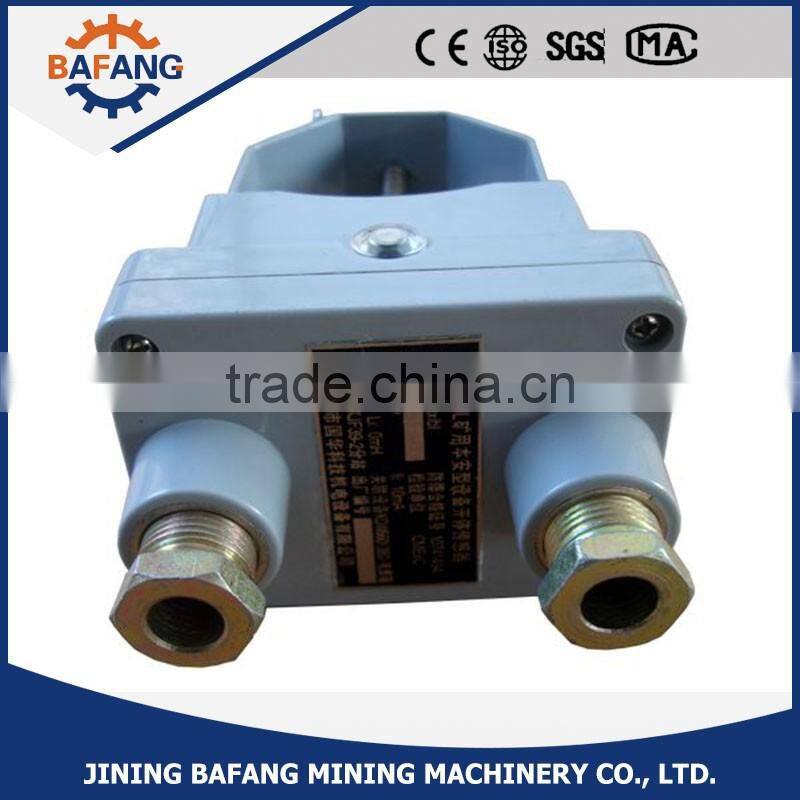

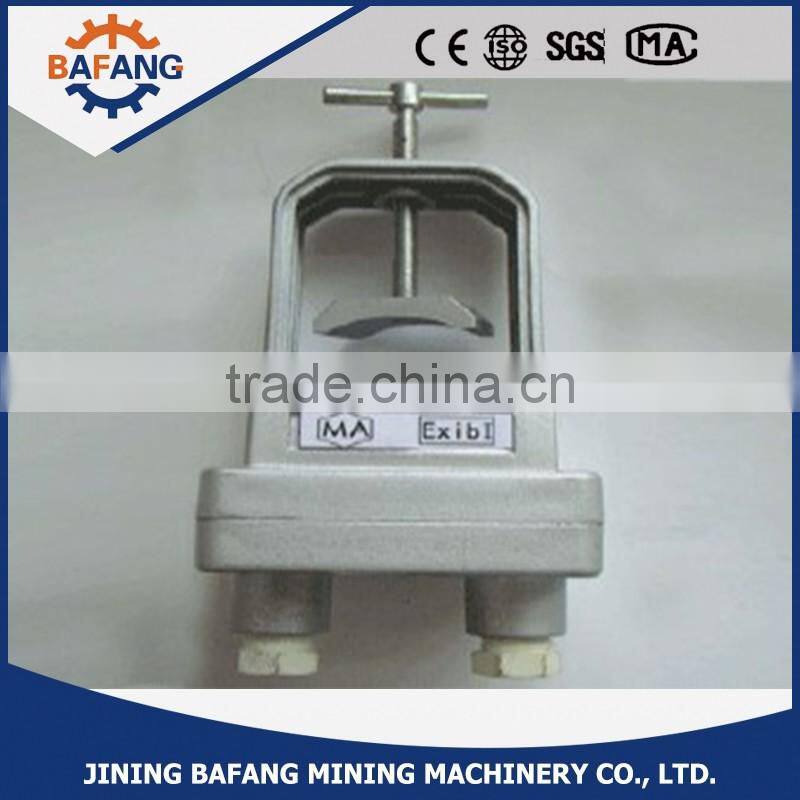

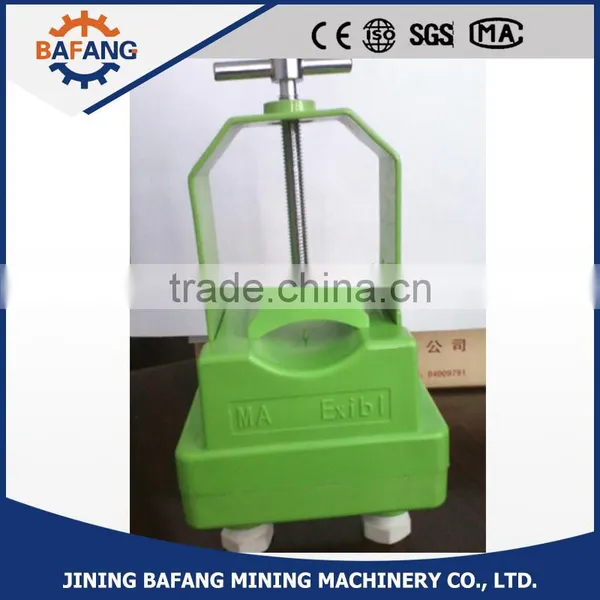

High quality Mining Switching Transducer GKT5L for export
Specifications
1. Long service life
2.Easy to operate sensor
3.High quality
parameters
Item |
Specification |
||
Measuring range(CH4) |
(0~4)% |
||
Measuring Error (CH4) |
0~1.00 |
More than1~3.00 |
More than 3.00~4.00 |
Less than ±0.1 |
±10% true value |
Less than±0.3 |
|
Accuracy |
0.01%CH4 |
||
Response Time |
Less than 20s |
||
Input Voltage |
DC (9~24)V |
||
Output Signal |
(200~1000)Hz |
||
Digital Signal |
2400bps |
||
Transmission Distance |
More than 2km |
||
Alarm Point |
continuous adjustable, set as 1.00% CH4 |
||
Alarm Mode |
Intermittent sound & light alarm |
||
Breaking Point |
continuous adjustable, set as 1.50% CH4 |
||
Sound Level |
More than 85dB |
||
Explosion Protection |
Exibd I |
||
Working Life |
More than 1year |
||
Display mode |
3 digital LED |
||
Dimensions |
270×120×50mm |
||
Weight |
1kg |
||
Related Equipment |
DJ4G-Z mainframe for coal mine fixed methane breaker |
||
