Product Details
| Place of Origin | Shandong, China | Brand Name | Bafang | |
| Model Number | S11-M Series | Usage | High Frequency | |
| Phase | Three | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description

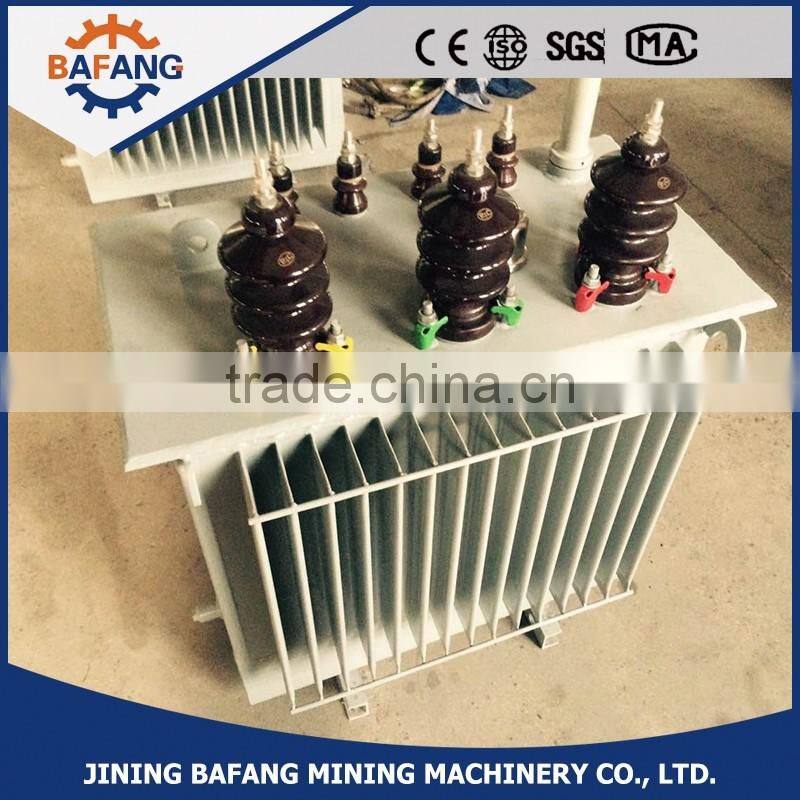

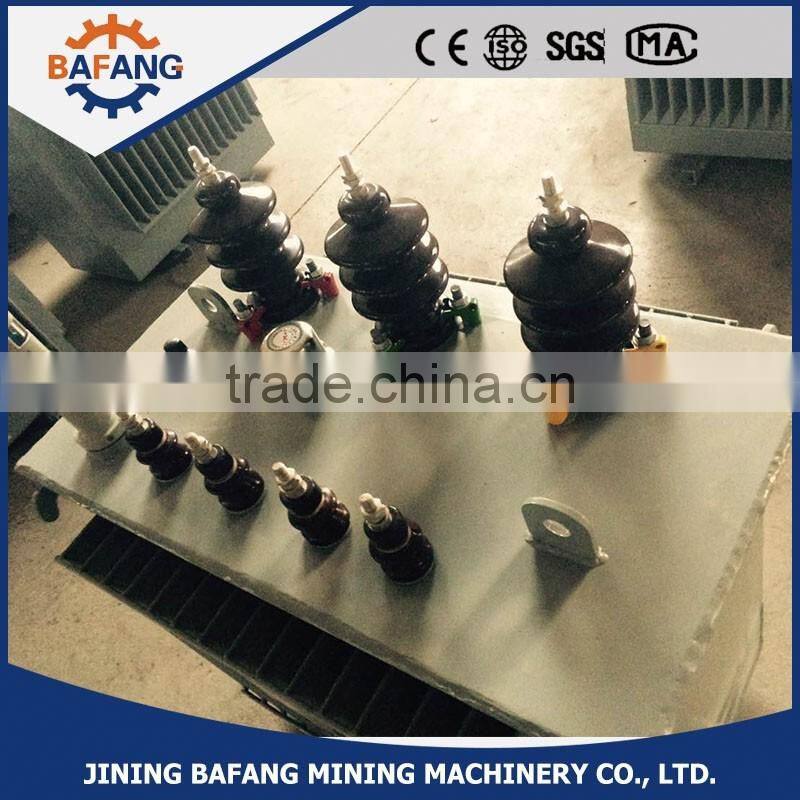

S11-M Series NLTC Three-phase Full-sealed 6.3kv 500kva Distribution Transformer
Product Description
Summary
The three-phase oil-immersed distribution transformer applies new type insulating structure and makes short-circuit resistance strong. The iron core is made of high-quality cold-rolled silicon-steel plate. High voltage winding group is made up of high quality oxygenfree copper lines and it adopts multilayered
drum type structure. All fasteners have been processed with special treatment to prevent them from loosening.
Reliable Structure
Spiral loops with longitudinal oil path to produce a better interior cooling effect; Improve the effectual support of the loop’s terminal face to strengthen the anti-short circuit electricity capability; New suspending structure and instrument-positioning frames to guarantee that the long distance transport and movement will be more reliable.
Excellent Materials
Oxygen-free copper lines of lower resistivity, which will become smoother and burr-free after series of additional surface treatment, so the load loss of our transformer is lower and the electric performance is better.
High-quality silicon-steel plates which are of lower unit loss, and the no-load of the transformers is lower.
High-quality wooden laminating insulation pieces, which won’t split or move even under the influence of short
circuit.Thoroughly filtrated transformer oil containing less water, gas and impurities, which makes our transformers work better.High quality rubber sealing material, which can prevent the transformers form aging or
leakage.
Transformer Service Condition
Altitude cannot exceed: 1000m
Highest ambient temperature: +40°C
Highest daily average temperature: +30°C
Highest annual average temperature: +20°C
Lowest outdoor temperature: -25°C
Parameter
Item NO. | Group Voltage & Tap Range | Connection Symbol | No-load power(W) | Load Loss(W) | No-load Current(%) | Short Circuit Impedance(%) | Weight(kg) | Gauge (mm) | Dimension | ||||
High Voltage(KV) | Tapping Variation | Low Voltage(V) | Body | Oil | Total Weight | ||||||||
S11-M-30/10 | 6 | 5% | 0.4 | Dyn11 | 100 | 600 | 0.8 | 4 | 200 | 83 | 322 | 400 | 738*752*913 |
S11-M-50/10 | 130 | 870 | 0.75 | 250 | 101 | 423 | 783*732*968 | ||||||
S11-M-63/10 | 150 | 1040 | 0.7 | 300 | 110 | 475 | 800*772*990 | ||||||
S11-M-80/10 | 180 | 1250 | 0.7 | 350 | 118 | 528 | 828*812*1008 | ||||||
S11-M-100/10 | 200 | 1500 | 0.65 | 400 | 132 | 619 | 550 | 865*844*1043 | |||||
S11-M-125/10 | 240 | 1800 | 0.65 | 450 | 146 | 760 | 895*834*1068 | ||||||
S11-M-160/10 | 280 | 2200 | 0.6 | 550 | 161 | 795 | 920*864*1138 | ||||||
S11-M-200/10 | 340 | 2600 | 0.6 | 600 | 171 | 878 | 950*894*1158 | ||||||
S11-M-250/10 | 400 | 3050 | 0.5 | 700 | 189 | 1028 | 1282*832*1195 | ||||||
S11-M-315/10 | 480 | 3650 | 0.45 | 800 | 233 | 1356 | 1292*852*1245 | ||||||
S11-M-400/10 | 570 | 4300 | 0.4 | 1000 | 260 | 1455 | 660 | 1398*858*1382 | |||||
S11-M-500/10 | 680 | 5150 | 0.4 | 1200 | 305 | 1740 | 1443*888*1383 | ||||||
S11-M-630/10 | 810 | 6200 | 0.4 | 4.5 | 1400 | 328 | 2029 | 820 | 1532*942*1417 | ||||
S11-M-800/10 | 980 | 7500 | 0.4 | 1600 | 405 | 2372 | 1592*1002*1492 | ||||||
S11-M-1000/10 | 1150 | 10300 | 0.3 | 1700 | 414 | 2632 | 176291202*1552 | ||||||
S11-M-1250/10 | 1360 | 12000 | 0.3 | 2050 | 478 | 3178 | 1882*1252*1657 | ||||||
S11-M-1600/10 | 1640 | 14500 | 0.3 | 2500 | 586 | 3855 | 1902*1292*1712 | ||||||
S11-M-2000/10 | 2150 | 18500 | 0.3 | 5.5 | 2895 | 870 | 4525 | 1070 | 2052*1300*1850 | ||||
S11-M-2500/10 | 2550 | 21500 | 0.2 | 3235 | 1085 | 5285 | 2285*1620*1980 | ||||||

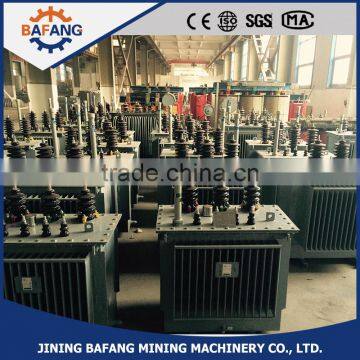

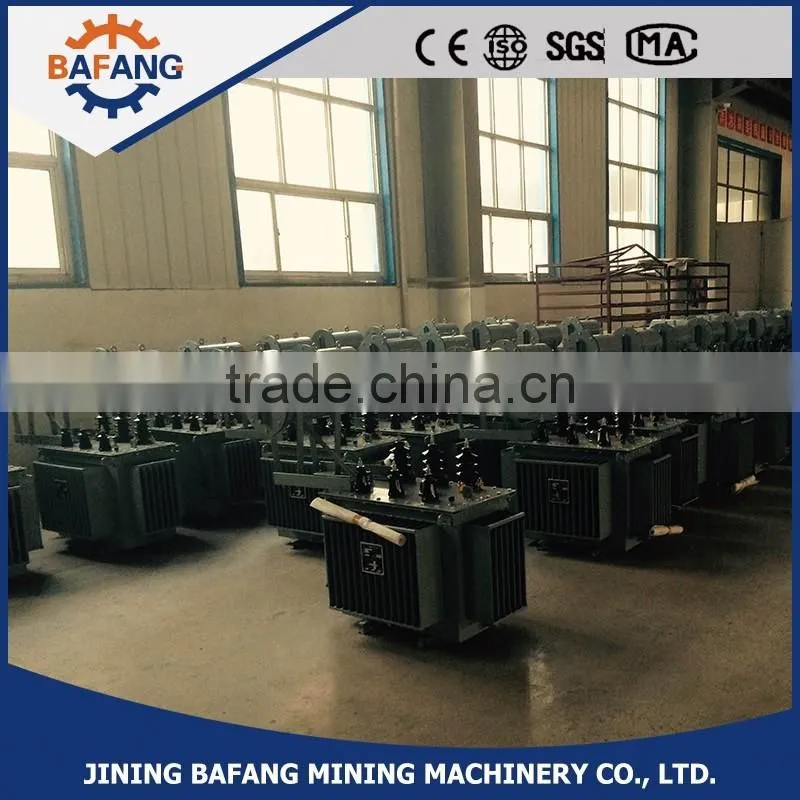

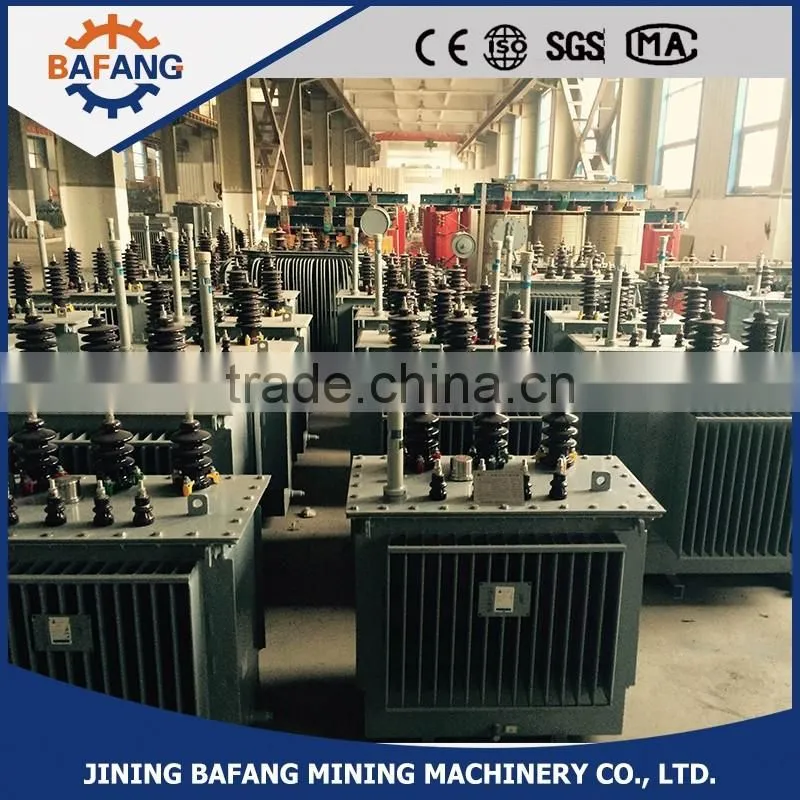

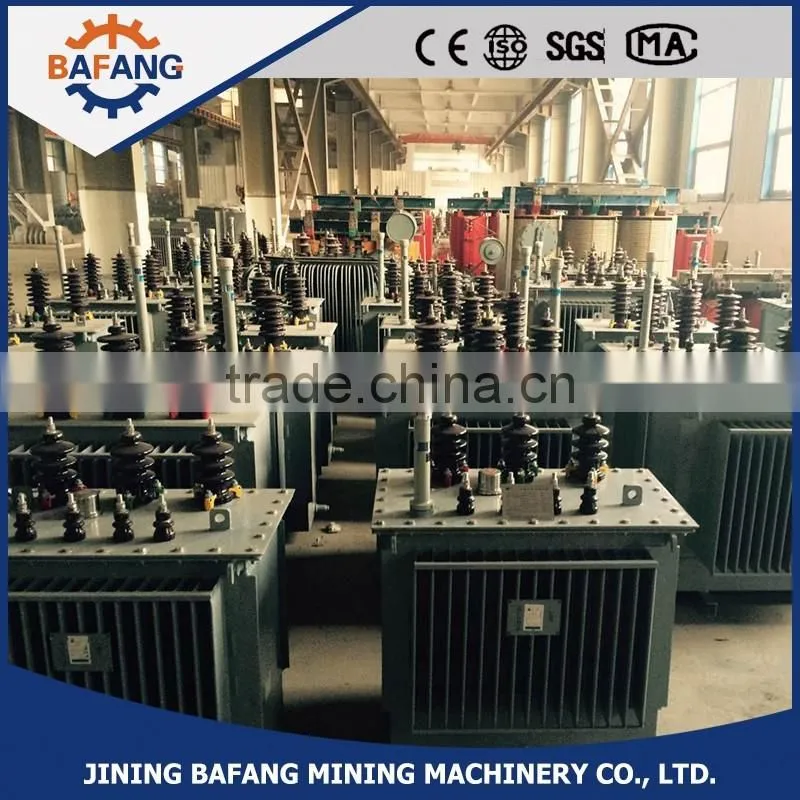

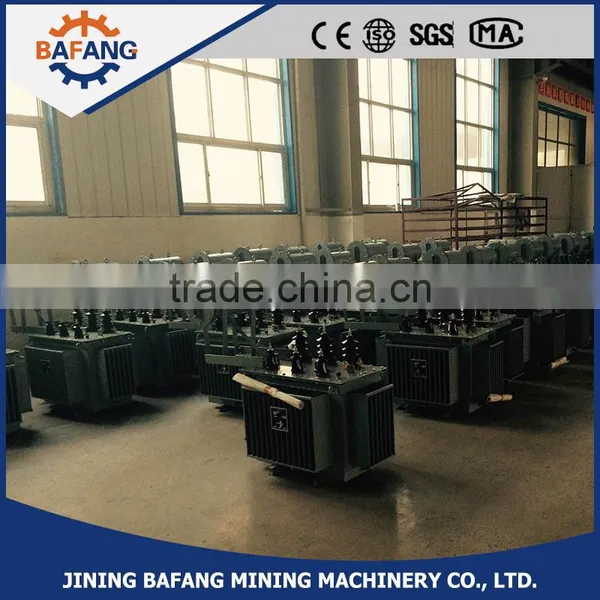

Figure Photos
