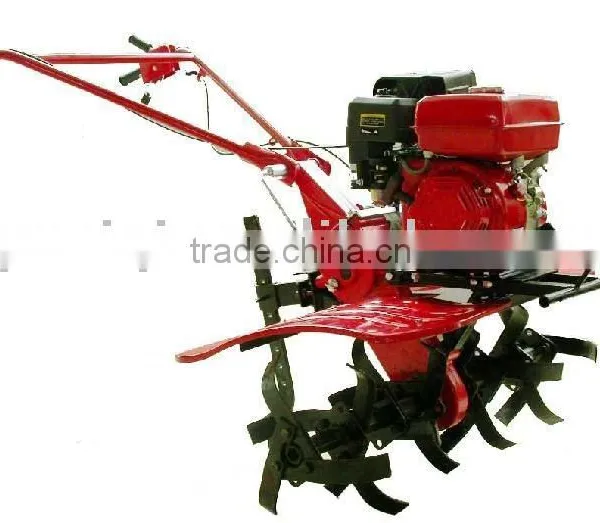

Farm Machinery

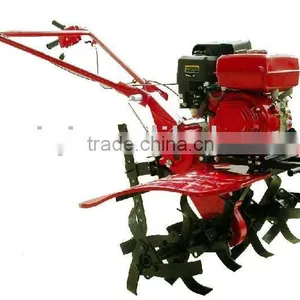

Farm Machinery thumbnail-1
Farm Machinery photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
MeiQi
Model Number:
MQ1WG4.0-110FC-Z
Contact Supplier Request Quote Chat Now
Chongqing Meiqi Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name MeiQi
Model Number MQ1WG4.0-110FC-Z

Specifications

easy to function

Engine
Engine type: Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Bore*stroke[mm(in)]: 78*62(3.07*2.44)
Dispiacement[ml(cu. In)]: 296(18.06)
Rated output power[kW(HP)/rpm]: 4.0(5.44)/3600
Fuel: 0#or-10#light diesel oil
Fuel tank volume[L(gal. )]: 3.5(0.77)
Fuel consumption rate[g(ml)/kW. H]: 285(339)
Lubrication oil volume[L(gal. )]: 1.1(0.24)
Air cleaner model: Semi-dry, oil bath, foam filter element
Engine PTO: Camshaft
Starting system: Recoil
Tiller
Gear shifting: -1, 0, 1, and 2
Driving model: Gear
Tilling width: 1100mm
Tilling depth: ≥100mm
Working efficiency: ≥400m2/h
Packing
Body size: 1770*975*940mm (tyre size: Φ400mm)
Packaging size: 1030*570*880mm
N. W /G. W: 111/115 kg (including tri-blades cutter)
20FT(set): 50.

Basic Parameter
Equipped engineOHV vertical cylinder,four stroke,air-cooled, direct injection,diesel engine
Bore*stroke[mm(in)]78×62(3.07×2.44)
Fuel0#or-10#light diesel oil
Starting systemrecoil
Driving modegear
Air cleaner modelsemi-dry, oil bath, foam filter element
Technic Parameter
Rated output power[kW(HP)/rpm]3.7(5.03)/3000,4.0(5.44)/3600
Dispiacement[ml(cu.in)]  296(18.06)
Rated output power[kW(HP)/rpm]4.0(5.44)/3600
Transmission shifting-1,0,1,and 2
Tilling depth(mm)1000-1100
Tilling depth(mm)150-250
Tiling efficiency(m2/h)>500
Aspect Parameter
Overall dimension1770*975*940
Full set weight (kg)115
